Brushless 11 Click is a compact add-on board that controls brushless DC motors with any MCU. This board features the A4931, a 3-phase brushless DC motor pre-driver from Allegro Microsystems. It drives six onboard N-channel power MOSFETs and supplies the motor with 8V up to 30V voltages. This pre-driver offers enable, direction, and brake inputs that can control motor functions and logic outputs for measuring motor rotation. This Click board™ makes the perfect solution for the development of 3-phase brushless DC motor drivers, motor control systems, robotics, industrial automation, electric vehicles, and more.
Brushless 11 Click is fully compatible with the mikroBUS™ socket and can be used on any host system supporting the mikroBUS™ standard. It comes with the mikroSDK open-source libraries, offering unparalleled flexibility for evaluation and customization. What sets this Click board™ apart is the groundbreaking ClickID feature, enabling your host system to seamlessly and automatically detect and identify this add-on board.
This product is no longer in stock
Availability date:

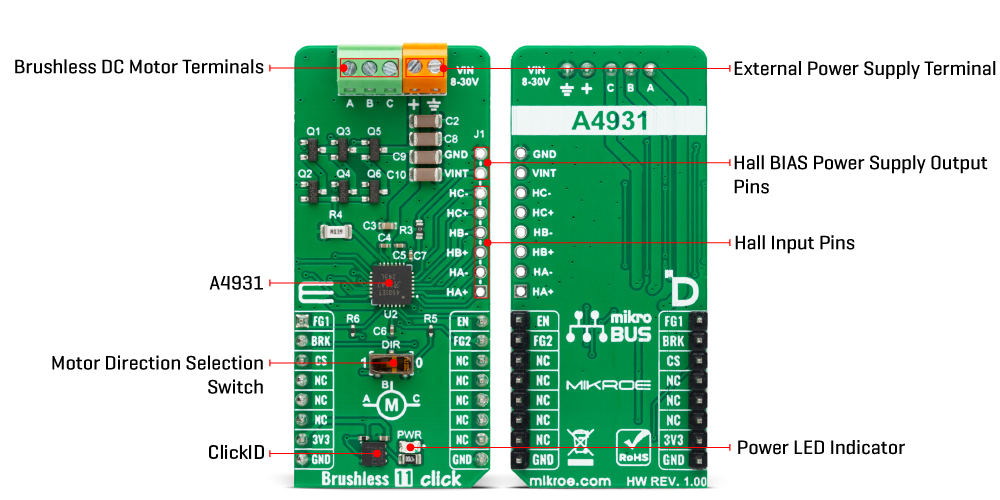

Brushless 11 Click is based on the A4931, a 3-phase brushless DC motor pre-driver from Allegro Microsystems. It uses six external N-channel MOSFETs to drive a 3-phase BLDC motor. The internal charge pump generates a supply to drive the high-side MOSFETs while the voltage is internally monitored. In case of a fault condition, the device outputs are disabled. The pre-driver features several protection mechanisms, including fault shutdown, overvoltage protection, overtemperature protection, hall state reporting, and mock detect function.
The A4931 also features the HBIAS function, which provides a power supply voltage of 7.5V with a current limited to 30mA. This referent voltage powers the logic sections of the pre-driver and the external Hall elements. These elements can be connected over the 6-pin header, labeled as positive and negative A, B, and C channel inputs. To set the motor direction, this Click board™ uses a DIR switch. Set the position 1 for rotating forward and 0 position for rotating reverse.
Brushless 11 Click is controlled by the host MCU through GPIO logic states. The enable input terminal on pin EN is used for external PWM, with typically PWM frequencies in the 20 to 30kHz range. To use brakes and stop the motor, you should write a logic LOW on the BRK pin, which activates the Brake mode. This input overrides the enable input, and also the lock detect function. Both the EN and BRK pins are pulled up. There are FG1 and FG2 pins that let you accurately measure motor rotation.
This Click board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. Also, it comes equipped with a library containing functions and an example code that can be used as a reference for further development.
Type
Brushless
Applications
Can be used for the development of 3-phase brushless DC motor drivers, motor control systems, robotics, industrial automation, electric vehicles, and more
On-board modules
A4931 - 3-phase brushless DC motor pre-driver from Allegro Microsystems
Key Features
Drives 6 N-channel MOSFETs, synchronous rectification for low power dissipation, internal UVLO and thermal shutdown circuitry, Hall element inputs, PWM current limiting, FG outputs, lock detect protection, overvoltage protection, and more
Interface
GPIO
Feature
ClickID
Compatibility
mikroBUS™
Click board size
L (57.15 x 25.4 mm)
Input Voltage
3.3V
This table shows how the pinout on Brushless 11 Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
Label | Name | Default | Description |
---|---|---|---|
LD1 | PWR | - | Power LED Indicator |
SW1 | DIR | Right | Motor Direction Selection 1/0: Left position 1, Right position 0 |
Description | Min | Typ | Max | Unit |
---|---|---|---|---|
Supply Voltage | - | 3.3 | - | V |
External Power Supply | 8 | - | 30 | V |
Maximum Output Current | - | - | 4 | A |
We provide a library for the Brushless 11 Click as well as a demo application (example), developed using MIKROE compilers. The demo can run on all the main MIKROE development boards.
Package can be downloaded/installed directly from NECTO Studio Package Manager(recommended), downloaded from our LibStock™ or found on Mikroe github account.
Library Description
This library contains API for Brushless 11 Click driver.
Key functions
brushless11_get_fg1_pin
Brushless 11 get FG1 pin state function.
brushless11_set_brake
Brushless 11 set motor brake state function.
brushless11_set_speed
Brushless 11 set motor speed.
Example Description
This example demonstrates the use of the Brushless 11 Click board™ by driving the motor at different speeds.
void application_task ( void )
{
log_printf( &logger, " Motor brake is off rn" );
brushless11_set_brake( &brushless11, BRUSHLESS11_BRAKE_OFF );
for ( uint8_t speed_cnt = 10; speed_cnt <= 100; speed_cnt += 10 )
{
brushless11_set_speed( &brushless11, speed_cnt );
log_printf( &logger, " Speed is: %d%% rn", ( uint16_t ) speed_cnt );
Delay_ms( 1000 );
}
log_printf( &logger, " Motor brake is on rn" );
brushless11_set_brake( &brushless11, BRUSHLESS11_BRAKE_ON );
Delay_ms( 2000 );
}
The full application code, and ready to use projects can be installed directly from NECTO Studio Package Manager(recommended), downloaded from our LibStock™ or found on Mikroe github account.
Other Mikroe Libraries used in the example:
Additional notes and informations
Depending on the development board you are using, you may need USB UART click, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MIKROE compilers.
This Click board™ is supported with mikroSDK - MIKROE Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
For more information about mikroSDK, visit the official page.
NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
