Bluetooth Click is a compact add-on board that provides Bluetooth connectivity for any embedded application. This board features the RN-41, a Class 1 Bluetooth module from Microchip. It is a fully qualified Bluetooth version 2.1 module and supports version 2.1 + Enhanced Data Rate (EDR). With an onboard chip antenna and working on 2402 – 2480MHz frequencies, it can achieve data transmission in distances of up to 100m. This Click board™ makes the perfect solution for the development of low-energy Bluetooth® applications, high interference environments, connectionless scenarios, and long-range applications.
Bluetooth Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
Suggested substitutes:
This product is no longer in stock
Availability date:
OFF

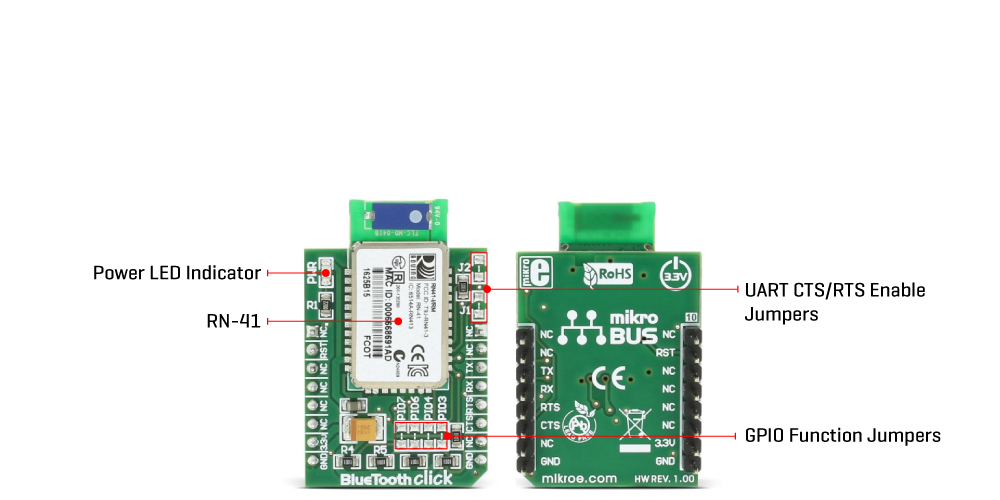

Bluetooth Click is based on the RN-41, a Class 1 Bluetooth module from Microchip. The auto-discovery/pairing on this module does not require software configuration. It has a 15dBm output transmitter with -80dBm of typical receive sensitivity for transmitting data using FHSS/GFSK modulation on 79 channels and at 1MHz intervals. The 3Mbps data rate communication is secured with 128-bit encryption, with error correction, which guarantees packet delivery. The 3Mbps data rate is a maximum that can be achieved in a burst in HCI mode, while the 1.5Mbps is sustained.
To communicate with the host MCU, the Bluetooth Click uses the UART interface with commonly used UART RX and TX as its default communication protocol. It can operate at baud rate speeds from 1200bps to 921Kbps, while non-standard baud rates can be programmed. The hardware flow control pins UART CTS/RTS are disabled and can be enabled by soldering J1 and J2 jumpers. The RN-41 module can be programmed over the UART interface of the mikroBUS™ socket with a simple ASCI command language similar to the Hayes AT protocol. The module can be reset via the RST pin with active LOW.
This Click board™ features four more jumpers labeled PIO3, PIO4, PIO6, and PIO7. The auto-discovery function can be enabled by soldering jumper PIO3. To set the factory default values, you should solder the PIO4 jumper, and this feature is critical when the module has been misconfigured. The auto-master mode can be set by soldering the PIO6 jumper; the standard application runs on SPP/DUN Master and Slave. The firmware can set the baud rate but also can be forced to 9600bps by soldering the PIO7 jumper.
This Click board™ can only be operated with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. However, the Click board™ comes equipped with a library containing functions and an example code that can be used, as a reference, for further development.
Type
BT/BLE
Applications
Can be used for the development of low-energy Bluetooth® applications, high-interference environments, connectionless scenarios, and long-range applications
On-board modules
RN-41 - Class 1 Bluetooth module from Microchip
Key Features
Bluetooth 2.1, supports 2.1 + Enhanced Data Rate (EDR), low power consumption, FHSS/GFSK modulation, 79 channels at 1Mbps intervals, ASCI commands support, range of up to 100m, data rate of up to 3Mbps, and more
Interface
GPIO,UART
Feature
No ClickID
Compatibility
mikroBUS™
Click board size
M (42.9 x 25.4 mm)
Input Voltage
3.3V
Category
Click Boards
This table shows how the pinout on Bluetooth Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
Label | Name | Default | Description |
---|---|---|---|
LD1 | PWR | - | Power LED Indicator |
J1 | J1 | Unpopulated | UART RTS Selection |
J2 | J2 | Unpopulated | UART CTS Selection |
J3 | PIO3 | Unpopulated | Auto-Discovery Selection |
J4 | PIO4 | Unpopulated | Factory Default Reset Selection |
J4 | PIO6 | Unpopulated | Auto-Master Mode Selection |
J5 | PIO7 | Unpopulated | 9600bps Baud Rate Selection |
Description | Min | Typ | Max | Unit |
---|---|---|---|---|
Supply Voltage | - | 3.3 | - | V |
Operating Frequency Range | 2402 | - | 2480 | MHz |
Distance Range | - | - | 100 | m |
Data Rate | - | - | 3 | Mbps |
Output Power | - | - | 18 | dBm |
We provide a library for the Bluetooth Click as well as a demo application (example), developed using MIKROE compilers. The demo can run on all the main MIKROE development boards.
Package can be downloaded/installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on Mikroe github account.
Library Description
This library contains API for Bluetooth Click driver.
Key functions
The function enter the command mode of the RN-41 Bluetooth module on Bluetooth Click board.
The function set the authentication value to the RN-41 Bluetooth module on Bluetooth Click board.
The function set security pin code string to the RN-41 Bluetooth module on Bluetooth Click board.
Example Description
This example reads and processes data from Bluetooth clicks.
void application_task ( void )
{
bluetooth_process( "AOK" );
}
The full application code, and ready to use projects can be installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on Mikroe github account.
Other Mikroe Libraries used in the example:
Additional notes and informations
Depending on the development board you are using, you may need USB UART click, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MIKROE compilers.
This Click board™ is supported with mikroSDK - MIKROE Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
For more information about mikroSDK, visit the official page.
