Rotary RGB Click featuring 16 individual RGB LEDs and a high-quality rotary encoder

Create interactive controls, visual effects, and precise position displays with WS2812B-2020 and EC12D1564402



Rotary RGB Click is a compact add-on board for creating stunning visual effects and receive accurate position readings through a user-friendly rotary knob interface. This board features 16 individual RGB LEDs (WS2812B-2020) from Worldsemi and a high-quality rotary encoder (EC12D1564402) from ALPS.



KEY FEATURES:



  • Low driving voltage for efficient power consumption
  • High brightness for excellent visibility
  • Superior consistency for uniform color rendering
  • Precise 15-pulse incremental encoding for reliable rotational tracking
  • Integrated push-button functionality for additional user input
  • Ensures noise-free operation of the rotary encoder switch
  • Offers compatibility with both 3.3V and 5V systems for broader usability



APPLICATIONS:


  • Visual feedback systems: Display information through color and animation.
  • Interactive user interfaces: Provide a user-friendly way to control functions through the rotary knob and button.
  • Precise position control applications: Accurately track knob rotations for precise control in your project.
  • Customizable lighting projects: Create unique and dynamic lighting effects with its programmable LEDs.


EmbeddedWiki



Find hundreds of ready-to-use embedded projects featuring this Click board™ on EmbeddedWiki! Jumpstart new designs and simplify your design cycle with by using world's largest embedded projects platform with 1M+ ready-to-use projects.

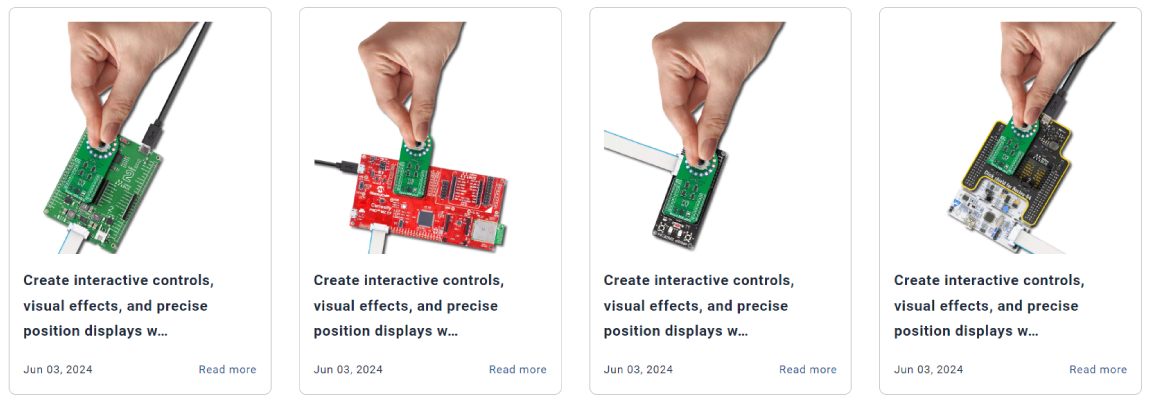

Hundreds of ready-for-use-projects on EmbeddedWiki with Rotary RGB Click


For more information about Rotary RGB Click visit the official product page. Don't forget to come back tomorrow at 10 AM CET, and take a look at our next product release.
