DAC 17 Click based on a 12-bit octal-channel voltage-output DAC

Published: 23/05/2024 | Post categories: Click boards

| Views:1024

DAC 17 Click based on a 12-bit octal-channel voltage-output DAC

Translate digital data into the analog world using the DAC7558.



DAC 17 Click is a compact add-on board designed for applications requiring precise control of analog voltage outputs. This board uses the Texas Instruments DAC7558, a high-performance 12-bit, octal-channel digital-to-analog converter (DAC).



KEY FEATURES:



  • Octal voltage-output channels: Control of eight independent analog voltage outputs.
  • 12-bit resolution: Accurate digital-to-analog conversion for a wide range of applications.
  • Flexible power options: Accepts internal or external power supply with voltage ranging from 2.7V to 5.5V.
  • Fast settling time: Ensures quick and efficient output updates.
  • Rail-to-rail output amplifiers: Maximizes the usable output voltage range.
  • Simultaneous or Sequential output update: Provides control over the update strategy for optimal performance.



APPLICATIONS:



  • Fine-tune the amplification and baseline voltage of analog signals.
  • Create adjustable voltage and current outputs for powering devices or generating test signals.
  • Allows for precise control over signal strength, making it ideal for weakening signals before they reach sensitive components.
  • Integrates easily into industrial settings, offering digital control over various parameters like temperature, pressure, or flow.


EmbeddedWiki



Find hundreds of ready-to-use embedded projects featuring this Click board™ on EmbeddedWiki! Jumpstart new designs and simplify your design cycle with by using world's largest embedded projects platform with 1M+ ready-to-use projects.

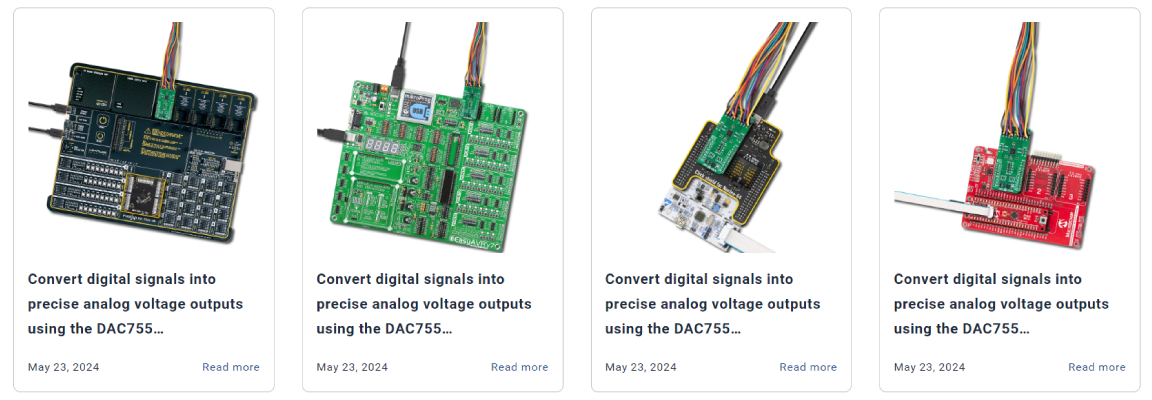

Hundreds of ready-for-use-projects on EmbeddedWiki with dac 17 Click


For more information about DAC 17 Click visit the official product page. Don't forget to come back tomorrow at 10 AM CET, and take a look at our next product release.
