BLE P Click is a compact add-on board with a low-energy Bluetooth transceiver designed for operation in the peripheral role. This board features the nRF8001, a Bluetooth 4.0 transceiver from Nordic Semiconductor. The nRF8001 combines Radio, Link Layer, and Host into a single product with built-in stack features such as low-energy PHY layer, link layer slave, low-energy host, and more. It also has a PCB trace antenna designed for the 2400-2483.5 MHz frequency band that allows a maximum range of 40 meters in open space. This Click board™ is suitable for general data transmission applications such as thermometers, blood pressure monitors, weight scales, toys, pet supplies, IoT sensor nodes, and more.
BLE P Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
This product is no longer in stock
Availability date:

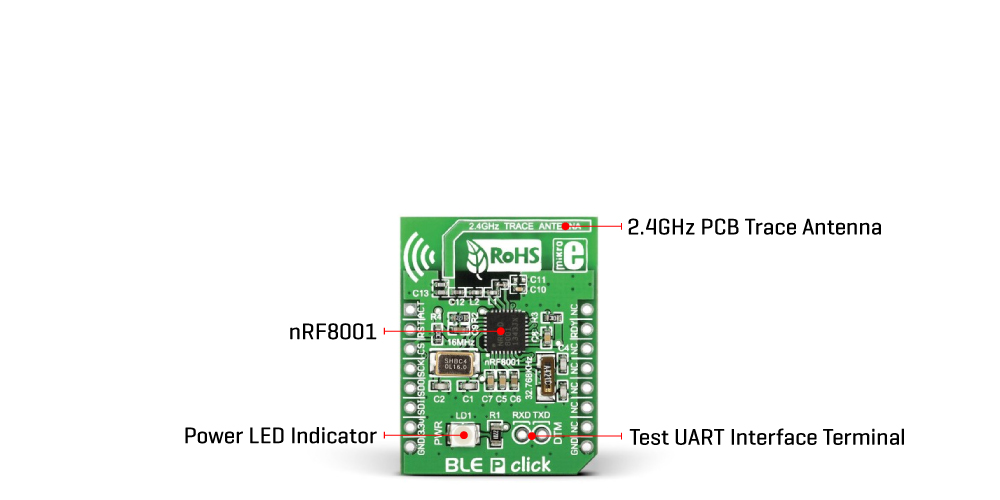

BLE P Click is based on the nRF8001, a Bluetooth 4.0 transceiver from Nordic Semiconductor. The nRF8001 has an on-chip non-volatile memory for storing service configuration used through an integrated Application Controller Interface (ACI), a logical interface between this IC and the application. This storage is used to select and combine the necessary services, thus reducing the application's requirements on the host MCU for handling the real-time operations of the Bluetooth low-energy communication protocol. In addition, the nRF8001 includes a power supply voltage monitor and temperature sensor that further reduces the requirements of the application controller and, thus, the number of the board's components.
BLE P Click uses a standard SPI serial interface to establish communication between ACI and the host MCU over the mikroBUS™ socket. The nRF8001 can receive new data over the air at any time, but it can also be busy processing connection events or new data. For the best possible indication of this state, beside an SPI CS pin, there is an RDY pin that serves as an ACI-ready indication (handshaking, active low). This Click board™ also features an RST pin for resetting the nRF8001 and an ACT pin, an optional output signal (ACTIVE) activated before the radio becomes active. This timing signal enables controlling the peak current drain of your application, avoiding overload of the power supply, thus making this Click board™ a perfect solution for projects that require work on small battery capacity. A separate UART interface on RXS/TXD pins of unpopulated terminal gives access to the Bluetooth low energy Direct Test Mode (DTM), allowing testing RF parameters of the BLE P Click’s radio design.
If you want to get started with BLE, check out our BLE Android app that works on all devices with hardware and software support for BLE. All you have to do is to make sure you use it on Android devices.
This Click board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. However, the Click board™ comes equipped with a library containing functions and an example code that can be used, as a reference, for further development.
Type
BT/BLE
Applications
Can be used for general data transmission applications such as thermometers, blood pressure monitors, weight scales, toys, pet supplies, IoT sensor nodes, and more
On-board modules
nRF8001 - Bluetooth 4.0 transceiver from Nordic Semiconductor
Key Features
Low power consumption, BLE PHY, link layer features, GAP features, main SPI interface, an additional UART pins (RXD/TXD) for Direct Test Mode interface, RF activity indicator, security manager, and more
Interface
GPIO,SPI
Feature
No ClickID
Compatibility
mikroBUS™
Click board size
S (28.6 x 25.4 mm)
Input Voltage
3.3V
This table shows how the pinout on BLE P Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
Label | Name | Default | Description |
---|---|---|---|
LD1 | PWR | - | Power LED Indicator |
Description | Min | Typ | Max | Unit |
---|---|---|---|---|
Supply Voltage | - | 3.3 | - | V |
Operating Frequency Range | 2402 | - | 2480 | MHz |
On-air Data Rate | - | 1 | - | Mbps |
NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
