BATT Boost Click

How does it work?

BATT Boost Click is based on the NBM5100A, a coin-cell battery life booster with adaptive power optimization from Nexperia. It contains an intelligent learning algorithm and two stages of high-efficiency DC-DC conversion. The first stage, DC-DC conversion, transfers energy from the lithium battery to a capacitive storage element at a low constant current. When charged, a second DC-DC conversion cycle utilizes this stored energy to supply a regulated voltage with high pulse load current capability on the VDH output terminal. The battery is never directly subjected to large load pulse currents, resulting in a longer, more predictable battery lifetime.

The NBM5100A has a programmable constant battery load current of 2mA up to 16mA. It also features an ultra-low standby current, integrated fuel gauge, high peak power efficiency, low pulse output current, protection against battery voltage dips, and more. The capacitor balancing IO of the NBM1500A is connected to two supercapacitors and is intended for applications utilizing series-connected supercapacitors requiring voltage balancing. The input supply source of the NBM5100A can be selected from the 3.3V rail of the mikroBUS™ socket or the coin battery itself. The selection can be made over the VBT SEL jumper.

BATT Boost Click uses a standard 2-wire I2C interface to communicate with the host MCU, supporting a clock frequency of up to 1MHz. The I2C address can be selected over the ADDR SEL jumper. The auto mode utilizes the start pin (ON) for one cycle. There are two ways to define the end of the active state in auto mode: short pulse on the ON pin and long pulse on the ON pin. The NBM1500A will interrupt the host MCU when it is ready over the RDY pin.

This Click board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. Also, it comes equipped with a library containing functions and an example code that can be used as a reference for further development.

Specifications

Pinout diagram

This table shows how the pinout on BATT Boost Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes	Pin					Pin	Notes
	NC	1	AN	PWM	16	NC
Auto Mode Control	ON	2	RST	INT	15	RDY	Ready Interrupt
ID COMM	CS	3	CS	RX	14	NC
	NC	4	SCK	TX	13	NC
	NC	5	MISO	SCL	12	SCL	I2C Clock
	NC	6	MOSI	SDA	11	SDA	I2C Data
Power Supply	3.3V	7	3.3V	5V	10	NC
Ground	GND	8	GND	GND	9	GND	Ground

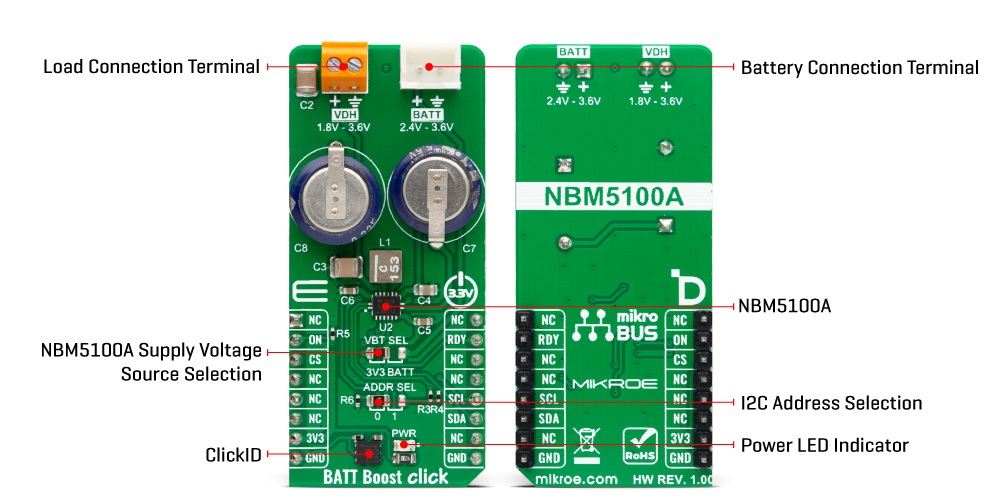

Onboard settings and indicators

BATT Boost Click electrical specifications

Software Support

We provide a library for the BATT Boost Click as well as a demo application (example), developed using MIKROE compilers. The demo can run on all the main MIKROE development boards.

Package can be downloaded/installed directly from NECTO Studio Package Manager(recommended), downloaded from our LibStock™ or found on Mikroe github account.

Library Description

This library contains API for BATT Boost Click driver.

Key functions

• battboost_get_vcap This function is used to read the storage capacitor voltage status.

• battboost_set_op_mode This function is used to select the desired operating mode of the device.

• battboost_get_status This function reads the the status information of low battery input, capacitor input voltage early warning, VDH output alarm and ready state.

Example Description

This library contains API for the BATT Boost Click driver. This driver provides the functions to controle battery energy management device designed to maximize usable capacity from non-rechargeable.

void application_task ( void )
 {
     float vcap = 0;
     uint8_t status = 0;
     uint32_t chenergy = 0;

     if ( BATTBOOST_STATUS_READY != battboost_get_ready( &battboost ) )
     {
         if ( BATTBOOST_OK == battboost_set_op_mode( &battboost, BATTBOOST_OP_MODE_CHARGE ) )
         {
             log_printf( &logger, "nOperating state: Chargern" );
         }

         if ( BATTBOOST_OK == battboost_get_vcap( &battboost, &vcap ) )
         {
             log_printf( &logger, " Capacitor Voltage: %.2f V rn", vcap );
         }

         if ( BATTBOOST_OK == battboost_get_chenergy( &battboost, &chenergy ) )
         {
             log_printf( &logger, " Charge cycle count: %lu rn", chenergy );
         }
         Delay_ms( 1000 );
     }
     else
     {
         if ( BATTBOOST_OK == battboost_set_op_mode( &battboost, BATTBOOST_OP_MODE_ACTIVE ) )
         {
             log_printf( &logger, "nOperating state: Activern" );
             if ( BATTBOOST_OK == battboost_get_vcap( &battboost, &vcap ) )
             {
                 log_printf( &logger, " Capacitor Voltage: %.2f V rn", vcap );
             }

             if ( BATTBOOST_OK == battboost_get_status( &battboost, &status ) )
             {
                 if ( BATTBOOST_STATUS_EW & status )
                 {
                     log_printf( &logger, " Status: Early warning.rn" );
                 }

                 if ( BATTBOOST_STATUS_ALRM & status )
                 {
                     log_printf( &logger, " Status: Low output voltage in the Active state.rn" );
                 }
             }
         }
         Delay_ms( 1000 );
     }
 }

The full application code, and ready to use projects can be installed directly from NECTO Studio Package Manager(recommended), downloaded from our LibStock™ or found on Mikroe github account.

Other Mikroe Libraries used in the example:

• MikroSDK.Board
• MikroSDK.Log
• Click.BATTBoost
