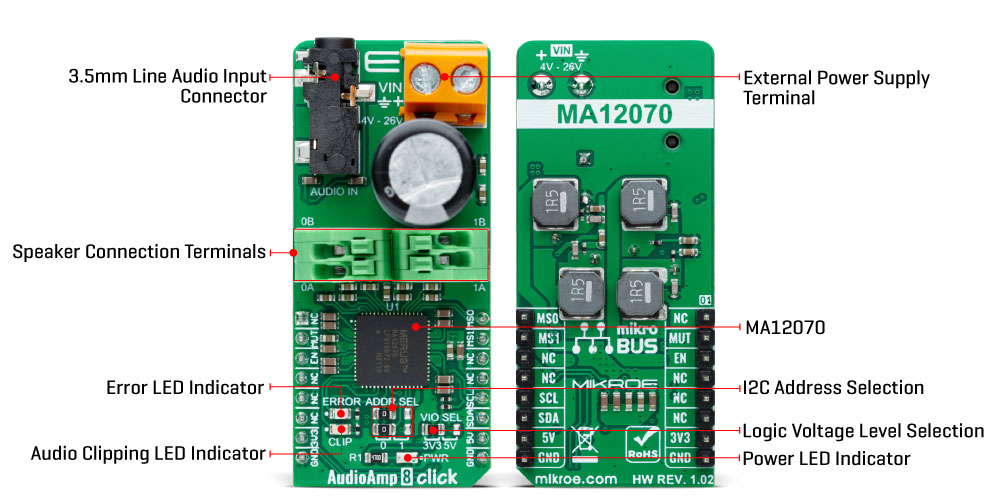

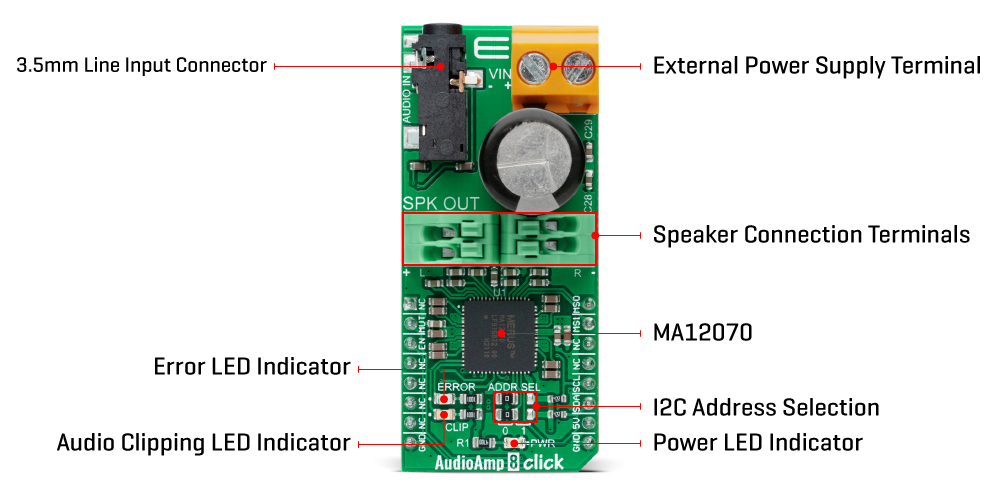

AudioAmp 8 Click is a compact add-on board that reproduces input audio signal at sound-producing output elements, with desired volume and power levels. This board features the MA12070, a super-efficient audio power amplifier from Infineon Technologies. This I2C configurable audio amplifier is based on proprietary multi-level switching technology, enabling low power loss during operation. It supports a 4-26V supply voltage range, allowing it to be used in many applications. Besides, it is equipped with protection features, allowing a reliable operation. This Click board™ is suited for various types of consumer audio equipment applications.
This product is no longer in stock
Availability date: 06/22/2022
Type Amplifier Applications Can be used for various types of consumer audio equipment applications On-board modules MA12070 - super-efficient audio power amplifier from Infineon Technologies Key Features Proprietary multi-level switching technology, high power efficiency, high audio performance, low power consumption, flexible output stage configuration, protection feature, and more Interface I2C Compatibility mikroBUS Click board size L (57.15 x 25.4 mm) Input Voltage 5V,External
| Type | Amplifier |
NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
