Audio DAC Click is a compact add-on board perfect for upgrading your audio equipment. This board features the PCM5142, a 32-bit 384kHz audio stereo DAC with the DIR9001 digital audio receiver from Texas Instruments. The DIR9001 can receive 24-bit/96kHz signals at the highest via S/PDIF optical cable and complies with various digital audio standards, like IEC60958-3, JEITA CPR-1205, AES3, and EBUtech3250. The DIR9001's output is then processed via a stereo audio DAC, the PCM5142, with the latest generation of TI's advanced segment-DAC architecture to achieve excellent dynamic performance, detailed heights, and an exceptionally good sound stage. This Click board™ is suitable for portable electronics and audio systems, representing a perfect solution for multimedia systems, satellite radio, CD and DVD players, and more.
Audio DAC Click is fully compatible with the mikroBUS™ socket and can be used on any host system supporting the mikroBUS™ standard. It comes with the mikroSDK open-source libraries, offering unparalleled flexibility for evaluation and customization. What sets this Click board™ apart is the groundbreaking ClickID feature, enabling your host system to seamlessly and automatically detect and identify this add-on board.
This product is no longer in stock
Availability date:
Audio DAC Click is based on a combination of DIR9001 and PCM5142, a digital audio interface receiver and audio stereo DAC from Texas Instruments, suitable for upgrading your audio equipment. The DIR9001 audio receiver can accept signals up to a 108kHz sampling rate at the highest, 24-bit data word, biphase-encoded signal, and complies with the jitter specification IEC60958-3, JEITA CPR1205 (Revised version of EIAJ CP-1201), AES3, and EBUtech3250. These signals are brought to the DIR9001 via an onboard fiber optic S/PDIF connector, better known as Sony/Philips digital interface format, a digital audio interface often used in consumer audio equipment. After receiving the signals, the DIR9001 forwards them for further processing by the stereo audio DAC, the PCM5142, also from Texas Instruments.
The PCM5142 has a fully programmable miniDSP core, allowing developers to integrate filters, dynamic range controls, custom interpolators, and other differentiating features into their applications. It uses the latest generation of TI's advanced segment-DAC architecture to achieve excellent dynamic performance, detailed heights, and an exceptionally good sound stage. Compared with existing DAC technology, the PCM5142 offers up to 20dB lower out-of-band noise, reducing EMI and aliasing in downstream amplifiers/ADCs, accept industry-standard audio data formats with 16- to 32-bit data, and sample rates up to 384kHz. After stereo DAC processing, the output audio signal is available to users for further use on the 3.5mm-line output audio jack, making it suitable for various multimedia systems, satellite radio, CD and DVD players, and more.
The PCM5142 communicates with MCU using the standard I2C 2-Wire data transmission protocol that supports Standard-Mode (100 kHz) and Fast-Mode (400 kHz) operations. In addition to communication pins, this board has several additional functions, providing users with application flexibility. Besides the I2C signals, the mikroBUS™ also has an auto-mute function routed to the MUT pin on the mikroBUS™ socket to mute the device upon intentional or unintentional power loss, as well as one user-configurable general-purpose pin, the IO4 pin of the mikroBUS™ socket. The onboard button labeled as RST can reset the DIR9001 audio receiver.
This Click board™ can only be operated with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. However, the Click board™ comes equipped with a library containing functions and an example code that can be used as a reference for further development.
Type
Speakers
Applications
Can be used for portable electronics and audio systems, such as multimedia systems, satellite radio, CD and DVD players, and more
On-board modules
PCM5142 - 32-bit 384kHz audio stereo DAC from Texas Instruments
DIR9001 - digital audio receiver from Texas Instruments
Key Features
24-bit/96kHz signals at the highest via S/PDIF optical cable, complies with various digital audio standards, latest generation of TI's advanced segment-DAC architecture, excellent dynamic performance, detailed heights, and an exceptionally good sound stage, soft-mute, and more
Interface
I2C
Feature
ClickID
Compatibility
mikroBUS™
Click board size
L (57.15 x 25.4 mm)
Input Voltage
3.3V

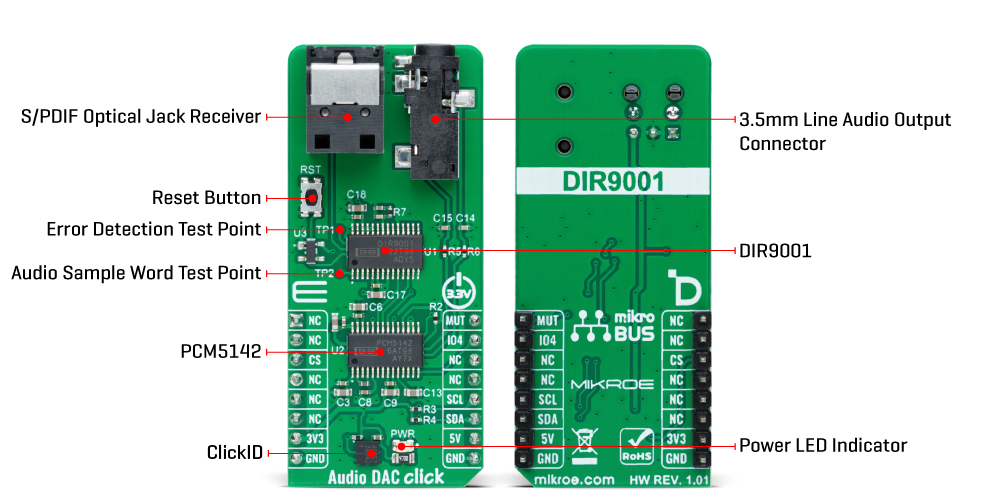

This table shows how the pinout on Audio DAC Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
Label | Name | Default | Description |
---|---|---|---|
LD1 | PWR | - | Power LED Indicator |
T1 | RST | - | Reset Button |
Description | Min | Typ | Max | Unit |
---|---|---|---|---|
Supply Voltage | - | 3.3 | - | V |
Audio Receiver Frequency Range | 28 | - | 108 | kHz |
We provide a library for the Audio DAC Click as well as a demo application (example), developed using Mikroe compilers. The demo can run on all the main Mikroe development boards.
Package can be downloaded/installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on Mikroe github account.
Library Description
This library contains API for Audio DAC Click driver.
Key functions
audiodac_get_gpio4_pin
This function returns the GPIO4 pin logic state. The GPIO4 pin is mapped to auto mute flag output for both L and R channels by default.
audiodac_volume_control
This function sets the volume level for the selected output channel.
Example Description
This example demonstrates the use of Audio DAC Click board™ by controling the volume level of both output channels.
void application_task ( void )
{
static uint8_t volume = AUDIODAC_VOLUME_MUTE;
if ( audiodac_get_gpio4_pin ( &audiodac ) )
{
log_printf ( &logger, " Auto mute flag (both L and R channels are auto muted)rn" );
// Wait until the channels are auto unmuted, i.e. until a valid digital signal is received
while ( audiodac_get_gpio4_pin ( &audiodac ) );
}
if ( AUDIODAC_OK == audiodac_volume_control ( &audiodac, AUDIODAC_CHANNEL_BOTH, volume ) )
{
log_printf ( &logger, "rn Volume: " );
if ( AUDIODAC_VOLUME_MUTE == volume )
{
log_printf ( &logger, "MUTErn" );
Delay_ms ( 3000 );
}
else if ( AUDIODAC_VOLUME_MAX == volume )
{
log_printf ( &logger, "MAXrn" );
Delay_ms ( 3000 );
}
else
{
log_printf ( &logger, "%urn", ( uint16_t ) volume );
Delay_ms ( 100 );
}
volume++;
if ( volume > AUDIODAC_VOLUME_MAX )
{
volume = AUDIODAC_VOLUME_MUTE;
}
}
}
The full application code, and ready to use projects can be installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on Mikroe github account.
Other Mikroe Libraries used in the example:
Additional notes and informations
Depending on the development board you are using, you may need USB UART click, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. A UART terminal is available in all Mikroe compilers.
This Click board™ is supported with mikroSDK - Mikroe Software Development Kit, which needs to be downloaded from the LibStock and installed for the compiler you are using to ensure proper operation of mikroSDK compliant Click board™ demo applications.
For more information about mikroSDK, visit the official page.
NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
