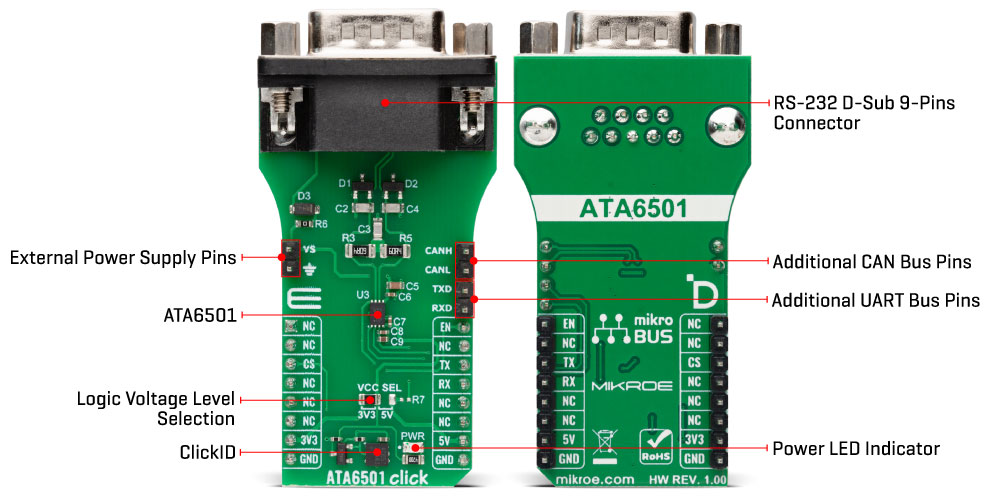

ATA6501 Click

PID: MIKROE-6461

Weight: 27 g

Status:

Type CAN,CAN FD Applications Ideal for applications such as body electronics, infotainment systems, powertrains, ADAS, photovoltaic systems, and more On-board modules ATA6501 - fully integrated CAN FD transceiver from Microchip Key Features High speed, Grade 0 AEC-Q100 qualified, fully compliant with ISO 11898-2:2024 and SAE J2284-1 to J2284-5 specifications, both Classical CAN and CAN FD protocols with speeds up to 5Mbit/s, integrated voltage regulator (5V/150mA), safety features, and more Interface CAN,UART Feature ClickID Compatibility mikroBUS™ Click board size L (57.15 x 25.4 mm) Input Voltage 3.3V or 5V,External

OFF

QTY	%	PPU
2	5%	$18.05
5	10%	$17.10
10+	15%	$16.15

Looking for a customized version of this product?

If you have other questions about this product contact us.

Specification

Type	CAN FD,CAN

NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
