Angle 6 Click

MIKROE-5282

15 g

Status:

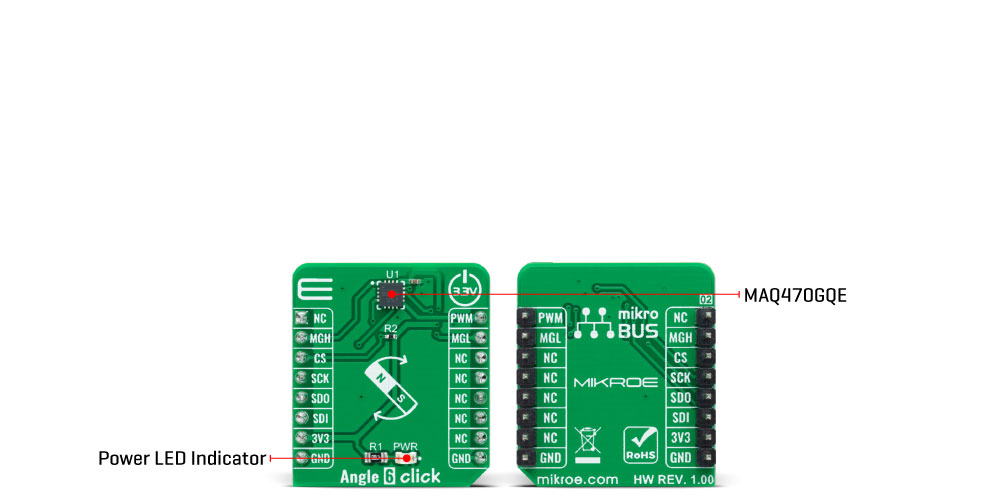

Type Magnetic Applications Can be used as a highly reliable and contactless method to measure various applications' angles, position, and speed On-board modules MAQ470GQE - 12-bit contactless angle sensor with PWM output from Monolithic Power Systems Key Features Fast data acquisition, SPI serial interface, magnetic field strength detection, contactless sensing for long life, supported both end-of-shaft and off-axis, and many more Interface PWM,SPI Compatibility mikroBUS Click board size S (28.6 x 25.4 mm) Supply Voltage 3.3V


OFF

2 5 10

Quantity discount

QTY % PPU
2 5% $19.00
5 10% $18.00
10+ 15% $17.00

$20.00

SAVE:

Was: $20.00

Total Save:

Type Magnetic

NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
