Altitude 6 Click is a compact add-on board that allows height measurement of an object or point related to sea level or ground level. This board features the MS5611-01BA03, a high-resolution barometric pressure sensor optimized for altimeter applications with an altitude resolution of 10 cm from TE Connectivity. It consists of a high linearity pressure sensor and an ultra-low power 24 bit ΔΣ ADC with internal factory calibrated coefficients. Also, it provides a precise digital 24-bit pressure and temperature value, different operation modes, and a configurable host interface that supports both SPI and I2C serial communication allowing the user to optimize for conversion speed and current consumption. The high accuracy and stability of both pressure and temperature signal of the MS5611-01BA03 make this Click board™ suitable for height sensing in medical and consumer applications, indoor navigation, mobile altimeter or barometer systems, and many more.
Altitude 6 Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
This product is no longer in stock
Availability date:
Altitude 6 Click as its foundation uses the MS5611-01BA03-50, a high-resolution barometric pressure sensor optimized for altimeter applications with an altitude resolution of 10 cm from TE Connectivity. The MS5611-01BA03-50 consists of a piezo-resistive sensor with an integrated signal conditioning circuit that can measure pressure in a range from 10 mbar up to 1.2bar with an accuracy of 1.5 mbar over a wide operating temperature range at the lowest power consumption. The high accuracy and stability of both pressure and temperature signal make it suitable for height sensing in medical and consumer applications, mobile altimeter or barometer systems, and many more.
The MS5611-01BA03-50 also has ultra-low-power 24-bit ΔΣ ADC with internal factory calibrated coefficients along with a high linearity pressure sensor. Its primary function is to convert the uncompensated analog output voltage from the piezo-resistive pressure sensor to a 24-bit digital value and provide a 24-bit digital value for the sensor's temperature, which allows the implementation of an altimeter function without any additional sensor.

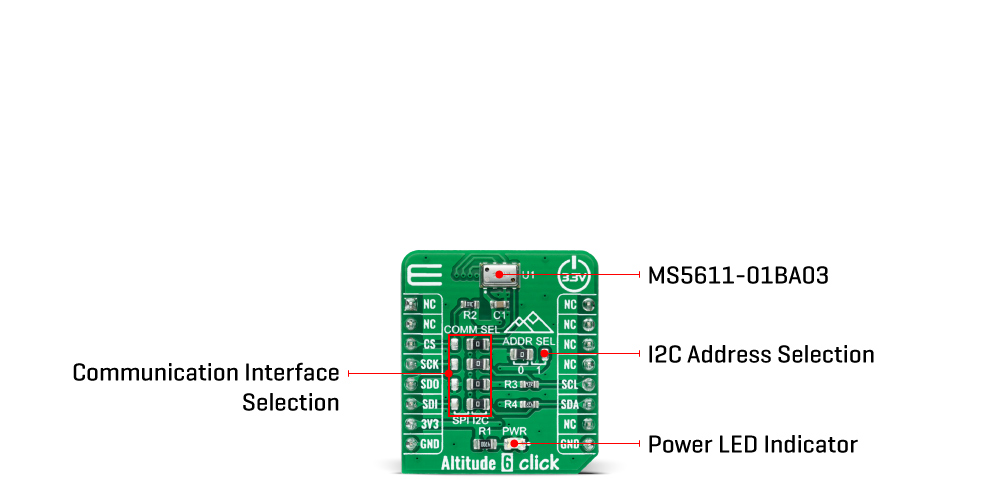

Altitude 6 Click allows using both I2C and SPI interfaces with a maximum frequency of 20MHz. The selection can be made by positioning SMD jumpers labeled as COMM SEL to an appropriate position. Note that all the jumpers' positions must be on the same side, or the Click board™ may become unresponsive. While the I2C interface is selected, the MS5611-01BA03 allows choosing the least significant bit (LSB) of its I2C slave address using the SMD jumper labeled as ADDR SEL to an appropriate position marked as 0 and 1.
This Click board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before use with MCUs with different logic levels. However, the Click board™ comes equipped with a library containing functions and an example code that can be used, as a reference, for further development.
Type
Pressure
Applications
Can be used for height sensing in medical and consumer applications, indoor navigation, mobile altimeter or barometer systems, and many more
On-board modules
MS5611-01BA03-50 - high-resolution barometric pressure sensor optimized for altimeter applications with an altitude resolution of 10 cm from TE Connectivity
Key Features
Low power consumption, high precision and resolution, integrated digital pressure sensor (24 bit ΔΣ ADC), excellent long-term stability, and many more
Interface
I2C,SPI
ClickID
No
Compatibility
mikroBUS
Click board size
S (28.6 x 25.4 mm)
Input Voltage
3.3V
This table shows how the pinout on Altitude 6 Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
Label | Name | Default | Description |
---|---|---|---|
LD1 | PWR | - | Power LED Indicator |
JP1-JP4 | COMM SEL | Right | Communication Interface Selection SPI/I2C: Left position SPI, Right position I2C |
JP5 | ADDR SEL | Left | I2C Address Selection 0/1: Left position 0, Right position 1 |
Description | Min | Typ | Max | Unit |
---|---|---|---|---|
Supply Voltage | - | 3.3 | - | V |
Operating Pressure Range | 10 | - | 1200 | mbar |
Accuracy | - | 1.5 | - | mbar |
Resolution | - | 24 | - | bit |
Operating Temperature Range | -40 | +25 | +85 | °C |
We provide a library for the Altitude 6 Click as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.
Package can be downloaded/installed directly from NECTO Studio Package Manager(recommended way), downloaded from our LibStock™ or found on Mikroe github account.
Library Description
This library contains API for Altitude 6 Click driver.
Key functions
altitude6_get_data
Altitude 6 get data function.
altitude6_get_raw_data
Altitude 6 get raw data function.
altitude6_get_calibration_data
Altitude 6 get calibration data function.
Example Description
This library contains API for Altitude 6 Click driver. The demo application reads and calculate temperature, pressure and altitude data.
void application_task ( void )
{
static float temperature;
static float pressure;
static float altitude;
if ( altitude6_get_data( &altitude6, &temperature, &pressure, &altitude ) == ALTITUDE6_OK )
{
log_printf( &logger, " Altitude : %.2f m rn", altitude );
log_printf( &logger, " Pressure : %.2f mbar rn", pressure );
log_printf( &logger, " Temperature : %.2f C rn", temperature );
log_printf( &logger, "----------------------------rn" );
}
Delay_ms( 1000 );
}
The full application code, and ready to use projects can be installed directly from NECTO Studio Package Manager(recommended way), downloaded from our LibStock™ or found on Mikroe github account.
Other Mikroe Libraries used in the example:
Additional notes and informations
Depending on the development board you are using, you may need USB UART click, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MikroElektronika compilers.
This Click board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
For more information about mikroSDK, visit the official page.
