ADC 23 Click is a compact add-on board that converts an analog voltage into a digital representation. This board features the ADS127L11, a wide-bandwidth 24-bit delta-sigma analog-to-digital converter from Texas Instruments. It is capable of data rates up to 400ksps using a wideband filter and up to 1067ksps using a low-latency filter. It also offers an excellent combination of AC performance and DC precision with low power consumption. This Click board™ makes the perfect solution for the development of data acquisition (DAQ) measurement devices, shock and vibration instruments, condition monitoring, sonars, electroencephalograms, power quality analyzers, and more.
ADC 23 Click is fully compatible with the mikroBUS™ socket and can be used on any host system supporting the mikroBUS™ standard. It comes with the mikroSDK open-source libraries, offering unparalleled flexibility for evaluation and customization. What sets this Click board™ apart is the groundbreaking ClickID feature, enabling your host system to seamlessly and automatically detect and identify this add-on board.
This product is no longer in stock
Availability date:
ADC 23 Click is based on the ADS127L11, a wide-bandwidth 24-bit delta-sigma analog-to-digital converter from Texas Instruments. The digital filter is configurable for wideband or low-latency operation, which optimizes wideband AC performance or data throughput for DC signals. It is optimized to provide high resolution with low power consumption. The delta-sigma demodulator produces low-resolution, high-frequency data, after which the noise is removed. The digital filter simultaneously decimates and filters the modulator data, thus providing the high-resolution final output data.
The ADS127L11 integrates input and reference buffers to reduce signal loading. You can choose onboard ADR4525, an ultralow noise high-accuracy voltage reference from Analog Devices for a reference voltage. Or you can choose an external one over the VEXT header. The selection can be made over the VREF SEL jumper. The internal voltage reference of 2.5V is set by default. The ADC can operate with an external clock or an internal oscillator. The nominal value of the clock is 25.6MHz in high-speed mode and 3.2MHz in low-speed mode. You can add an external oscillator over the CLK header.
The analog input of the ADC is differential, with the input defined as a difference voltage, and you should drive the input with a differential signal for the best performance. For this purpose, the ADC 23 Click is equipped with two SMA connectors.
ADC 23 Click uses a standard 4-Wire SPI serial interface to communicate with the host MCU, supporting SPI mode 1. The ADC can be reset over the RST pin. The start STR pin synchronizes the digital process, and if the STR pin is in a HIGH logic state, the ADC immediately begins conversions with the data-ready DRY pin pulsing for each conversion. The latency is defined as the time from synchronization to the falling edge of the DRY pin.
This Click board™ can operate with either 3.3V or 5V logic voltage levels selected via the VCC SEL jumper. This way, both 3.3V and 5V capable MCUs can use the communication lines properly. Also, this Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used as a reference for further development.
Type
ADC
Applications
Can be used for the development of data acquisition (DAQ) measurement devices, shock and vibration instruments, condition monitoring, sonars, electroencephalograms, power quality analyzers, and more
On-board modules
ADS127L11 - wide-bandwidth 24-bit delta-sigma analog-to-digital converter from Texas Instruments
Key Features
Programmable data rate, selectable digital filter (wideband and low-latency filters), power-scalable architecture, input and reference pre-charge buffers, internal or external clock, and more
Interface
SPI
Feature
ClickID
Compatibility
mikroBUS™
Click board size
M (42.9 x 25.4 mm)
Input Voltage
3.3V or 5V

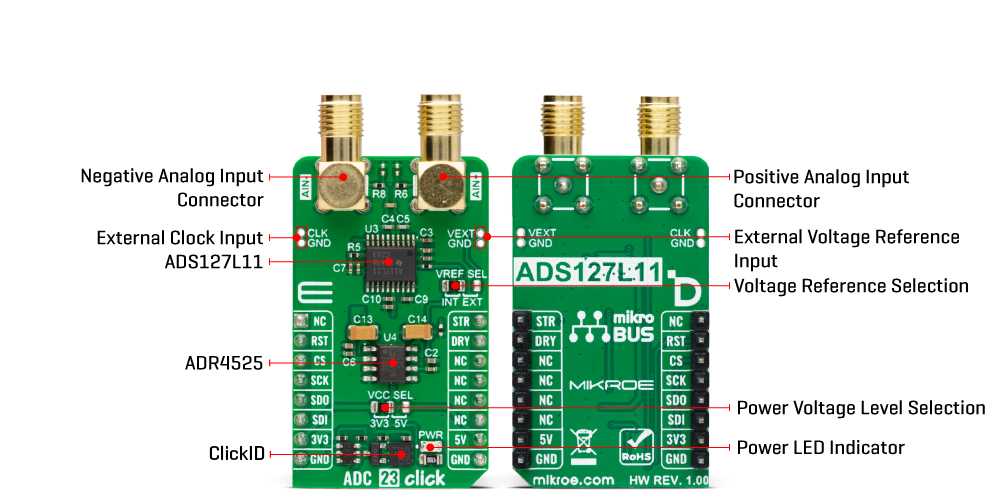

This table shows how the pinout on ADC 23 Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
Label | Name | Default | Description |
---|---|---|---|
LD1 | PWR | - | Power LED Indicator |
JP1 | VCC SEL | Left | Logic Level Voltage Selection 3V3/5V: Left position 3V3, Right position 5V |
JP2 | VREF SEL | Left | Voltage Reference Selection INT /EXT: Left position INT, Right position EXT |
Description | Min | Typ | Max | Unit |
---|---|---|---|---|
Supply Voltage | - | 3.3 | - | V |
ADC Resolution | - | - | 24 | bit |
Data Rate | - | - | 1067 | kSPS |
External Oscillator Frequency | 0.5 | - | 26.2 | MHz |
Internal Oscillator Frequency | 3.17 | - | 25.8 | MHz |
We provide a library for the ADC 23 Click as well as a demo application (example), developed using MIKROE compilers. The demo can run on all the main MIKROE development boards.
Package can be downloaded/installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on Mikroe github account.
Library Description
This library contains API for ADC 23 Click driver.
Key functions
adc23_get_voltage
ADC 23 read get voltage level function.
adc23_read_conversion_data
ADC 23 read conversion data function.
adc23_start_conversion
ADC 23 start conversion function.
Example Description
This example demonstrates the use of the ADC 23 Click board™ by reading and writing data by using SPI serial interface and reading results of AD conversion.
void application_task ( void )
{
static float voltage = 0.0;
if ( ADC23_OK == adc23_get_voltage( &adc23, &voltage ) )
{
log_printf( &logger, " Voltage : %.2f [mV]rn", voltage );
Delay_ms( 1000 );
}
}
The full application code, and ready to use projects can be installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on Mikroe github account.
Other Mikroe Libraries used in the example:
Additional notes and informations
Depending on the development board you are using, you may need USB UART click, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MIKROE compilers.
This Click board™ is supported with mikroSDK - MIKROE Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
For more information about mikroSDK, visit the official page.
NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
