ADC 22 Click

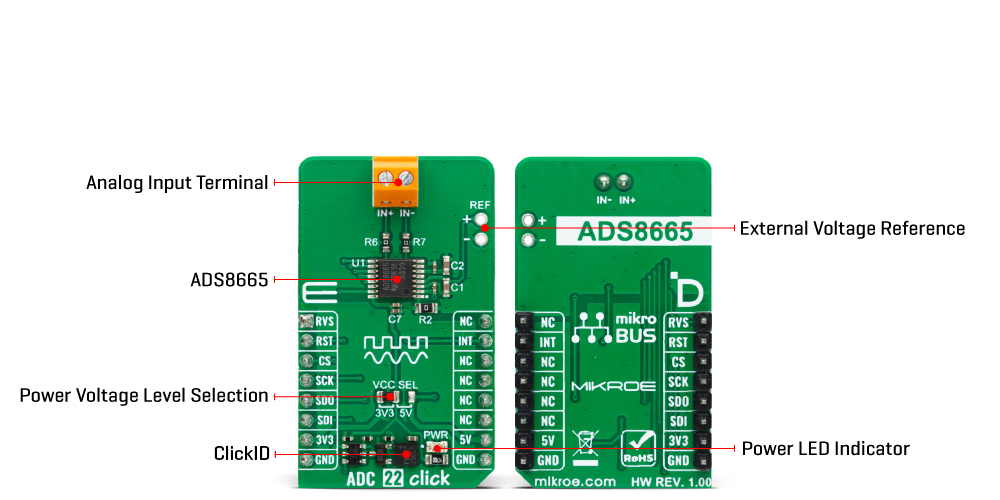

Type ADC Applications Can be used for the development of analog input modules, mixed modules (AI, AO, DI, DO), data acquisition (DAQ), trackside signaling and control, and more On-board modules ADS8665 - SAR ADC data acquisition system with programmable bipolar input ranges from Texas Instruments Key Features High-speed, high-precision, high-performance, based on a successive approximation (SAR), up to 500ksps sampling rate, supports true bipolar and unipolar inputs in wide ranges, supports multiSPI interface backward-compatible to the standard SPI protocol, alarm function, and more Interface SPI ClickID Yes Compatibility mikroBUS Click board size M (42.9 x 25.4 mm) Input Voltage 3.3V or 5V
