ADC 14 Click

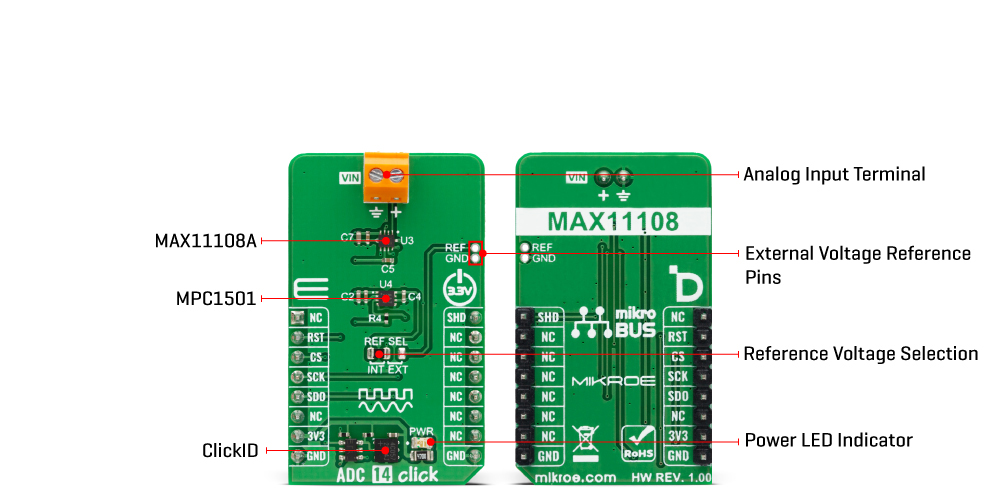

How does it work?

ADC 14 Click is based on the MAX11108A, a low-power serial ADC from Analog Devices. This 12-bit ADC includes a full power-down mode and a fast wake-up for optimal power management, consuming only 6.6mW while sampling up to 3Msps. The low power consumption extends battery life, as it can go as low as 2.5μA/ksps and even lower in power-down mode. The MAX11108A samples from the analog input in the normal mode of operation while the device is powered up at all times, thereby achieving its maximum throughput rates. In addition, the ADC can operate with 14 cycles per conversion.

The ADC 14 Click accepts a full-scale input from 0V to the power supply or the reference voltage. The digital output corresponds to the analog input over the 2-pin screw terminal. ADC 14 Click can use internal or external as a reference voltage, which you can select over the REF SEL jumper (internal reference selected by default). The MCP1501, a high-precision buffered voltage reference from Microchip, provides a 2.048V internal reference voltage. In addition, you can use an external reference voltage, which you can connect over the REF header.

ADC 14 Click uses a 3-Wire (read-only) SPI serial interface to communicate with the host MCU, supporting up to 48MHz serial clock frequency. The SHD shutdown pin of the mikroBUS™ socket is used to shut down the MCP1501 with a Low logic state if the MCP1501 is not in use.

This Click board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. Also, this Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used as a reference for further development.

Specifications

Pinout diagram

This table shows how the pinout on ADC 14 Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes	Pin					Pin	Notes
	NC	1	AN	PWM	16	SHD	Shutdown
ID SEL	RST	2	RST	INT	15	NC
SPI Select / ID COMM	CS	3	CS	RX	14	NC
SPI Clock	SCK	4	SCK	TX	13	NC
SPI Data OUT	SDO	5	MISO	SCL	12	NC
	NC	6	MOSI	SDA	11	NC
Power Supply	3.3V	7	3.3V	5V	10	NC
Ground	GND	8	GND	GND	9	GND	Ground

Onboard settings and indicators

ADC 14 Click electrical specifications

Software Support

We provide a library for the ADC 14 Click as well as a demo application (example), developed using MIKROE compilers. The demo can run on all the main MIKROE development boards.

Package can be downloaded/installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on Mikroe github account.

Library Description

This library contains API for ADC 14 Click driver.

Key functions

• adc14_get_voltage ADC 14 get voltage function.

• adc14_read_conversion_data ADC 14 read conversion data function.

• adc14_set_vref ADC 14 set voltage reference function.

Example Description

This example demonstrates the use of the ADC 14 Click board™ by reading results of AD conversion by using SPI serial interface.

void application_task ( void )
 {
     float voltage = 0.0;
     if ( ADC14_OK == adc14_get_voltage( &adc14, &voltage ) )
     {
         log_printf( &logger, " Voltage : %.2f [mV]rn", voltage );
         Delay_ms( 1000 );
     }
 }

The full application code, and ready to use projects can be installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on Mikroe github account.

Other Mikroe Libraries used in the example:

• MikroSDK.Board
• MikroSDK.Log
• Click.ADC14

Additional notes and informations

Depending on the development board you are using, you may need USB UART click, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MIKROE compilers.

mikroSDK

This Click board™ is supported with mikroSDK - MIKROE Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.

For more information about mikroSDK, visit the official page.
