MIKROE-5946
24 g
Status:

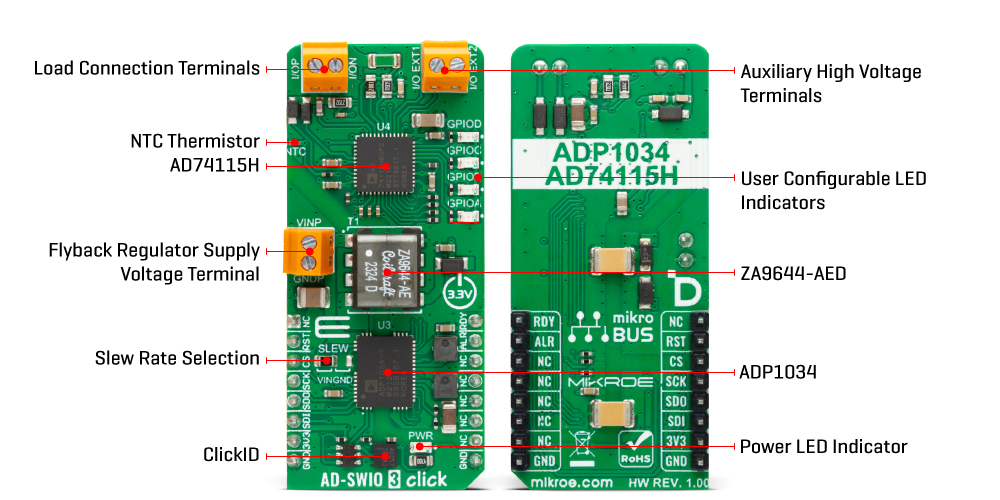

Type ADC-DAC,Isolators Applications Can be used for the development of isolated industrial control systems, process control, factory automation, building control systems, and more On-board modules AD74115H - software-configurable input and output with HART mode from Analog Devices ADP1034 - isolated micropower management unit with seven digital isolators and programmable power control from Analog Devices Key Features Software-configurable, voltage, current, and digital input and output, 2/3/4-wire RTD measurement, auxiliary high voltage sense pins, 16-bit ADC, 14-bit DAC, integrated HART modem, unipolar and bipolar capability, internal temperature sensor, integrated flyback power switch, selectable slew rate, and more Interface SPI ClickID Yes Compatibility mikroBUS Click board size L (57.15 x 25.4 mm) Input Voltage 3.3V,External
This product is no longer in stock
Availability date: 12/18/2023
| Type | ADC-DAC,Isolators |
NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
