Accel 33 Click

How does it work?

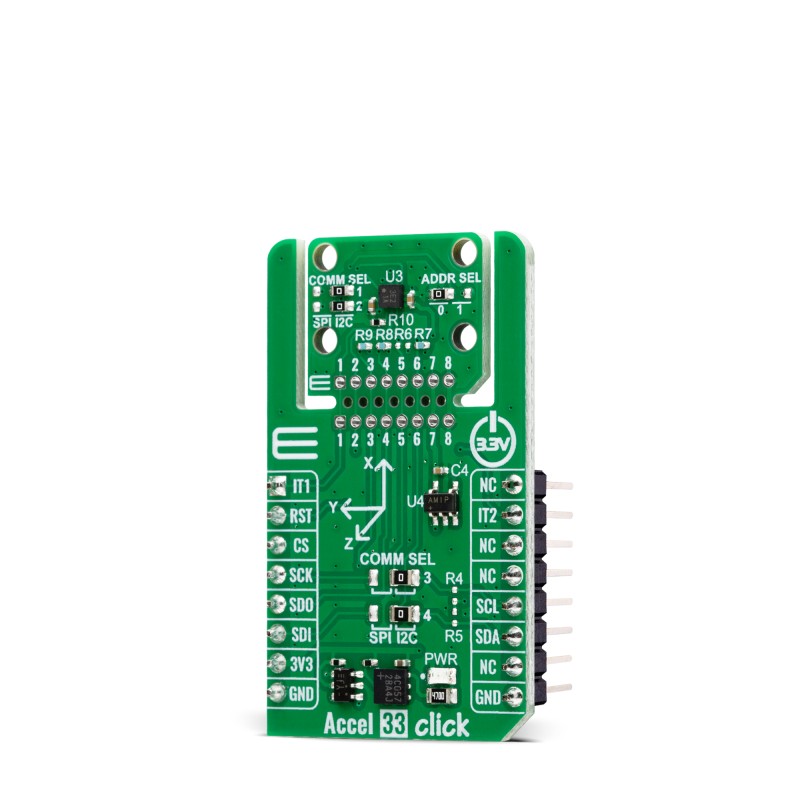

Accel 33 Click is based on the KX134ACR-LBZ, a high-performance 3-axis accelerometer from ROHM Semiconductor, based on a proprietary Kionix™ MEMS technology for precise and reliable motion sensing in demanding industrial applications. This advanced capacitive accelerometer integrates a proprietary plasma micromachining process combined with hermetic wafer-level bonding, ensuring exceptional durability and stability under varying environmental conditions. It supports selectable full-scale acceleration ranges of ±8g, ±16g, ±32g, and ±64g, with measurement based on the principle of differential capacitance generated by the acceleration-induced displacement of the sensing element, further enhanced by common-mode cancellation techniques to minimize errors caused by manufacturing variations, temperature changes, and environmental stress.

The device offers a flexible output data rate from 0.781Hz to 25.6kHz, with a choice between low-power and high-resolution modes to match performance and energy efficiency requirements, along with digital high-pass filter outputs for effective signal conditioning. An embedded FIFO buffer helps reduce host processor load, while a configurable low-power mode optimizes noise and power characteristics for long-term operation. Additional features include a factory-programmed offset and sensitivity calibration for consistent accuracy across devices. These capabilities make Accel 33 Click ideally suited for a range of applications such as factory automation equipment, industrial motors and pumps, robotic machines and arms, and motion data logging systems, delivering dependable high-g performance.

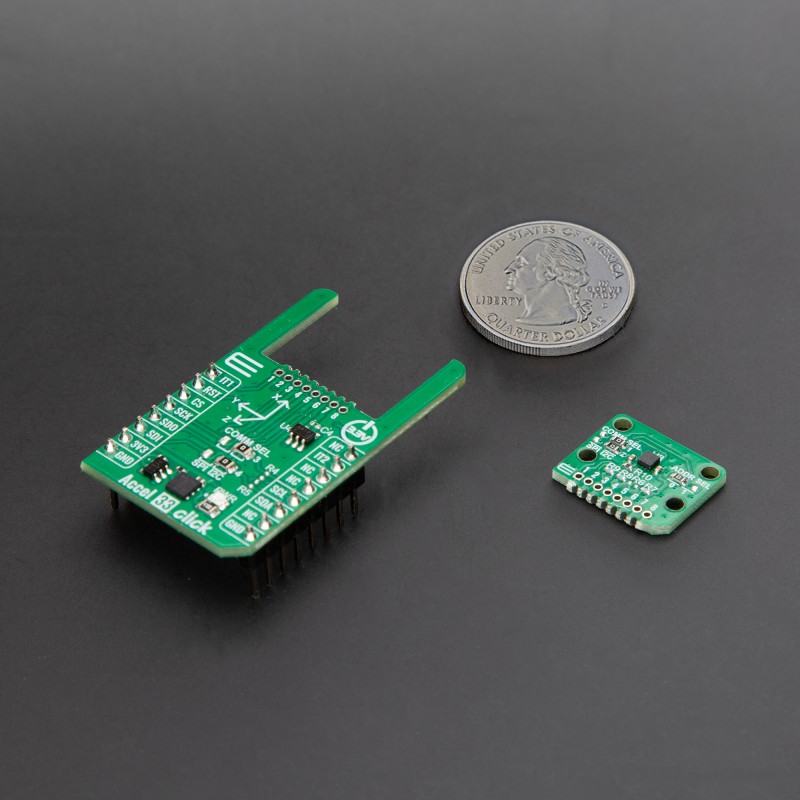

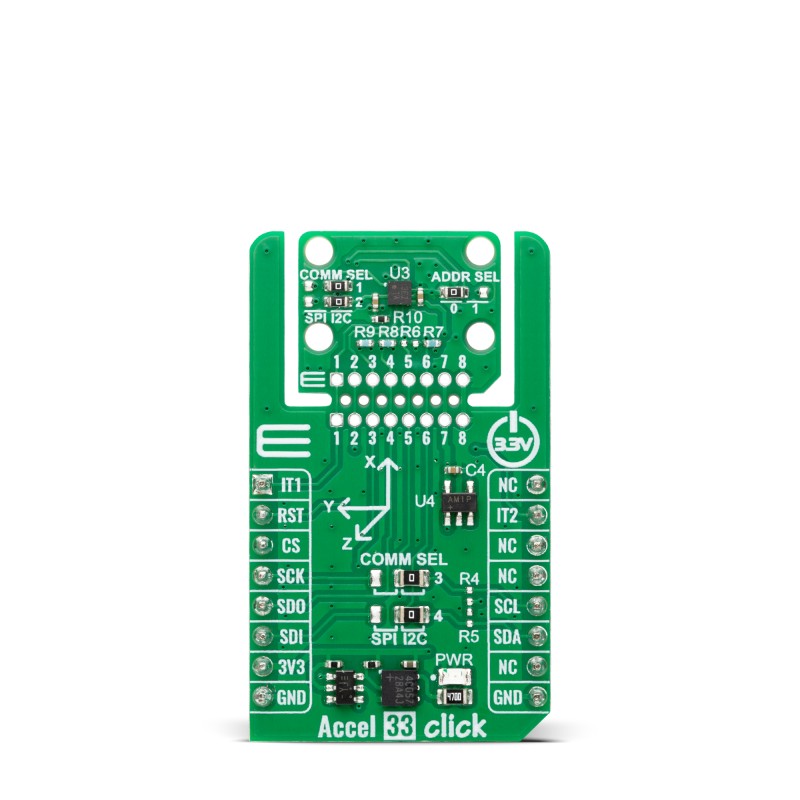

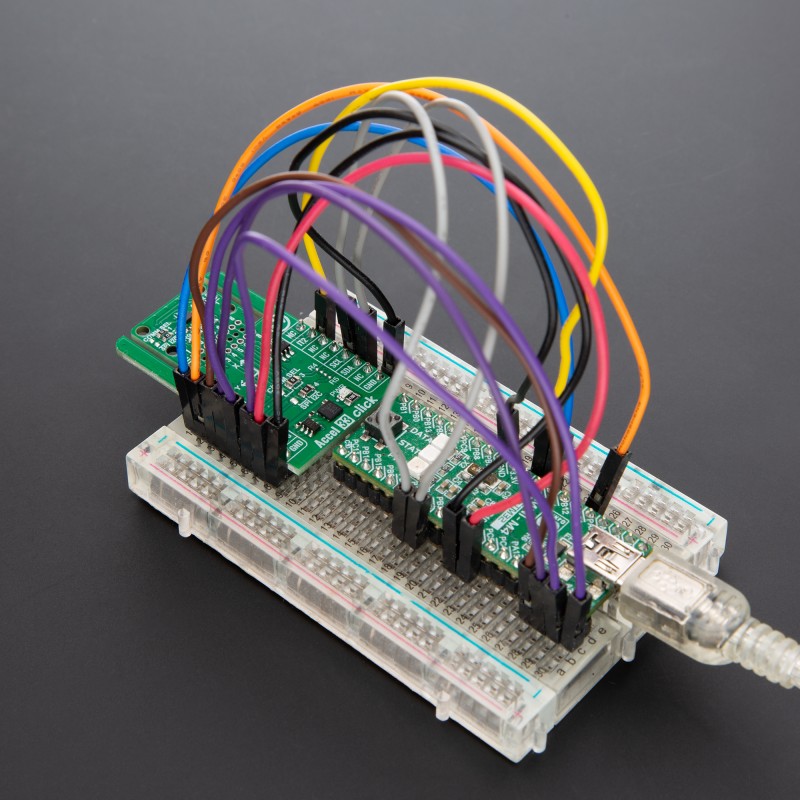

This Click board™ is designed in a unique format supporting the newly introduced MIKROE feature called "Click Snap." Unlike the standardized version of Click boards, this feature allows the main sensor/IC/module area to become movable by breaking the PCB, opening up many new possibilities for implementation. Thanks to the Snap feature, the KX134ACR-LBZ can operate autonomously by accessing its signals directly on the pins marked 1-8. Additionally, the Snap part includes a specified and fixed screw hole position, enabling users to secure the Snap board in their desired location.

This board supports communication with the host MCU through either SPI (maximum clock frequency of 10MHz) or I2C (maximum clock frequency of 400kHz) interfaces, with I2C being the default option. The communication interface is selected by adjusting the COMM SEL jumper to the desired position. To enhance flexibility, particularly with the detachable Snap section of the Click Snap format, an additional COMM SEL jumpers are available. These jumpers functions the same as the COMM SEL, allowing for independent communication interface selection when the Snap section is used independently. To ensure proper functionality, all COMM jumpers must be set to the same interface. For those using the I2C interface, the board also provides an ADDR SEL jumper, enabling users to configure the I2C address as needed for their specific application.

In addition to the interface pins, the board includes two configurable interrupt pins, IT1 and IT2, to trigger interrupts when accelerometer activity falls below a defined threshold window (Back-to-sleep) or exceeds a threshold window (Wake-up event). To manage the operation of the KX134ACR-LBZ IC, Accel 33 Click integrates the MAX40200 from Analog Devices that enables or disables the sensor through the RST pin.

This Click board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. It also comes equipped with a library containing functions and example code that can be used as a reference for further development.

Click Snap

Click Snap is an innovative feature of our standardized Click add-on boards, designed to bring greater flexibility and optimize your prototypes. By simply snapping the PCB along predefined lines, you can easily detach the main sensor/IC/module area, reducing the overall size, weight, and power consumption - ideal for the final phase of prototyping. For more details about Click Snap, visit the official page dedicated to this feature.

Specifications

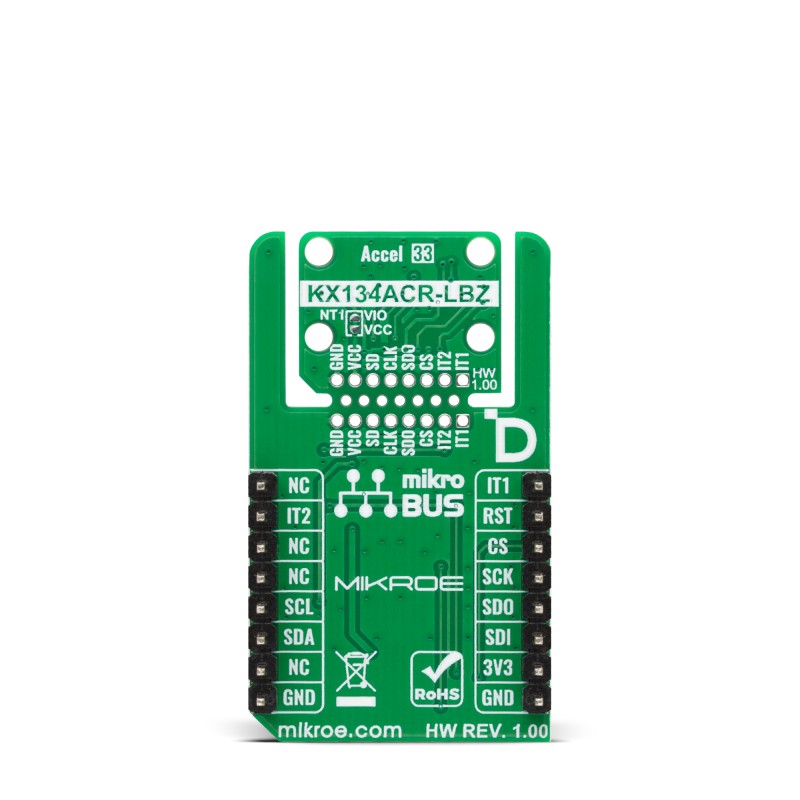

Pinout diagram

This table shows how the pinout on Accel 33 Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes	Pin					Pin	Notes
Interrupt 1	IT1	1	AN	PWM	16	NC
Device Enable / ID SEL	RST	2	RST	INT	15	IT2	Interrupt 2
ID COMM	CS	3	CS	RX	14	NC
SPI Clock	SCK	4	SCK	TX	13	NC
SPI Data OUT	SDO	5	MISO	SCL	12	SCL	I2C Clock
SPI Data IN	SDI	6	MOSI	SDA	11	SDA	I2C Data
Power Supply	3.3V	7	3.3V	5V	10	NC
Ground	GND	8	GND	GND	9	GND	Ground

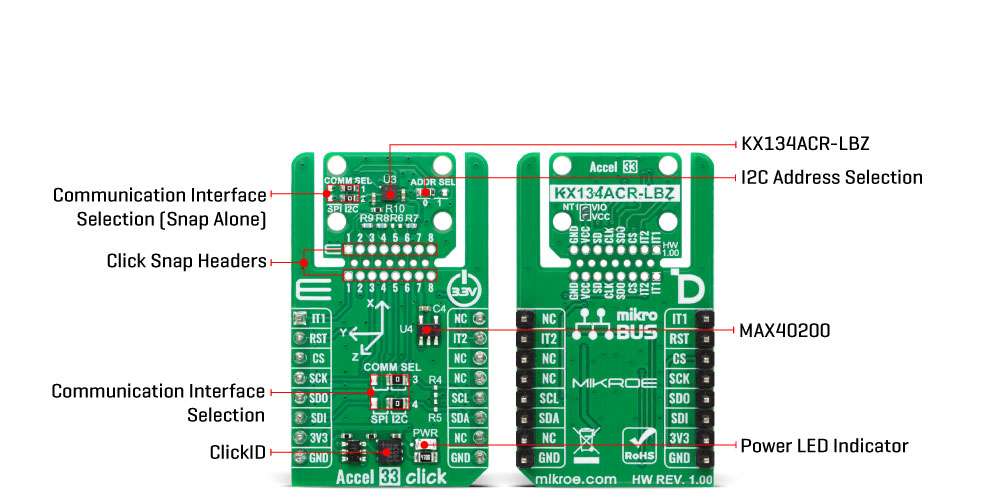

Onboard settings and indicators

Accel 33 Click electrical specifications

Software Support

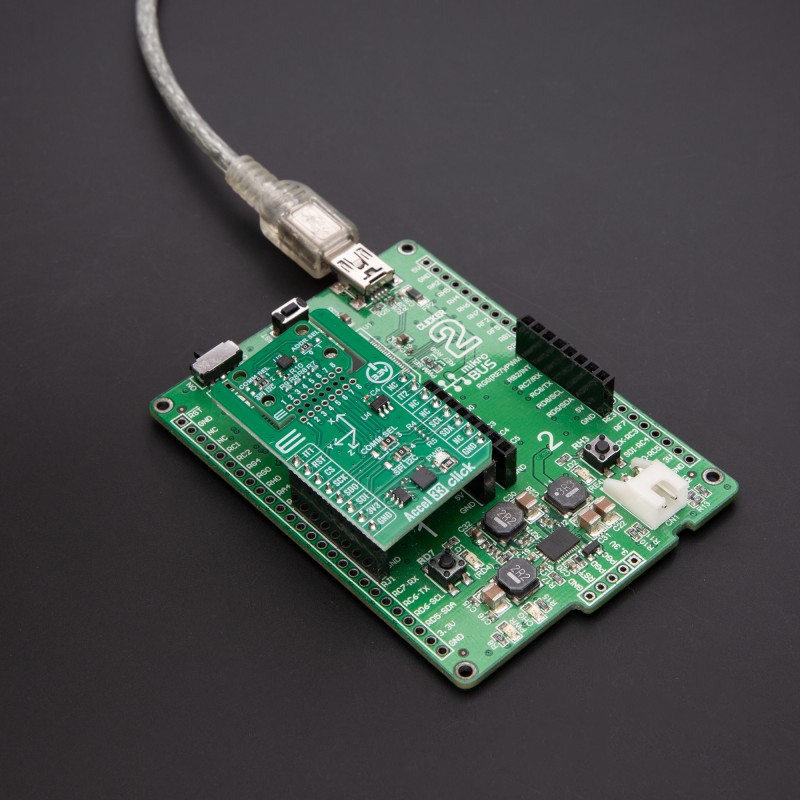

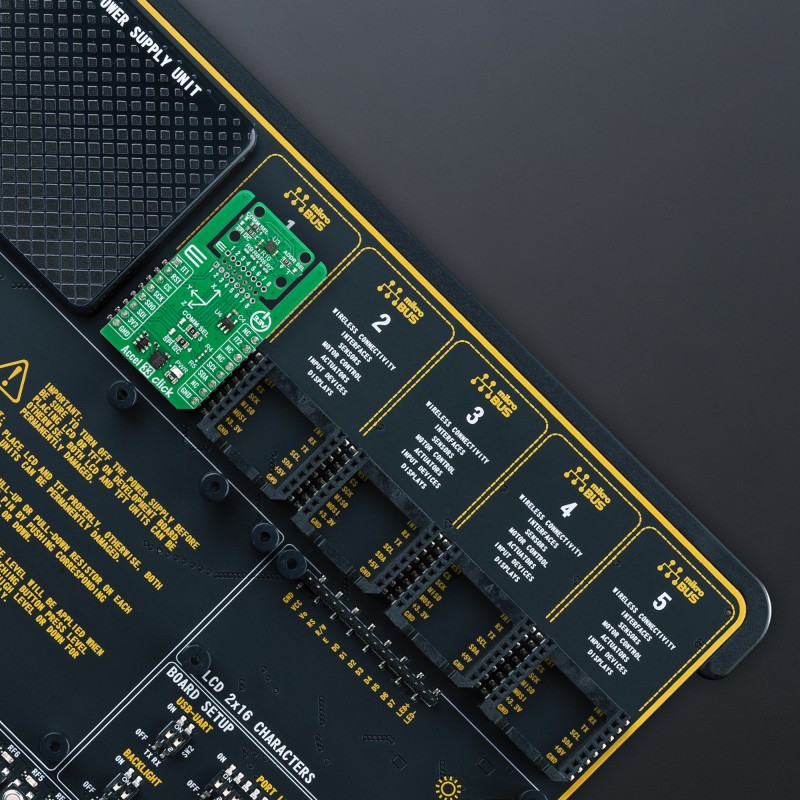

Accel 33 Click demo application is developed using the NECTO Studio, ensuring compatibility with mikroSDK's open-source libraries and tools. Designed for plug-and-play implementation and testing, the demo is fully compatible with all development, starter, and mikromedia boards featuring a mikroBUS™ socket.

Example Description

This example demonstrates the use of the Accel 33 Click board by periodically reading acceleration data from all three axes (X, Y, Z) and displaying the results on the UART terminal. It waits for the data ready interrupt before reading new data to ensure synchronization.

Key Functions

• accel33_cfg_setup This function initializes Click configuration structure to initial values.
• accel33_init This function initializes all necessary pins and peripherals used for this Click board.
• accel33_default_cfg This function executes a default configuration of Accel 33 Click board.
• accel33_get_int2_pin This function returns the logic state of the INT2 pin.
• accel33_set_odr This function sets the accelerometer's output data rate.
• accel33_get_accel This function reads and converts the raw acceleration data for all three axes.

Application Init

Initializes the logger and the Accel 33 Click driver, then sets up the default configuration.

Application Task

Waits for the data ready interrupt and reads acceleration values for the X, Y, and Z axes, then displays the values in g units via the UART terminal. The INT2 pin is used to signal when new data is ready to be read from the sensor.

Application Output

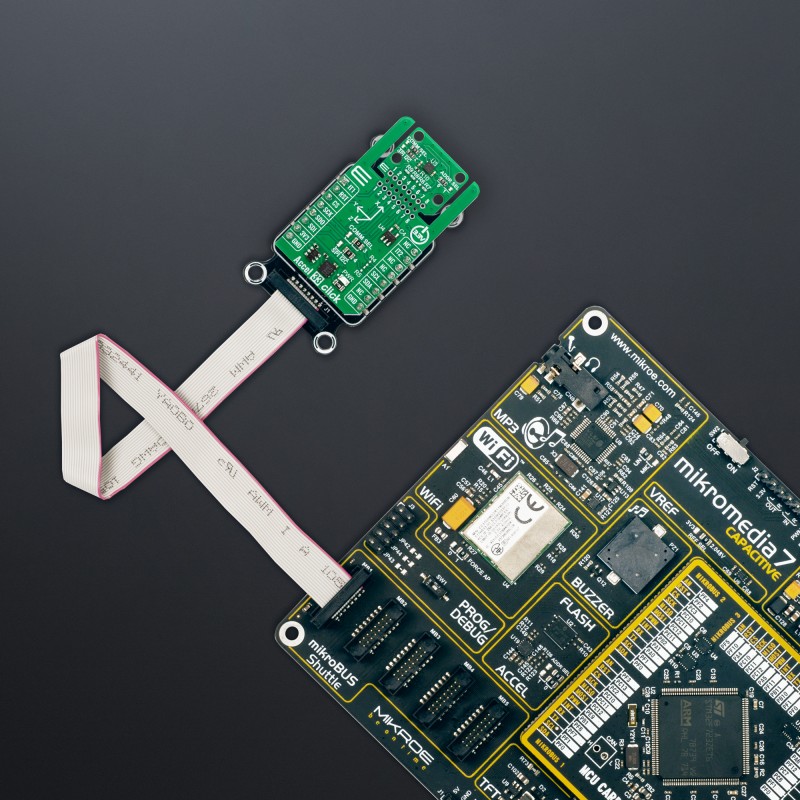

This Click board can be interfaced and monitored in two ways:

• Application Output - Use the "Application Output" window in Debug mode for real-time data monitoring. Set it up properly by following this tutorial.
• UART Terminal - Monitor data via the UART Terminal using a USB to UART converter. For detailed instructions, check out this tutorial.

Additional Notes and Information

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.
