Accel 21 Click is a compact add-on board that contains an acceleration sensor. This board features the MIS2DH, a high-performance three-axis accelerometer from STMicroelectronics. The MIS2DH allows selectable full-scale acceleration measurements in ranges of ±2g, ±4g, ±8g, or ±16g in three axes with a configurable host interface that supports both SPI and I2C serial communication. It also supports high-resolution and low-power operating modes, allowing maximum flexibility to meet various use case needs. This Click board™ is suitable for multiple applications such as motion-activated functions, posture and free-fall detection, and many more.
Accel 21 Click is fully compatible with the mikroBUS™ socket and can be used on any host system supporting the mikroBUS™ standard. It comes with the mikroSDK open-source libraries, offering unparalleled flexibility for evaluation and customization. What sets this Click board™ apart is the groundbreaking ClickID feature, enabling your host system to seamlessly and automatically detect and identify this add-on board.
This product is no longer in stock
Availability date:

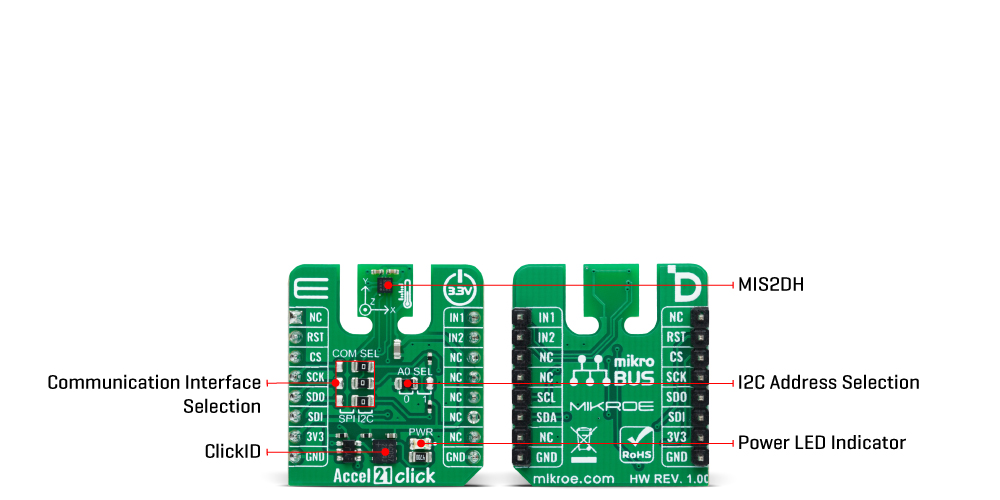

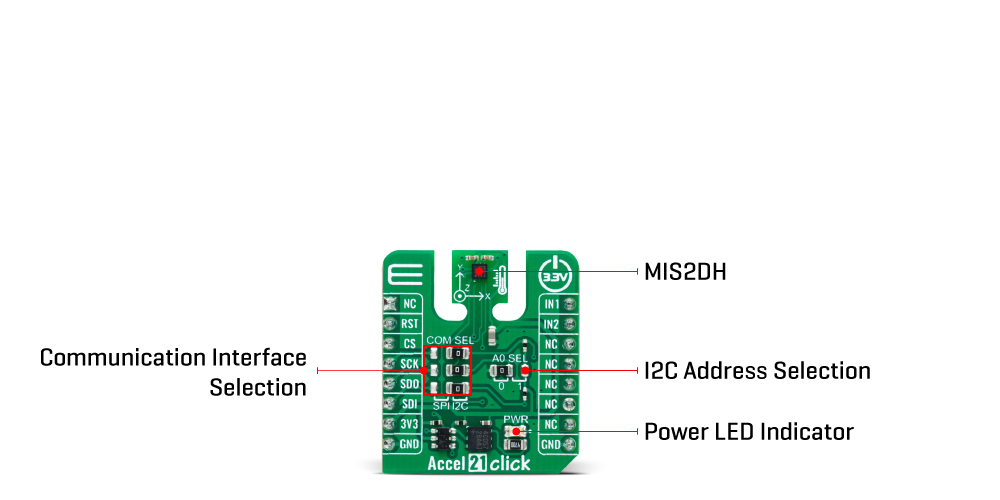

Accel 21 Click is based on the MIS2DH, a highly reliable digital triaxial acceleration and temperature sensor from STMicroelectronics. The MIS2DH is highly configurable with a programmable acceleration range of ±2g, ±4g, ±8g, or ±16g, capable of measuring accelerations with output data rates from 1Hz to 5.3kHz. Multiple operating modes (high-resolution, normal, and low-power mode) with various bandwidths and output data resolutions contribute significantly to applications such as activity monitoring and posture detection.
The complete measurement chain is composed of a low-noise capacitive amplifier which converts the capacitive unbalance of the MEMS sensor into an analog voltage that will be available to the user through an analog-to-digital converter. The acceleration data is accessed through I2C or SPI interface with a maximum frequency of 400kHz for I2C and 10MHz for SPI communication. The selection is made by positioning SMD jumpers labeled COMM SEL in an appropriate position. Note that all the jumpers' positions must be on the same side, or the Click board™ may become unresponsive. While the I2C interface is selected, the MIS2DH allows choosing the least significant bit (LSB) of its I2C slave address using the SMD jumper labeled ADDR SEL.
The MIS2DH also possesses two interrupts, IN1 and IN2, routed to the PWM and INT pins on the mikroBUS™ socket, entirely programmed by the user through a serial interface. They signal MCU that an event, such as inertial wake-up/free-fall or the board's position, has been sensed.
This Click board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. However, the Click board™ comes equipped with a library containing functions and an example code that can be used as a reference for further development.
Type
Motion
Applications
Can be used for multiple applications such as motion-activated functions, posture and free-fall detection, and more
On-board modules
MIS2DH - digital triaxial acceleration sensor from STMicroelectronics
Key Features
High performance, MEMS sensor with on-chip signal processing, low power consumption, programmable interrupts, selectable interface, 6D/4D orientation detection, motion and free-fall detection, and more
Interface
I2C,SPI
Feature
ClickID
Compatibility
mikroBUS™
Click board size
S (28.6 x 25.4 mm)
Input Voltage
3.3V
This table shows how the pinout on Accel 21 Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
Label | Name | Default | Description |
---|---|---|---|
LD1 | PWR | - | Power LED Indicator |
JP1 | ADDR SEL | Left | I2C Address Selection 0/1: Left position 0, Right position 1 |
JP2-JP4 | COMM SEL | Right | Communication Interface Selection SPI/I2C: Left position SPI, Right position I2C |
Description | Min | Typ | Max | Unit |
---|---|---|---|---|
Supply Voltage | - | 3.3 | - | V |
Acceleration Range | ±2 | - | ±16 | g |
Acceleration Resolution | 8 | 10 | 12 | bits |
Sensitivity (±2 ~ ±16) | 3.91 | - | 188.68 | mg/digit |
We provide a library for the Accel 21 Click as well as a demo application (example), developed using Mikroe compilers. The demo can run on all the main Mikroe development boards.
Package can be downloaded/installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on Mikroe github account.
Library Description
This library contains API for Accel 21 Click driver.
Key functions
accel21_set_config
Accel 21 set config function.
accel21_get_axis
Accel 21 get accel data function.
accel21_get_temperature
Accel 21 get temperature function.
Example Description
This library contains API for Accel 21 Click driver. The library initializes and defines the I2C or SPI bus drivers to write and read data from registers. The library also includes a function for reading X-axis, Y-axis, and Z-axis data.
void application_task ( void )
{
static accel21_axis_t axis;
accel21_get_axis( &accel21, &axis );
log_printf( &logger, "tX : %d rntY : %d rntZ : %d rn", axis.x, axis.y, axis.z );
log_printf( &logger, "------------------------rn" );
Delay_ms( 1000 );
}
The full application code, and ready to use projects can be installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on Mikroe github account.
Other Mikroe Libraries used in the example:
Additional notes and informations
Depending on the development board you are using, you may need USB UART click, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all Mikroe compilers.
This Click board™ is supported with mikroSDK - Mikroe Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
For more information about mikroSDK, visit the official page.
NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
