OFF
MIKROE-1905
24 g
Status:
Accel 2 click carries ST’s LIS3DSH IC, a low-power factory-calibrated three-axis accelerometer which embeds a FIFO buffer and two programmable state machines.
This product is no longer in stock
Availability date:

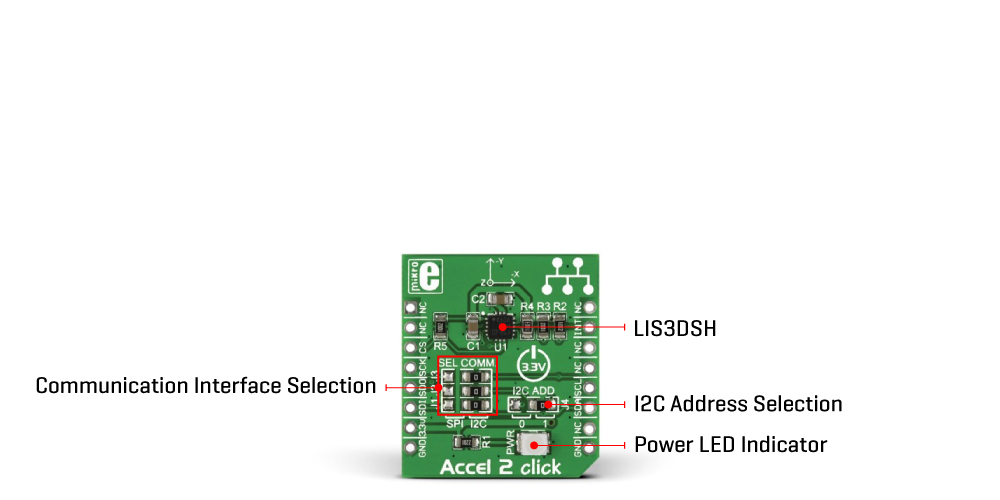

Accel 2 click carries ST’s LIS3DSH IC, a low-power factory-calibrated three-axis accelerometer which embeds a FIFO buffer and two programmable state machines. It allows you to implement gesture recognition. User-defined programs can distinguish movement patterns like shake and double shake, face up and face down, turn and double turn, and activate an interrupt upon their execution. You can also switch between I2C and SPI interfaces for communicating with the target board MCU (by soldering the onboard jumpers in the appropriate positions). Accel 2 click is designed to use a 3.3V power supply only.
| Type | Acceleration,Motion |
| Applications | Ideal for motion control user interfaces. Also, pedometers, display orientation detectors and so on |
| On-board modules | ST’s LIS3DSH IC |
| Key Features | FIFO buffer and embedded state machines |
| Interface | GPIO,I2C,SPI |
| Compatibility | mikroBUS |
| Click board size | S (28.6 x 25.4 mm) |
| Input Voltage | 3.3V |
MEMS Sensors: Conversion of the Physical World to the Digital World - MikroElektronika Learn
MEMS sensors or Micro-Electro-Mechanical Systems are the sensors and actuators at the bare metal of embedded systems. MEMS are used for airbag systems, automatic door locks, security systems , earthquake detection, inkjet printers, kitchen appliances, and of course computer peripherals. In this blog we will explore the different ways you can use MEMS sensors.
NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
