4x4 RGB 2 Click

MIKROE-5661

20 g

Status:

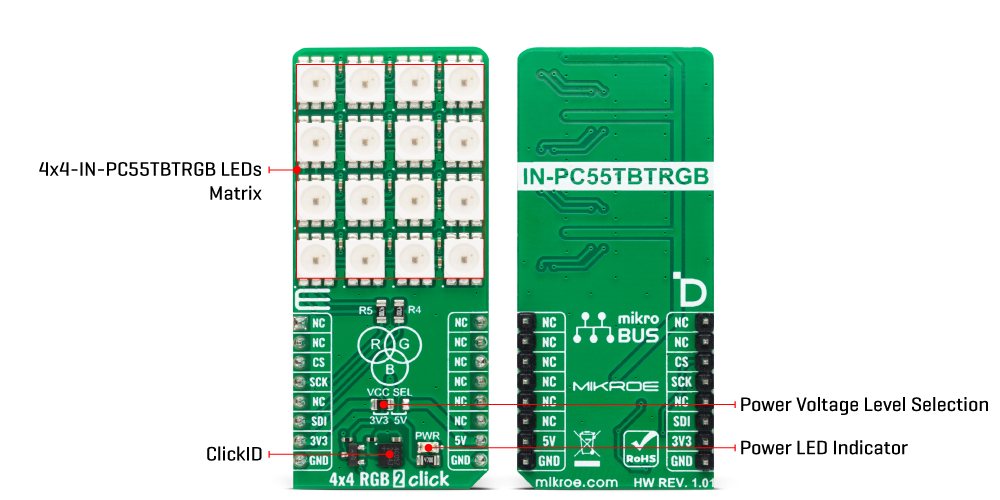

Type LED Matrix Applications Can be used for the development of LED-shaped screens, color LED string light, scene lighting, and more On-board modules IN-PC55TBTRGB - RGB LED with an integrated IC from Inolux Key Features Intelligent LEDs, high brightness, built-in support uninterrupted oscillation PWM output, 8-bit (256) color, 5-bit (32) brightness, double data transmission, constant current drive for all channels, self-detection function-specific signal, and more Interface SPI Compatibility mikroBUS Click board size L (57.15 x 25.4 mm) Input Voltage 3.3V or 5V


OFF

2 5 10

Quantity discount

QTY % PPU
2 5% $21.85
5 10% $20.70
10+ 15% $19.55

$23.00

SAVE:

Was: $23.00

Total Save:

Type LED Matrix

NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
