2x2 RGB Click

MIKROE-5917

19 g

Status:

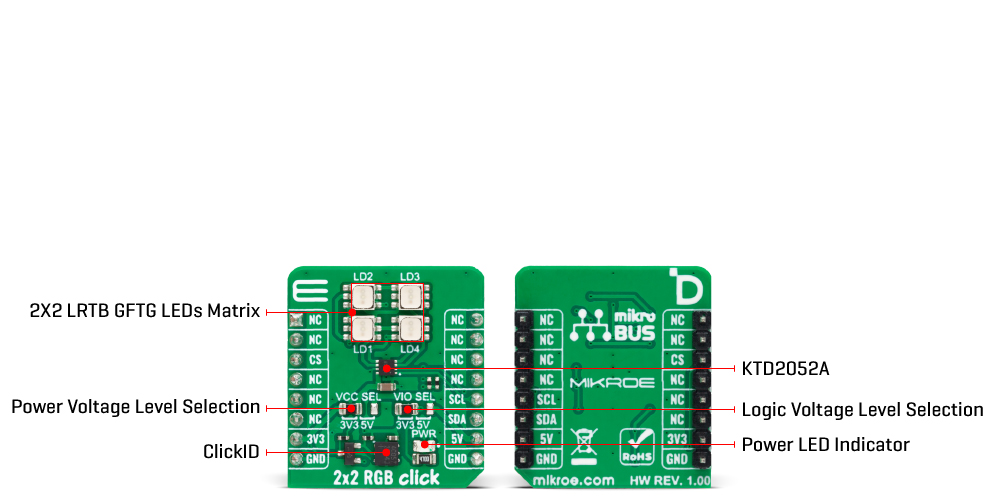

Type LED Matrix Applications Can be used for the development of AI smart speakers, Bluetooth/Wi-Fi loudspeakers, automotive indicators and ambiance lighting, IoT, gaming, consumer electronics, and more On-board modules KTD2052A - 12-channel RGB LED driver from Kinetic Technologies Key Features The driver can drive up to 12 LEDs (4RGB LEDs), multiplexed LED current driver outputs, 14 million colors, 12 independent exponential fade engines, a flexible pattern generator with watchdog, and more Interface I2C ClickID Yes Compatibility mikroBUS Click board size S (28.6 x 25.4 mm) Input Voltage 3.3V or 5V


OFF

2 5 10

Quantity discount

QTY % PPU
2 5% $13.30
5 10% $12.60
10+ 15% $11.90

$14.00

SAVE:

Was: $14.00

Total Save:

Type LED Matrix

NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
