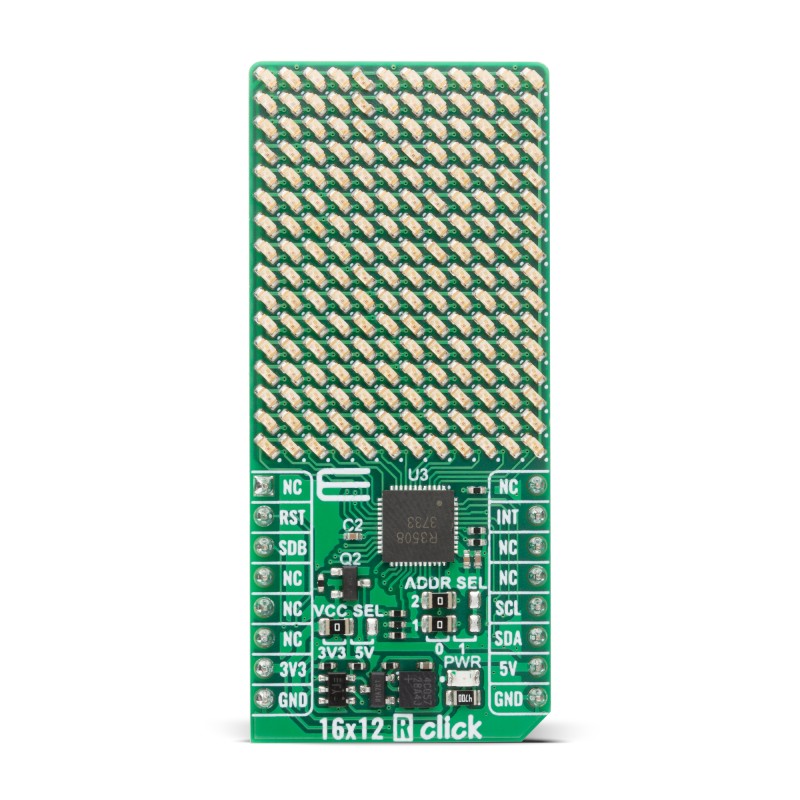

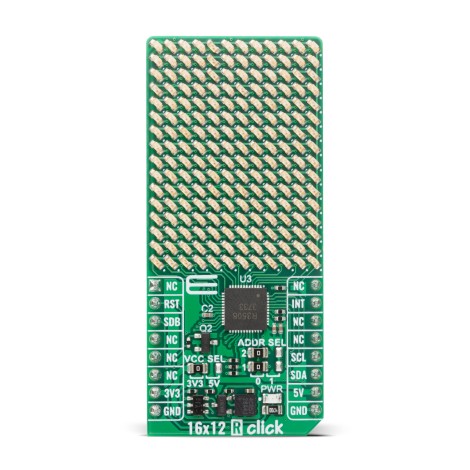

16x12 R Click

How does it work?

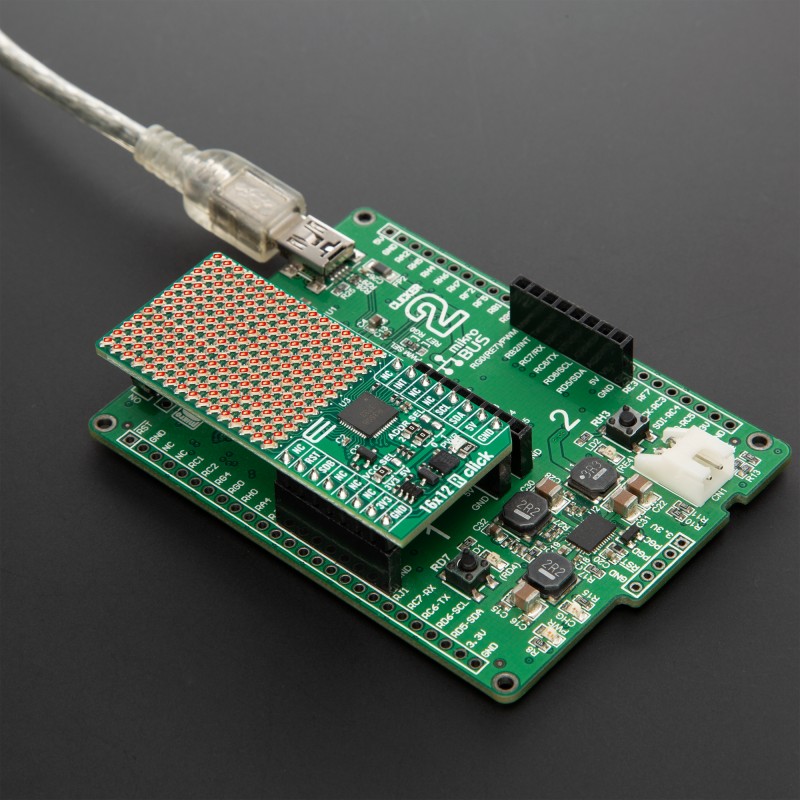

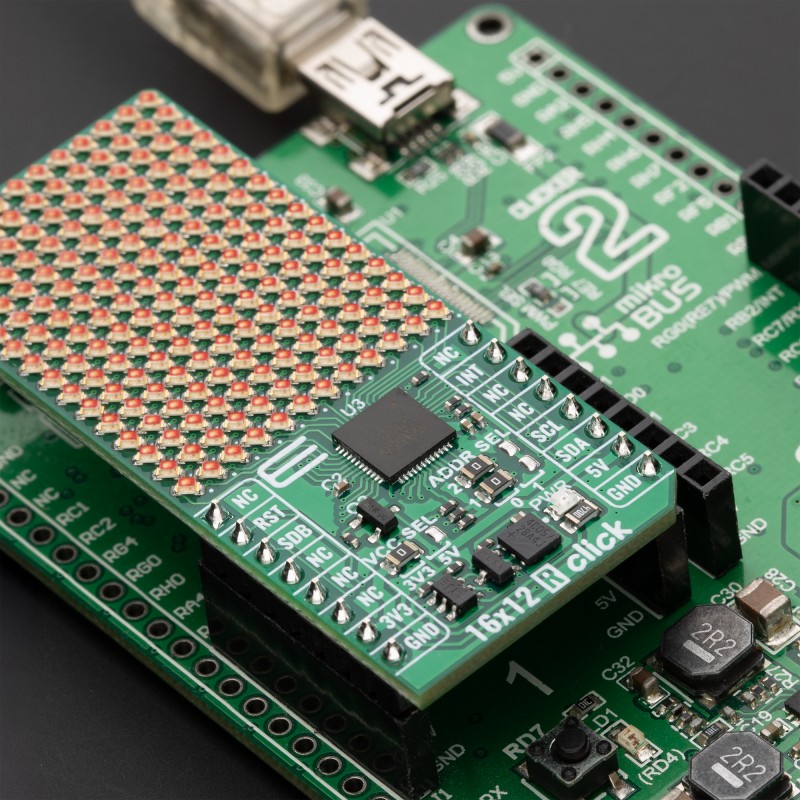

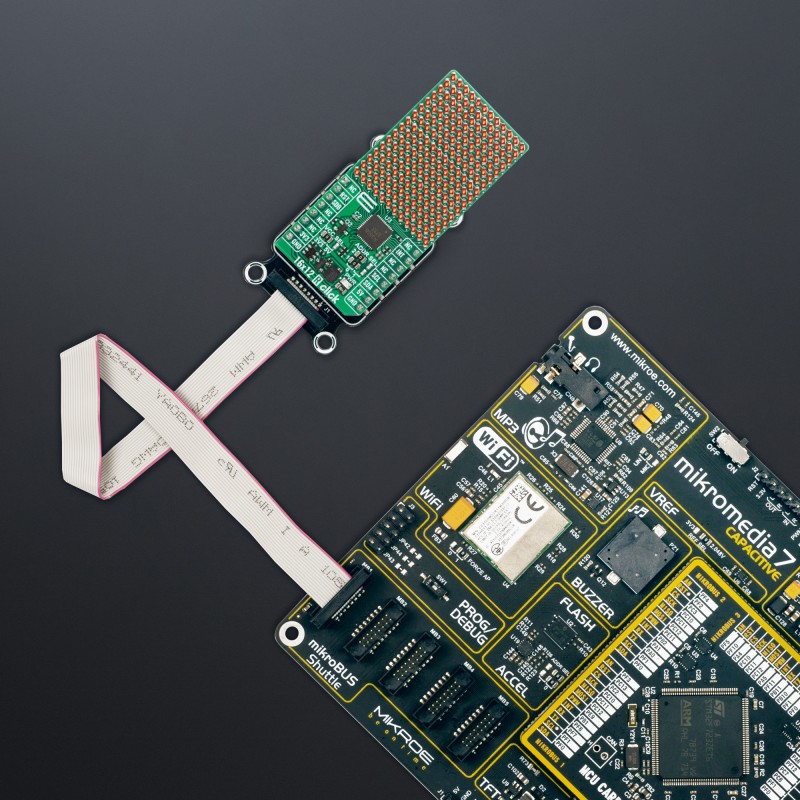

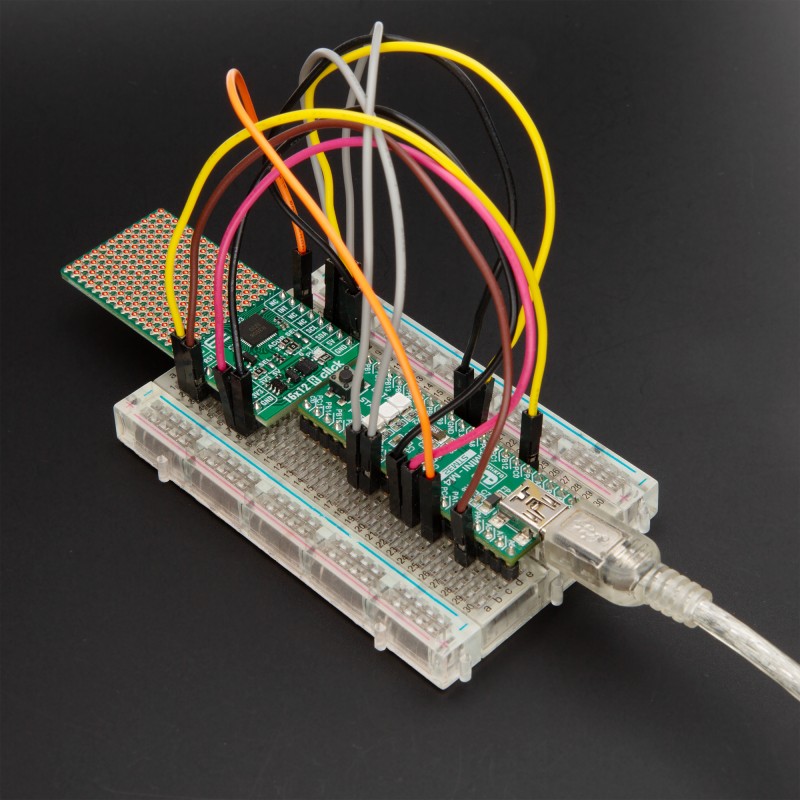

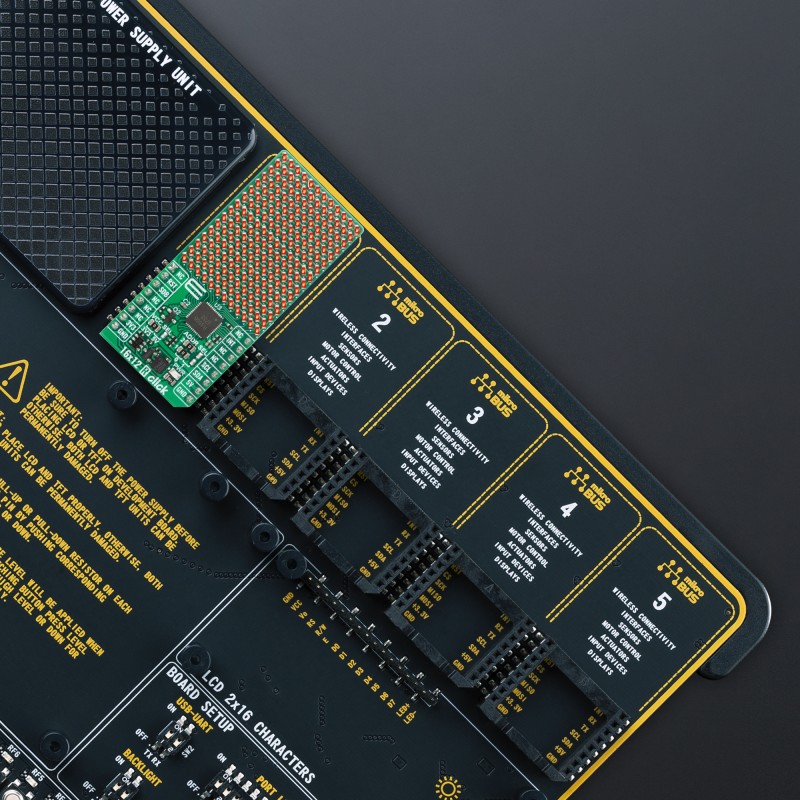

16x12 R Click is based on the IS31FL3733 matrix driver from ISSI, a general-purpose 12×16 LEDs driver with a 1/12 cycle rate. This board integrates a 16x12 red LED display and allows full control of each LED for ON/OFF switching and brightness adjustment, making it an ideal solution for creating advanced visual indicators, status displays, and animation effects. Each of the 192 LEDs can be dimmed individually with 8-bit PWM data, providing 256 steps of linear dimming resolution for precise brightness control.

Communication with the host MCU is achieved through the standard I2C 2-Wire interface, supporting Standard-Mode (100 kHz), Fast-Mode (400 kHz), and Fast-Mode Plus (1 MHz) operation, ensuring compatibility and flexibility across a wide range of applications. The user can configure the I2C address via onboard SMD jumpers labeled ADDR SEL, which set the last three LSBs of the I2C address, allowing multiple devices to coexist on the same bus.

In addition to the I2C communication pins, the IS31FL3733 also uses an INT pin for interrupt signaling, RST pin for chip reset, and an SDB pin for shutdown control, further enhancing functionality and power management. With its ability to manage large LED arrays, 16x12 R Click is suitable for applications such as information panels, event counters, gaming devices, audio spectrum displays, notification systems, and other embedded solutions requiring detailed LED matrix control.

This Click board™ can operate with either 3.3V or 5V logic voltage levels selected via the VCC SEL jumper. This way, both 3.3V and 5V capable MCUs can use the communication lines properly. Also, this Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used as a reference for further development.

Specifications

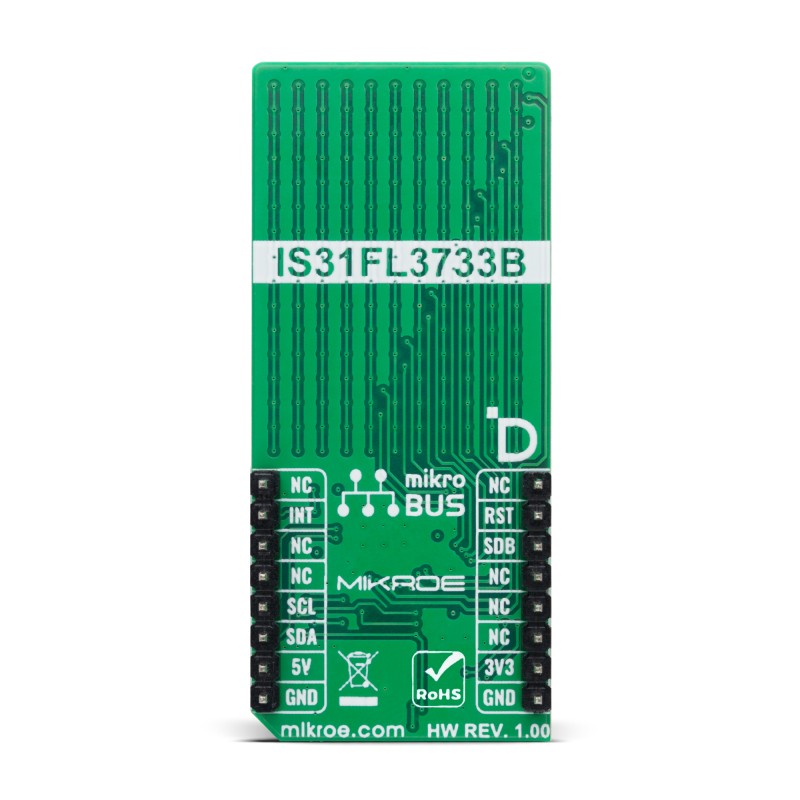

Pinout diagram

This table shows how the pinout on 16x12 R Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes	Pin					Pin	Notes
	NC	1	AN	PWM	16	NC
Reset / ID SEL	RST	2	RST	INT	15	INT	Interrupt
Shutdown Control / ID COMM	SDB	3	CS	RX	14	NC
	NC	4	SCK	TX	13	NC
	NC	5	MISO	SCL	12	SCL	I2C Clock
	NC	6	MOSI	SDA	11	SDA	I2C Data
Power Supply	3.3V	7	3.3V	5V	10	5V	Power Supply
Ground	GND	8	GND	GND	9	GND	Ground

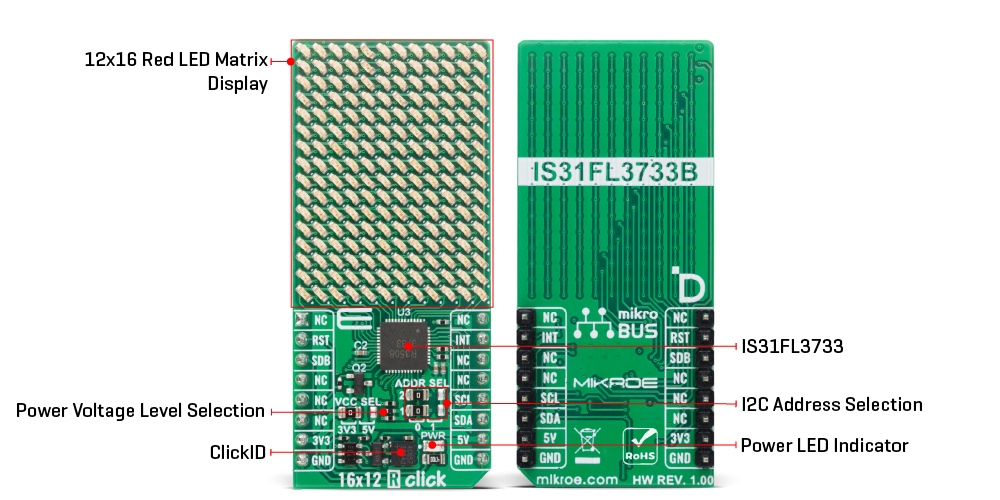

Onboard settings and indicators

16x12 R Click electrical specifications

Software Support

16x12 R Click demo application is developed using the NECTO Studio, ensuring compatibility with mikroSDK's open-source libraries and tools. Designed for plug-and-play implementation and testing, the demo is fully compatible with all development, starter, and mikromedia boards featuring a mikroBUS™ socket.

Example Description

This example demonstrates the usage of the 16x12 R Click board which features a high-brightness red LED matrix display. It displays characters, rotates them in different orientations, prints a scrolling string, and renders a graphical image (MIKROE logo).

Key Functions

• c16x12r_cfg_setup This function initializes Click configuration structure to initial values.
• c16x12r_init This function initializes all necessary pins and peripherals used for this Click board.
• c16x12r_default_cfg This function executes a default configuration of 16x12 R Click board.
• c16x12r_write_char This function writes a single ASCII character to the display.
• c16x12r_write_string This function scrolls a null-terminated ASCII string across the display.
• c16x12r_draw_picture This function draws a picture on the display from a 12-column buffer.

Application Init

Initializes the logger and the Click board and sets the default configuration.

Application Task

Displays single characters and a string in multiple rotations, followed by drawing and inverting the MIKROE logo image.

Application Output

This Click board can be interfaced and monitored in two ways:

• Application Output - Use the "Application Output" window in Debug mode for real-time data monitoring. Set it up properly by following this tutorial.
• UART Terminal - Monitor data via the UART Terminal using a USB to UART converter. For detailed instructions, check out this tutorial.

Additional Notes and Information

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.
