10x10 RGB 2 Click

MIKROE-5976

19 g

Status:

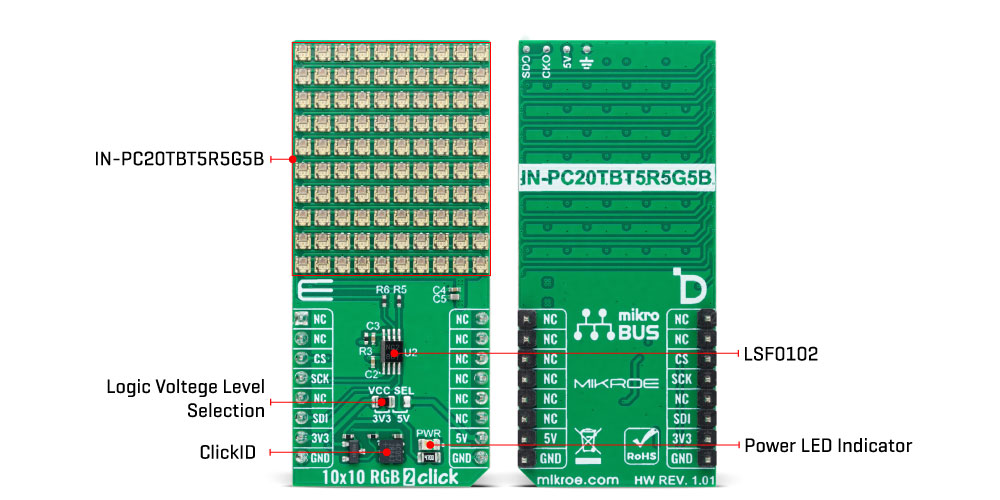

Type LED Matrix Applications Ideal for developing LED-based display screens, decorative LED string lights, and ambient scene lighting, offering a flexible platform for creative lighting projects On-board modules IN-PC20TBT5R5G5B - RGB LED with integrated IC from Inolux Key Features 10x10 matrix of smart RGB LEDs, dual-wire transmission for efficient data handling, integrated control circuit, supports 256 grayscale levels for PWM dimming and 32 levels of brightness control, control via the LSD0102 bidirectional voltage-level translator, and more Interface SPI ClickID Yes Compatibility mikroBUS™ Click board size L (57.15 x 25.4 mm) Input Voltage 3.3V or 5V


OFF

2 5 10

Quantity discount

QTY % PPU
2 5% $75.05
5 10% $71.10
10+ 15% $67.15

$79.00

SAVE:

Was: $79.00

Total Save:

Type LED Matrix

NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
