XPRO-Adapter Click

How does it work?

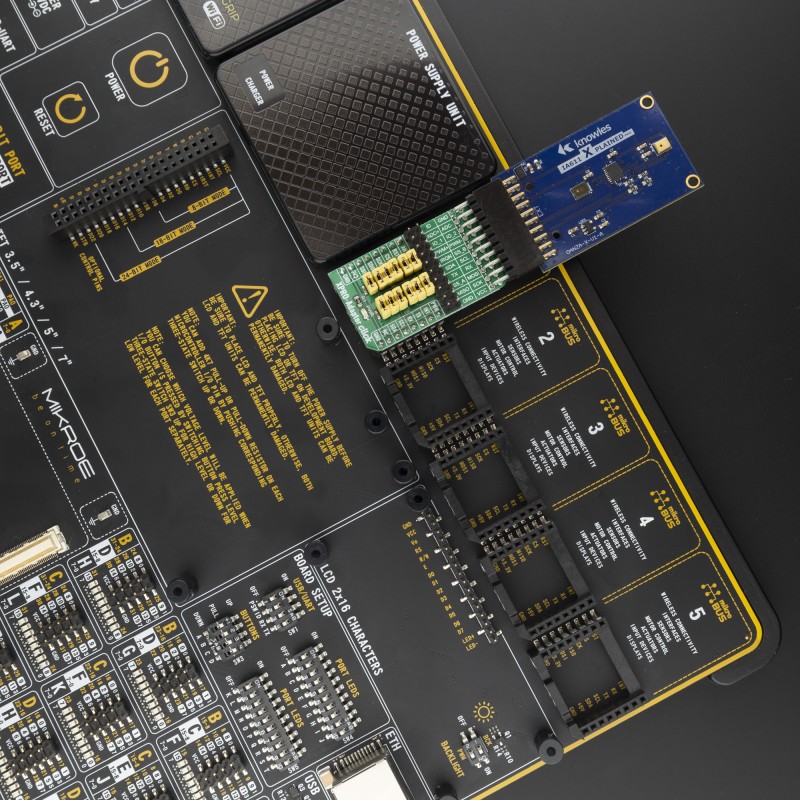

The XPRO-Adapter Click enables a mikroBUS™ 18-pin connector to interface with any Xplained Pro standard 20-pin extension boards from Microchip. Main goal of this boards is to provide interface between this two sockets at the same time offering the flexibility in reconfiguring I/O pinout between this two connectors. This is enabled on extended/duplicated headers so can customize pinout by removing jumpers and using wires to remap board default pinot.

All Xplained Pro boards have one or more dual row, 20-pin, 100mil female extension header. Note that all pins are not always connected. All connected pins follow the defined pin-out description in the table Below which you can find on the XPRO-Adapter Click silkscreen. As mentioned the extension headers can be used to connect a variety of Xplained Pro extensions to mirkoBUS MCU boards or to access the pins of the target MCU on Xplained Pro MCU boards directly.

This boards supports all standard communication interfaces which you may find on expansion boards such as SPI, I2C, UART, PWM (+/-), Analog (+/-). The ID pin which serves as communication line to the ID chip on an Xplaned Pro expansion boards is routed to the expanded mikroBUS connector and can be accessed and remapped if needed by using wire jumpers. The same goes for PWM lines which are available on the board however they need to be remapped to the appropriate mikroBUS pins before usage.

It is designed to be operated only with 3.3V logic levels. A proper logic voltage level conversion should be performed before the Click board™ is used with MCUs with logic levels of 5V.

Specifications

Pinout diagram

This table shows how the pinout on XPRO-Adapter Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes	Pin					Pin	Notes
Analog	AN	1	AN	PWM	16	PWM	External sync
Reset	RST	2	RST	INT	15	INT	Interrupt
SPI Chip Select	CS	3	CS	RX	14	TX	UART TX
SPI Clock	SCK	4	SCK	TX	13	RX	UART RX
SPI Data OUT	SDO	5	MISO	SCL	12	SCL	I2C Clock
SPI Data IN	SDI	6	MOSI	SDA	11	SDA	I2C Data
Power Supply	3.3V	7	3.3V	5V	10	NC
Ground	GND	8	GND	GND	9	GND	Ground

Onboard settings and indicators
