Vibration ERM Motor 9K RPM

Name: Vibration ERM Motor 9K RPM
Brand: Mikroe
SKU: MIKROE-5309
Price: 5.88 USD
Availability: InStock

PID: MIKROE-5309

Weight: 6 g

Status:

Vibration ERM Motor 9K RPM 3V (VC1026B002F) represents the Eccentric Rotating Mass vibration motor (ERM), also known as a pager DC motor, with an offset (non-symmetric) mass attached to the shaft specially designed by Vybronics. This coin-sized vibration motor comes with a metallic case circular shape of 10mm diameter and draws a maximum of 85mA while producing the highest G force/vibration energy of 0.80GRMS (rated speed 9000rpm). It can be used with self-adhesive tape to mount it on your PCB or the inner wall of your product's housing.

NOTE: This vibration ERM motor can also be found in an embedded format in combination with the Vibro Motor Click board™. For more information about this Click board™, visit the Vibro Motor Click product page.

More details

OFF

GO LOCAL

Company	Stock	Price

How does it work?

Vibration ERM Motor 9K RPM 3V (VC1026B002F - old MPN C1026B002F) represents a compact-size Eccentric Rotating Mass (ERM) motor designed by Vybronics. This type of motor contains a small eccentric weight on its rotor, so while rotating, it also produces a vibration effect often used for haptic feedback on many small handheld devices. Due to its circular shape with a diameter of 10mm, the VC1026B002F is often referred to as a coin motor.

The main characteristics of this vibration motor are its supply voltage, in this case, 3VDC, maximum rated current of 85mA, and the rated speed of 9000RPM, which produces the highest G force/vibration energy of 0.80GRMS. It can also be used with self-adhesive tape to mount it on your PCB or the inner wall of your product's housing.

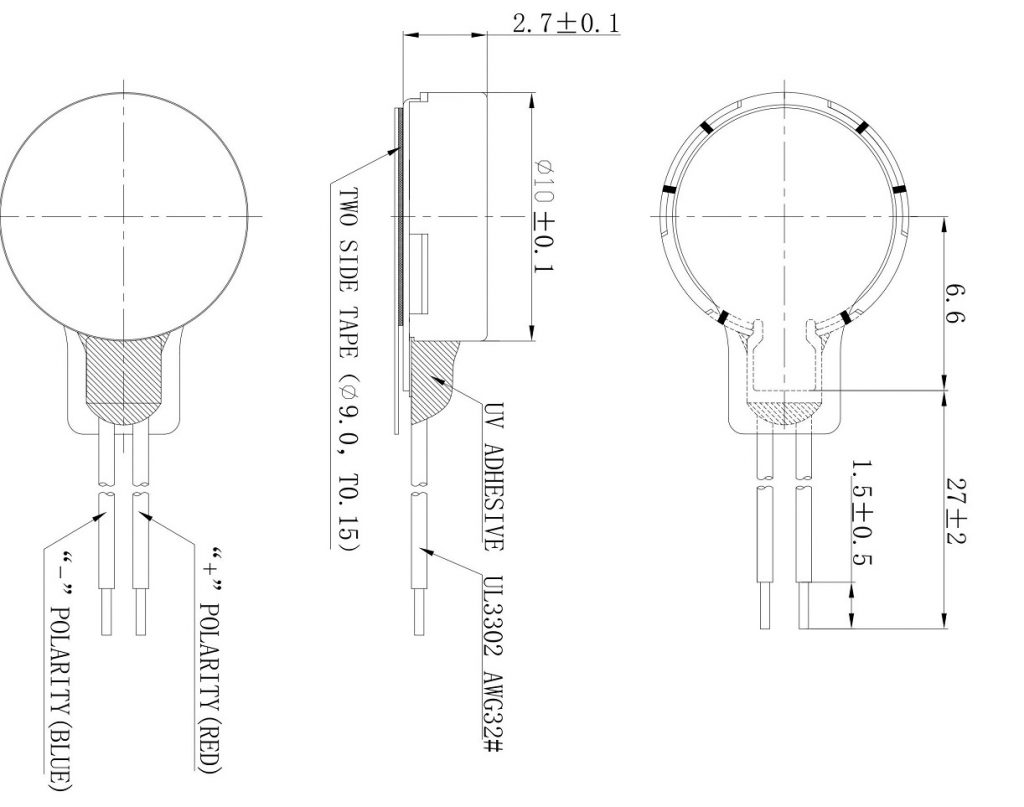

Specifications

Technology Type	BRUSH
Diameter (mm)	10.0
Thickness (mm)	2.7
Rated Voltage (VDC)	3.0
Rated Current MAX (mA)	85
Typical Current (mA)	55
Rated Speed (RPM)	9000
Vibration Force (G)	0.80
