Vibration ERM Motor 8K RPM

Name: Vibration ERM Motor 8K RPM
Brand: MIKROE
SKU: MIKROE-6806
Price: 4.50 USD
Availability: InStock

PID: MIKROE-6806

Weight: 4 g

Status:

Vibration ERM Motor 8K RPM (C1234BE03L27-3.7V) provides strong and reliable tactile feedback in compact electronic devices. With a 12mm diameter and 3.4mm thickness, it is the largest ERM vibration coin motor available, offering the highest vibration force in its class. It operates at a rated voltage of 3.7VDC within a 3-4.5VDC range, delivers a minimum speed of 8000 RPM, and consumes a maximum current of 100mA. The motor supports both CW and CCW rotation and comes with adhesive double-sided tape for secure mounting on PCBs or product housings. With these characteristics, the motor is an ideal choice for high-end mobile phones, personal digital devices, and modern beauty equipment.

More details

OFF

GO LOCAL

Company	Stock	Price

MIKROE products are not subject to U.S. tariffs. Under the U.S. HTSUS classification specified in Annex III, 9903.01.32, subdivision (v)(iii) of U.S. Note 2 and Executive Order 14257, they are exempt from ad valorem duty rates.

How does it work?

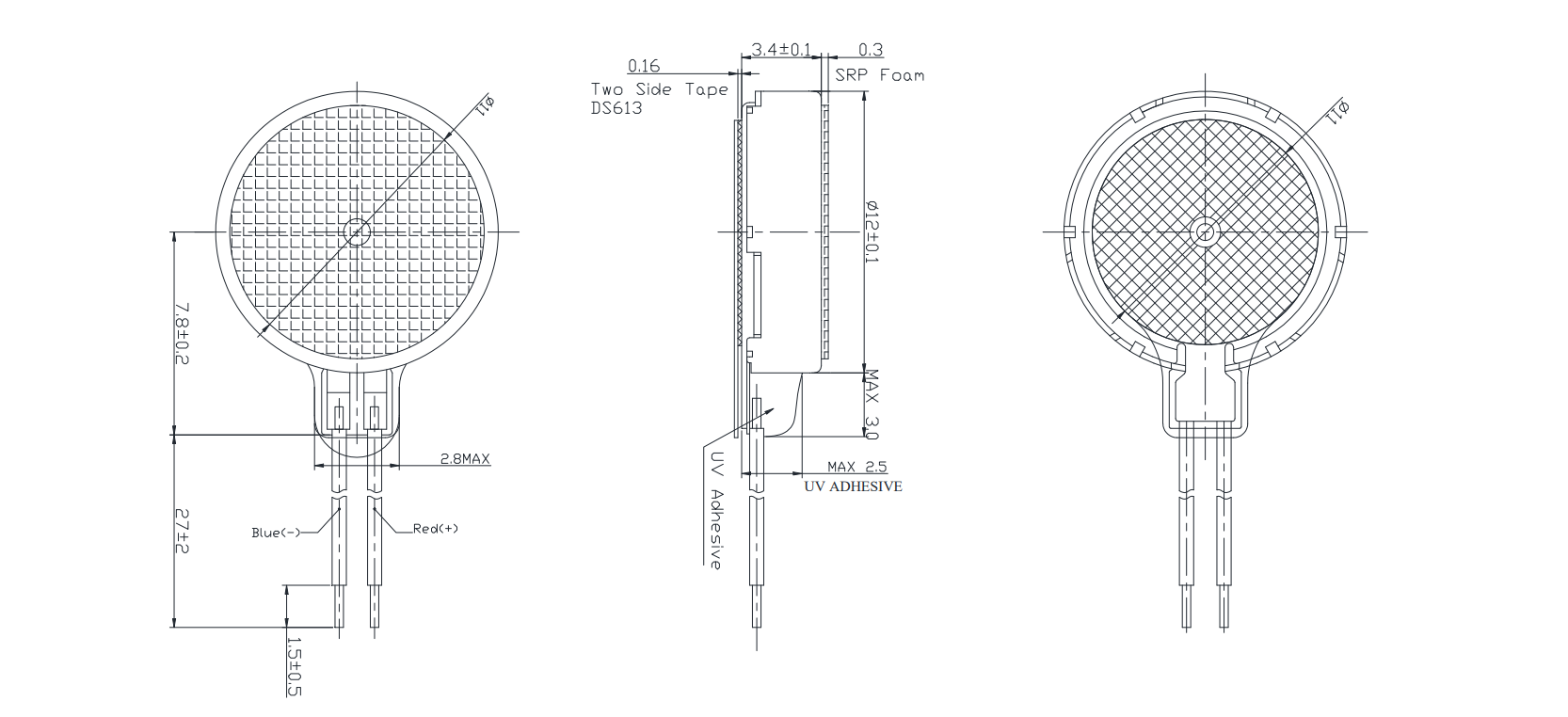

Vibration ERM Motor 8K RPM (C1234BE03L27-3.7V) is the largest ERM micro vibration coin-type motor with unmatched vibration strength within its category. With a diameter of 12mm and a thickness of 3.4mm, this motor stands out as the most powerful option for applications that demand reliable and intense tactile feedback. Designed with an adhesive double-sided tape on its back, it allows secure and permanent attachment to a PCB or the inner housing of a product, ensuring stability during operation.

Made to operate at a rated voltage of 3.7VDC, with an operating range from 3VDC to 4.5VDC, it delivers a minimum rated speed of 8000 RPM while maintaining efficiency with a rated current of 100mA maximum. The motor is capable of rotating in both clockwise (CW) and counterclockwise (CCW) directions, depending on the application requirements. Its combination of high vibration force, compact form factor, and durable mounting solution makes it highly suitable for integration into high-end mobile phones, personal digital devices, and advanced beauty equipment, where strong vibration performance and consistent reliability are essential.
