MIKROE-5350
3 g
Status:
Vibration ERM Motor 10K RPM 3V (VZ43FC1B5640007) represents the Eccentric Rotating Mass vibration motor (ERM), also known as a pager DC motor, with an offset (non-symmetric) mass attached to the shaft specially designed by Vybronics. This SMD reflow solderable vibration motor draws a maximum of 100mA while producing the highest G force/vibration energy of 0.91GRMS (rated speed 10.000rpm), making it an excellent choice for applications requiring crisp haptic feedback and low power consumption.
NOTE: This vibration ERM motor can also be found in an embedded format in combination with the Vibro Motor 2 Click board™. For more information about this Click board™, visit the Vibro Motor 2 Click product page.
This product is no longer in stock
Availability date:
OFF
| Company | Stock | Price |
|---|---|---|
Vibration ERM Motor 10K RPM 3V (VZ43FC1B5640007 - old MPN Z43FC1B5640007L) represents a compact-size Eccentric Rotating Mass (ERM) motor designed by Vybronics. This type of motor contains a small eccentric weight on its rotor, so while rotating, it also produces a vibration effect often used for haptic feedback on many small handheld devices.
The main characteristics of this vibration motor are its supply voltage, in this case, 3VDC, maximum rated current of 100mA, and the rated speed of 10.000RPM, which produces the highest G force/vibration energy of 0.91GRMS.

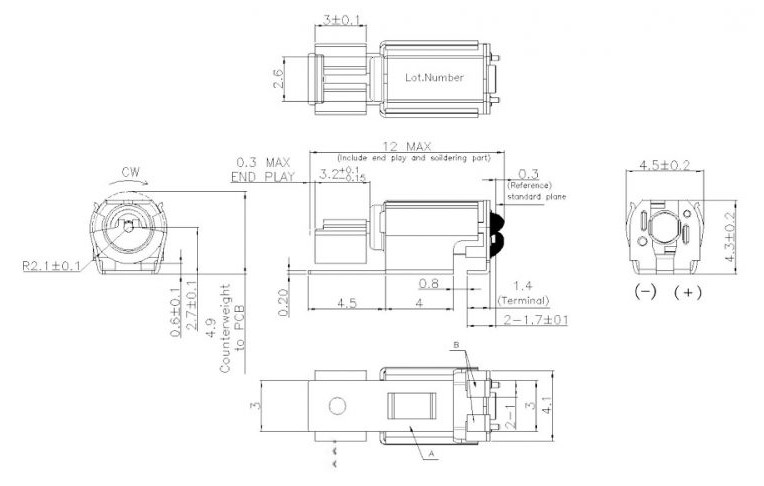

| Height (mm): | 4.3 |
| Body (mm): | 7.5 |
| Overall (mm): | 12.0 |
| Rated Voltage (VDC): | 3.0 |
| Rated Current MAX (mA): | 100 |
| Typical Current (mA): | 77 |
| Rated Speed (RPM): | 10.000 |
| Vibration Force (G): | 0.91 |
