MIKROE-5522
4 g
Status:
Slide Switch TS-13CQN (SS-12D10G5) is a rectangular mechanical switch from ELECSOUND that slides vertically from the open (OFF) position to the closed (ON) position, allowing control of a circuit’s current flow without having to splice a wire manually. It can withstand current and voltage ratings up to 1.5A and 125VAC, ensuring endurance and reliability in power delivery applications.
This product is no longer in stock
Availability date:
OFF
| Company | Stock | Price |
|---|---|---|

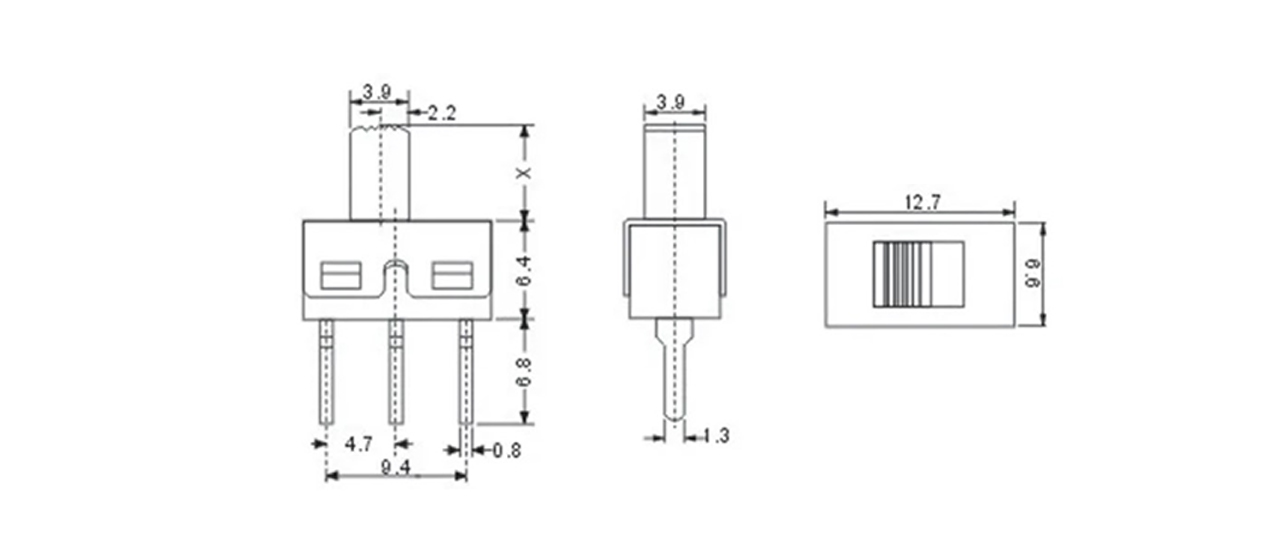

Slide Switch TS-13CQN (SS-12D10G5), also known as a mechanical switch, is a 3-pin toggle straight pin switch from ELECSOUND that slides vertically from the open (OFF) position to the closed (ON) position, allowing control of a circuit’s current flow without having to splice a wire manually. A slide switch is a maintained-contact switch in which the switch stays in one state until it’s actuated into a new state, where it remains until it’s actuated again. The SS-12D10G5 comes in a 9.9x12.7 millimetre (L x W) and 4.7mm pitch package, providing high reliability in power delivery applications withstanding current and voltage ratings up to 1.5A and 125VAC. This slide switch is best used to control current flow in small projects.
.jpg)
| Type: | SPDT |
| Pin Style: | PCPin |
| Current Rating: | 1.5A |
| Voltage Rating: | 125V |
| Pitch: | 4.7mm |
| Mounting Style: | Straight pin (Shrouded) |
| Actuator Style: | Rectangular columnar |
| Actuator Color: | Black |
