MIKROE-6750
10 g
Status:

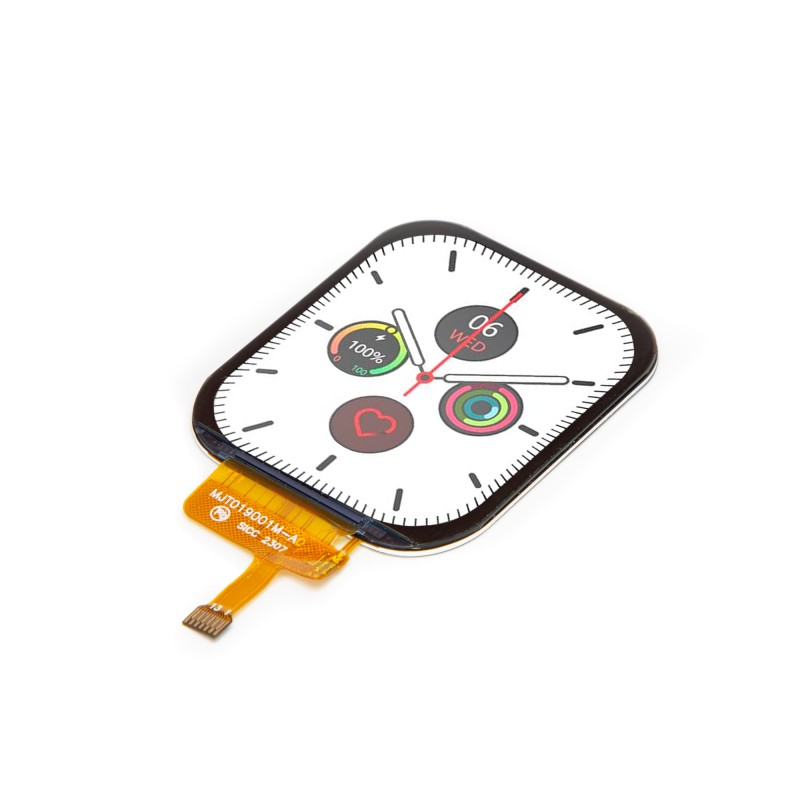

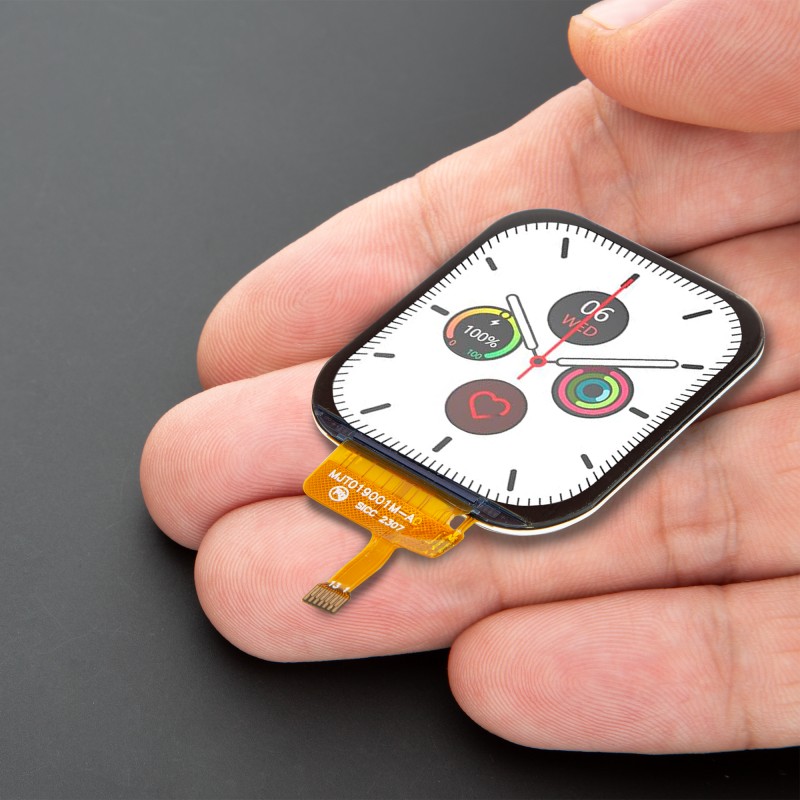

LCD IPS 1.95” Display (ER-TFT1.95-1) is a 1.95-inch round rectangle IPS TFT LCD from EastRising with a resolution of 240x282 pixels, designed for compact applications requiring high visual clarity. It features a 900:1 contrast ratio and a brightness of 450cd/m², ensuring vivid colors and sharp images even in well-lit environments. Thanks to IPS technology, it offers a wide 80-degree viewing angle in all directions. The display is driven by the GC9307 controller and communicates via a 4-wire SPI interface. Its soldering-type FPC simplifies assembly by allowing direct PCB mounting or use with an optional plug-in connector. Suitable for wearable and medical applications, such as smartwatches, fitness trackers, glucose meters, and patient monitors, the ER-TFT1.95-1 combines clarity, reliability, and design flexibility in a small form factor.
This product is no longer in stock
Availability date:
OFF
Company | Stock | Price |
---|---|---|
LCD IPS 1.95” Display (ER-TFT1.95-1) is a compact 1.95-inch round rectangle IPS TFT LCD display from EastRising, offering a high-resolution output of 240x282 pixels. With a typical contrast ratio of 900:1, this display delivers excellent image quality with deep blacks and vivid color reproduction, making it ideal for visually demanding applications. Thanks to its IPS (In-Plane Switching) technology, it supports a wide viewing angle of 80 degrees in all directions - left, right, up, and down - ensuring consistent color and clarity regardless of perspective.

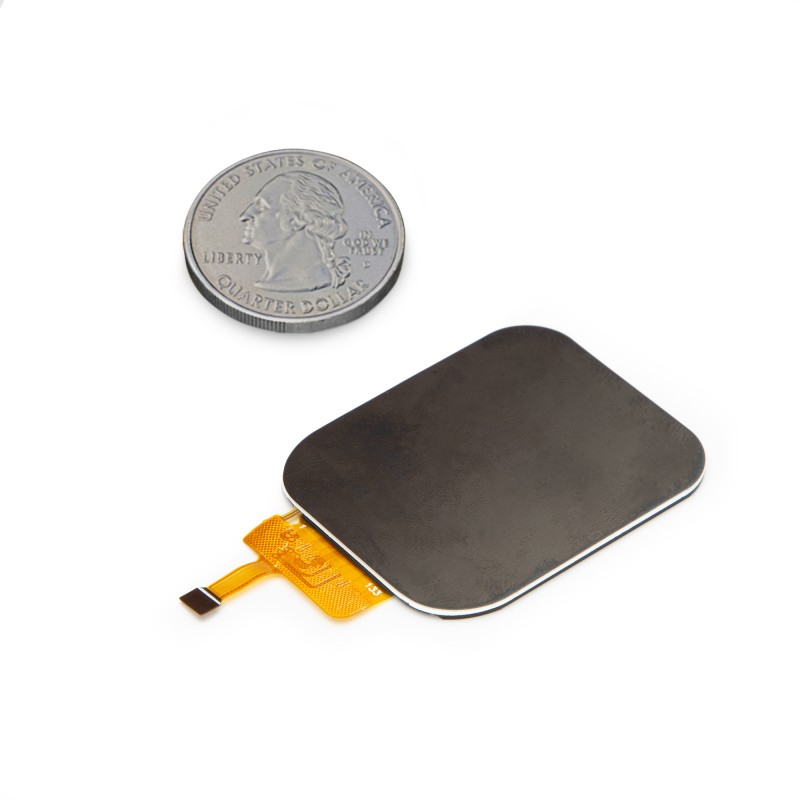

The display achieves a typical brightness of 450cd/m², which guarantees clear readability even under strong ambient light. It features a GC9307 display controller and communicates through a 4-wire SPI interface, providing reliable and efficient data exchange. The ER-TFT1.95-1 comes with a soldering-type FPC (Flexible Printed Circuit), which allows direct mounting onto a PCB, eliminating the need for a connector. However, an optional plug-in FPC connector is available for applications that require frequent disconnection and reusability.

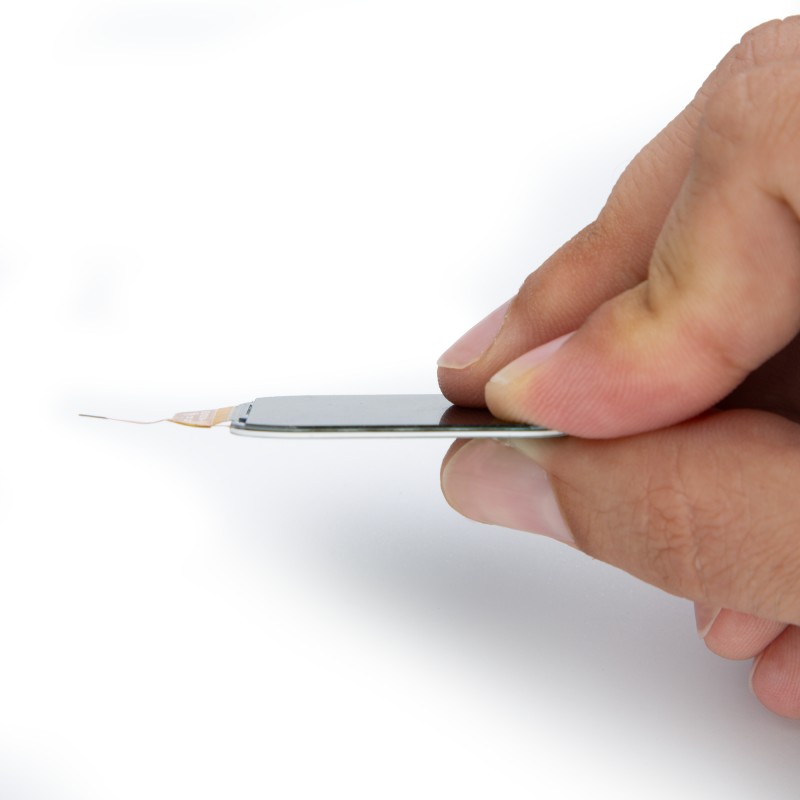

With its compact dimensions of 34.30mm x 42.02mm x 1.5mm and an active area of 32.20mm x 37.97mm, this display fits well into space-constrained devices. It is capable of displaying 4K, 65K, or 262K colors, and features a dot pitch of 0.125mm by 0.125mm. The backlight emits a uniform white light, and the module operates on a typical 3V power supply. Designed without a touch panel and not intended for direct sunlight readability, the ER-TFT1.95-1 is particularly well-suited for integration into wearable electronics such as smartwatches, fitness trackers, and health monitoring devices, as well as medical applications like blood pressure monitors, glucose meters, and patient monitoring systems.
Specification | |
---|---|
Part Number: | ER-TFT1.95-1 |
Display Type: | TFT-LCD Color |
Display Format: | 240x282 px |
Controller: | GC3907 |
Appearance: | RGB |
Diagonal Size: | 1.95" |
Connection: | Soldering FPC |
Dimensions (mm): | 34.3x42.02x1.5 |
Visual Area (mm): | 32.34x39.82 |
Active Area (mm): | 32.20x37.97 |
Dot (Pixel) Pitch (mm): | 0.125x0.125 |
Touch Panel Optional: | No |
Sunlight Readable: | No |
Contrast Ratio: | 900:1 |
Viewing Angle Range: | 80° in each direction |
Brightness: | 450cd/m2 |
Backlight Color: | White |
Power Supply: | 3V |
Colors: | 4K/65K/262K |
