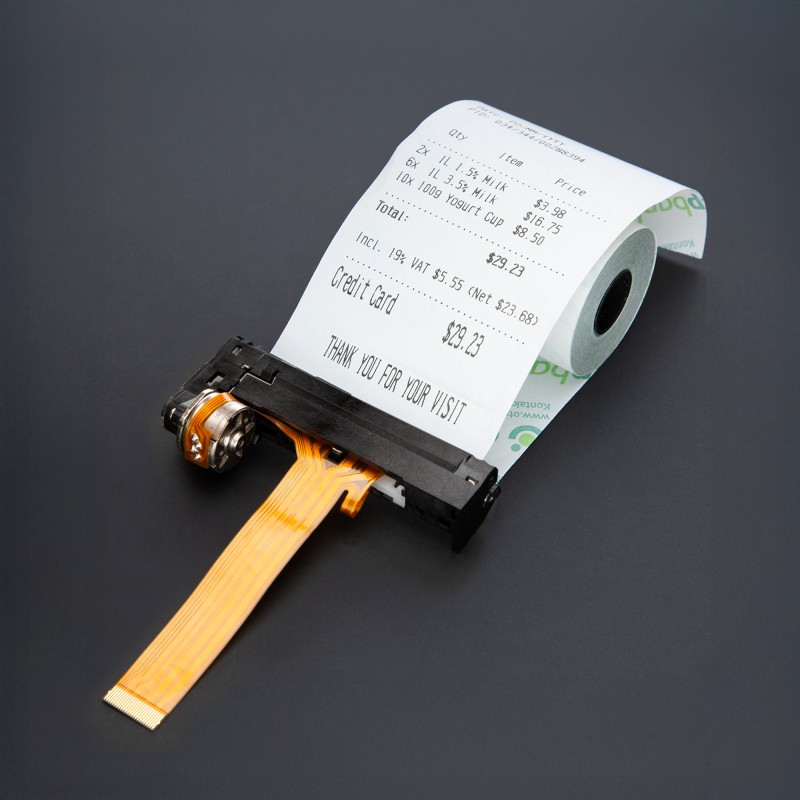

High Speed Thermal Print Head - 4.2V-9.5V (M23-DH-H69) is designed for fast, high-resolution thermal printing in compact electronic systems. It features a direct line thermal printing method with a resolution of 8 dots/mm, a 48mm maximum print width, and supports speeds up to 100mm/s. Operating within a voltage range of 4.2V to 9.5V, it includes a detachable roller for easy paper loading and maintains low noise output. With its compact dimensions and curved paper path, it’s ideal for portable printers, point-of-sale systems, kiosks, and other embedded printing applications.

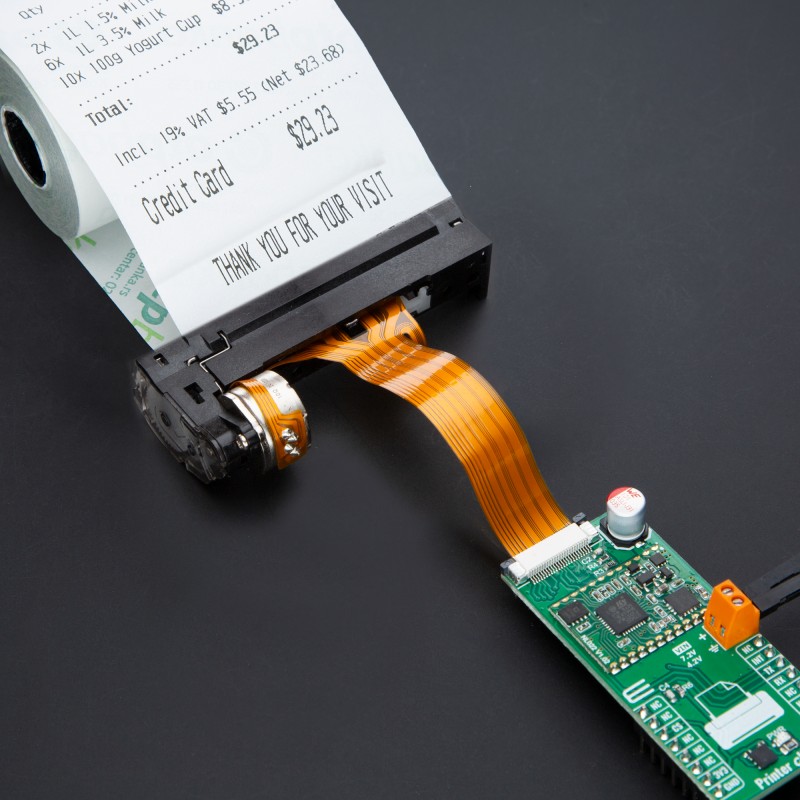

NOTE: High Speed Thermal Print Head - 4.2V-9.5V (M23-DH-H69) is fully compatible with the Printer Click, which controls and operates the thermal printer head. For more details and to purchase Printer Click, please visit its product page.
This product is no longer in stock
Availability date:
OFF
Company | Stock | Price |
---|---|---|
High Speed Thermal Print Head - 4.2V-9.5V (M23-DH-H69) is an advanced printing component made to deliver high-resolution thermal printing within a broad operating voltage range of 4.2V to 9.5V. It supports a logic voltage of 2.7V to 5.0V, offering flexible integration with various electronic systems. Designed for direct line thermal printing, it ensures clear and precise output through its high-density configuration of 8 dots per millimeter, totaling 384 dots across a maximum printing width of 48mm. Compatible with standard 57.5mm wide thermal paper, the print head supports a curved paper path and enables adjustable printing speeds, with a maximum performance of up to 100mm per second, depending on the driving power and the thermal paper's sensitivity.

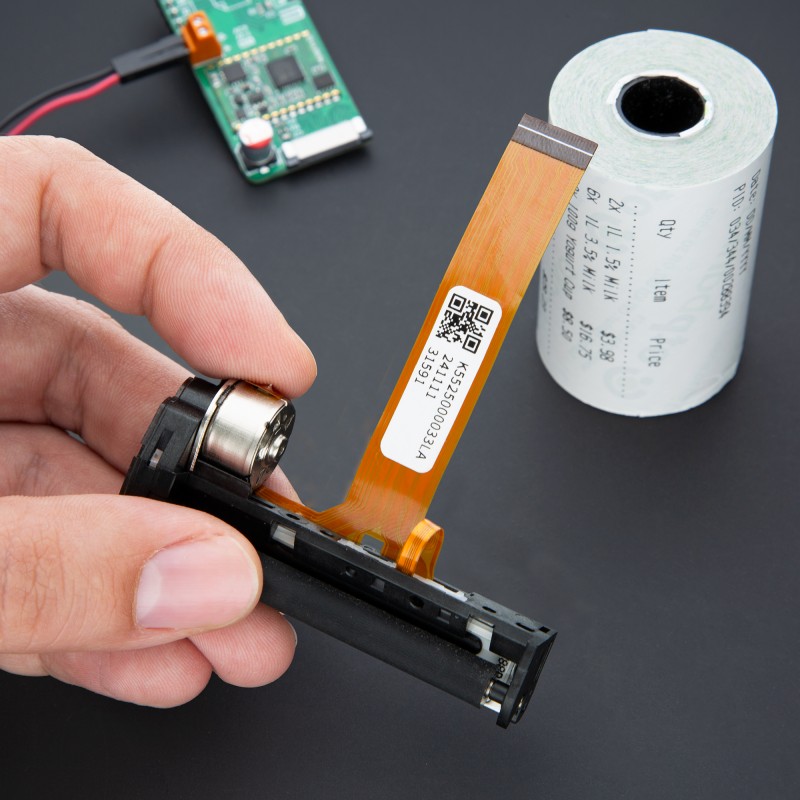

In addition to its performance, this print head stands out for its lightweight and compact structure, measuring only 67.3mm in width, 18.11mm in depth, and 31.92mm in height, making it suitable for space-constrained applications. Its detachable rubber roller mechanism simplifies paper loading, enhancing operational convenience and maintenance. Using thermal line dot technology, the print head operates with minimal noise, making it ideal for use in environments where quiet functionality is essential. This combination of speed, precision, and ease of use makes the High Speed Thermal Print Head a reliable choice for modern thermal printing needs.
Specification | |
---|---|
Voltage Ratings (V): | 4.2 - 9.5 |
Printing Method: | Direct Thermal Line Dot Printing |
Total Dots Per Line: | 384 |
Resolution: | 8 dots/mm |
Paper Width (mm): | 57.5±0.5 |
Maximum Print Speed (mm/s): | 100 |
Dimensions (mm): | 67.3x18.25x31.9 |
