MIKROE-5551
68 g
Status:
GNSS L-Band Active Antenna (LBAND01D-S6-00) is an active patch antenna from Inpaq Technology, optimized for the GNSS L-Band. The antenna has a 3m cable with SMA PLUG male connector on the end, allowing easy positioning. This is the right product if you want a perfect active antenna for positioning and timing system applications.
NOTE:
This product is no longer in stock
Availability date:

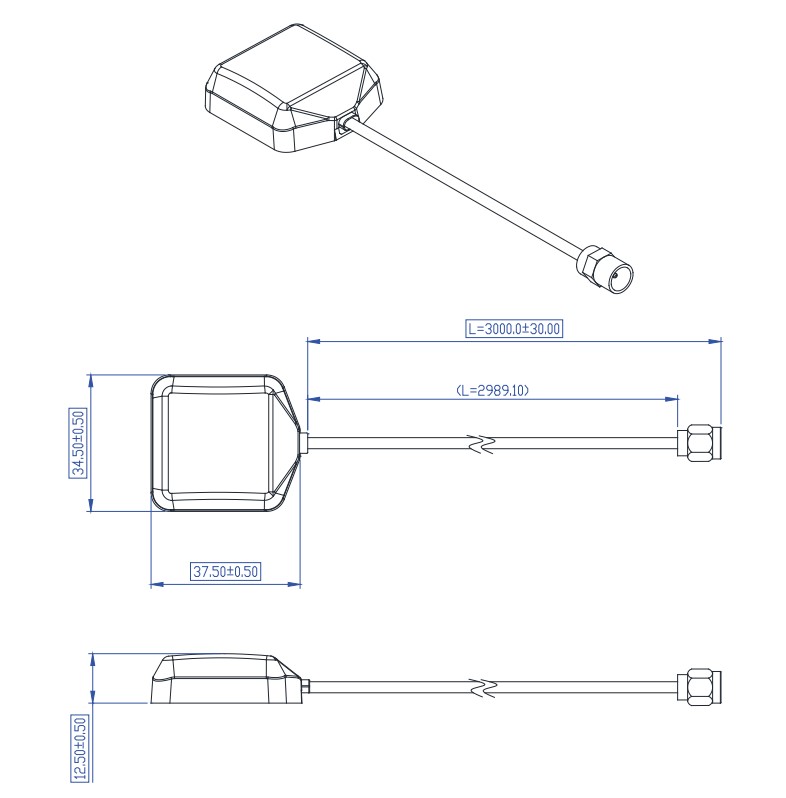

GNSS L-Band Active Antenna (LBAND01D-S6-00) is an active patch 50Ω antenna from Inpaq Technology that supports GNSS L-Band (frequency range from 1525 up to 1559MHz) applications. It offers excellent performance with its high gain and efficiency for tracking, fleet management, navigation, and many other tracking applications. The magnetic mounting type antenna, with dimensions of 37.5x34.5x12.5mm, connects to the device by a 3m long cable with SMA PLUG male connector. It provides superior performance when coupled with Click boards™ that require highly accurate location abilities such as RTK, which can be found in our offer.
| Frequency Bands (MHz): | 1525 ~ 1559 |
| Technology: | GNSS L-Band (active) |
| Cable Length (mm): | 3000 |
| Connector Type: | SMA PLUG Male (center pin) |
| Mounting Type: | Magnetic |
| Dimensions (mm): | 37.5 × 34.5 × 12.5 |
