MIKROE-6590
10 g
Status:

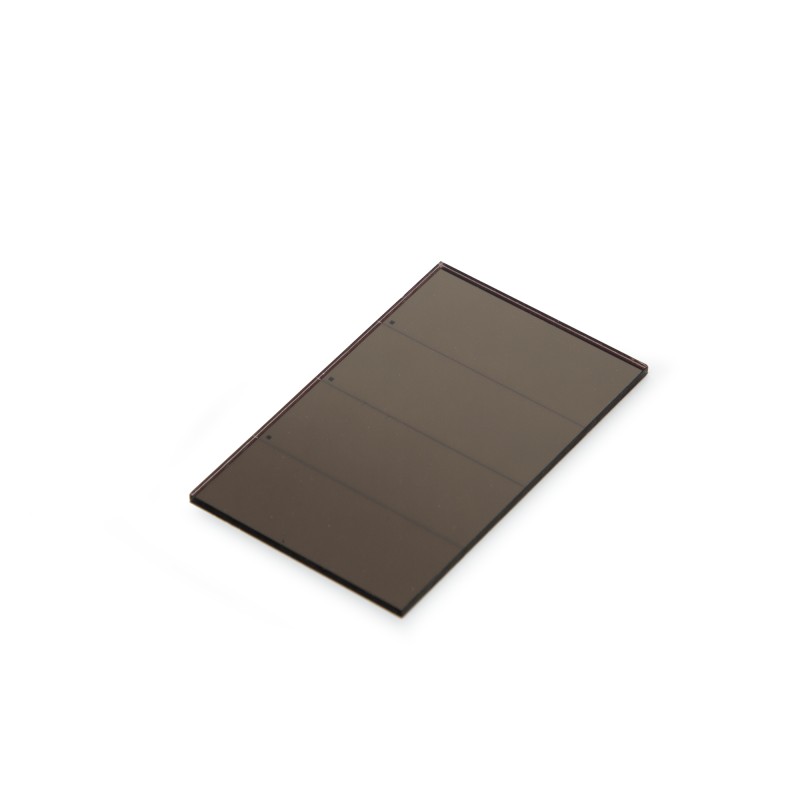

Glass Indoor Solar Cell (1-cell) – 41x26mm (AMG-1401C), commonly known as Amorphous Silicon Solar Cell (Amorton), is a hydrogenated amorphous silicon (a-Si:H) solar cell designed for energy harvesting in indoor environments. The high-performance AMG-1401C solar cell is built on a glass substrate for optimal efficiency and durability. With a nearly perfect black-reflective surface, it achieves over 20% higher efficiency than conventional models, generating approximately 8μW/cm² at 200 lux while maintaining a slim 1.1mm thickness. Its compact dimensions (41.4x26.1mm) allow for space optimization, and its 2.2V output ensures compatibility with various power management ICs. Ideal for low-light and artificial light environments, it provides sustainable and reliable power for IoT sensors, watches, asset trackers, sensor nodes, and remote controls.

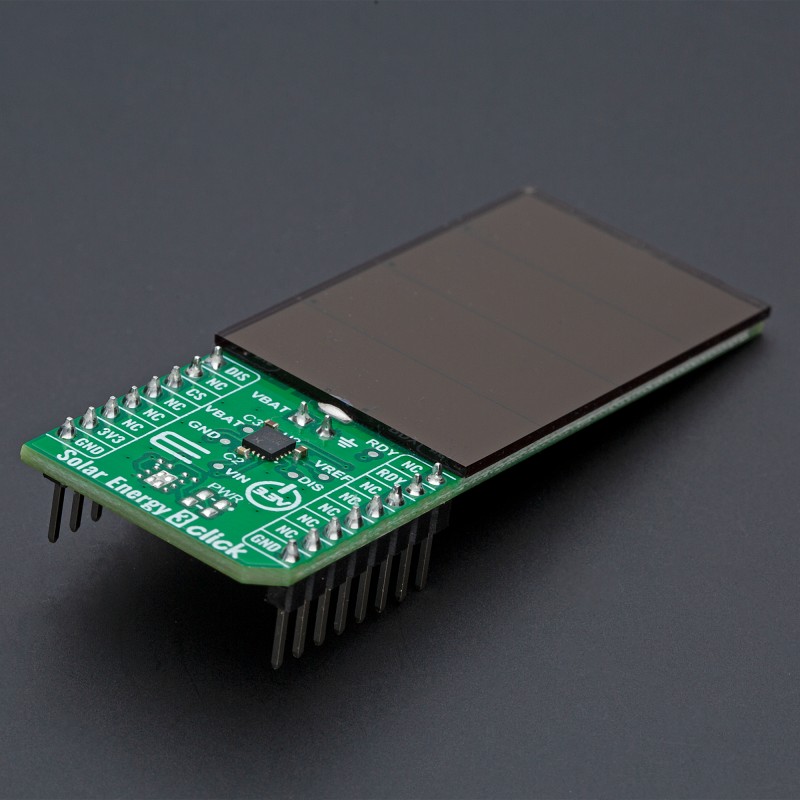

NOTE: This solar cell can also be found in an embedded format in combination with the Solar Energy 3 Click board™. For more information about this Click board™, visit the Solar Energy 3 Click product page.
This product is no longer in stock
Availability date:
OFF
Company | Stock | Price |
---|---|---|

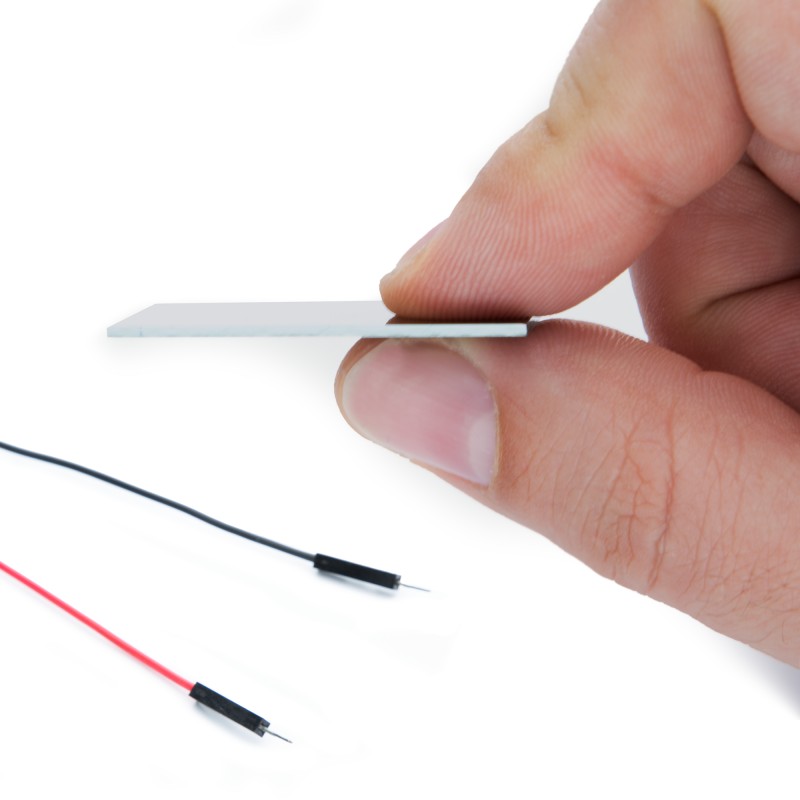

Glass Indoor Solar Cell (1-cell) – 41x26mm (AMG-1401C), commonly known as Amorphous Silicon Solar Cell (Amorton), is a hydrogenated amorphous silicon (a-Si:H) solar cell for powering a variety of indoor and outdoor applications. The AMG-1401C stands out due to its nearly perfect black-reflective surface, which contributes to a significantly improved efficiency of over 20% compared to conventional models. Built on a glass substrate with a thickness of just 1.1mm, it is capable of generating approximately 8μW/cm² under illumination of 200lux per active area. One of its key advantages is its ability to harvest energy even in low-light and artificial lighting conditions, ensuring sustainable and consistent performance. It is particularly well-suited for devices such as IoT sensors, watches, asset trackers, sensor nodes, and remote controls.

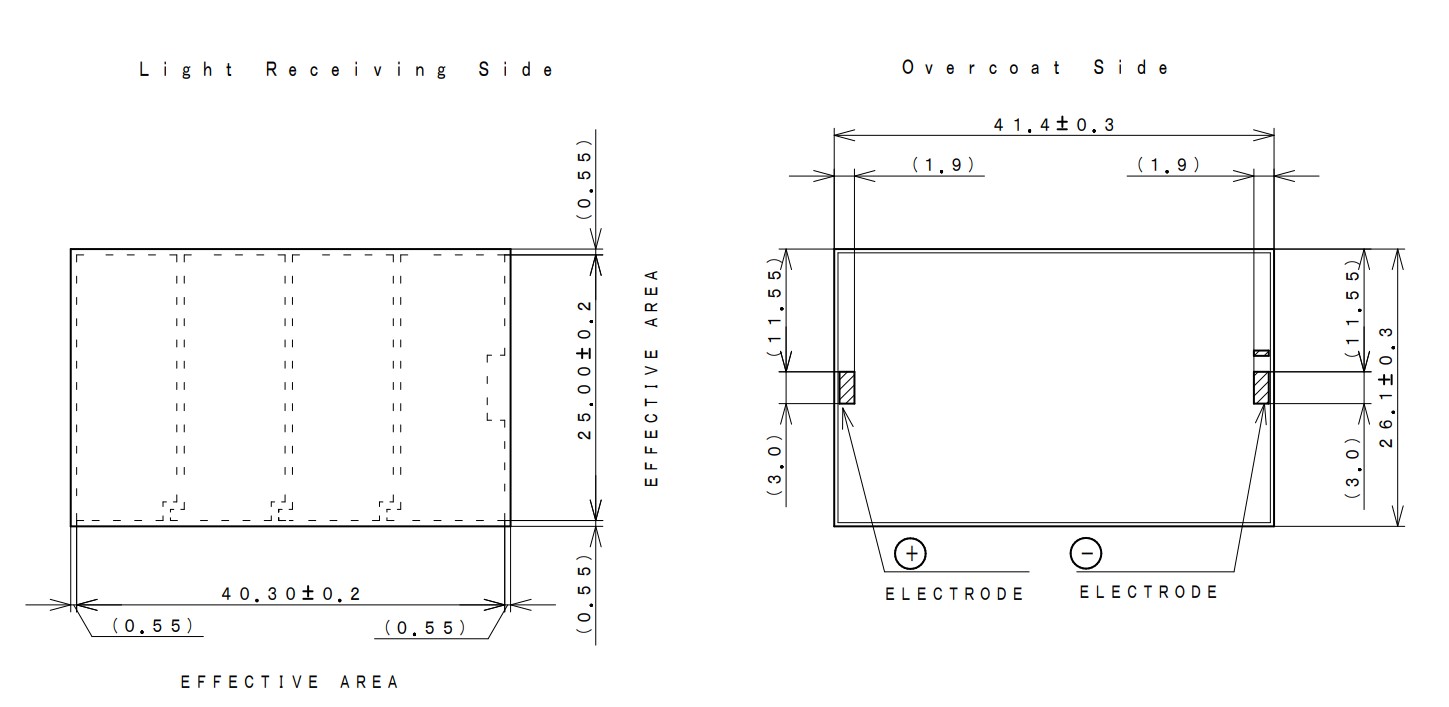

Designed with space optimization in mind, the external dimensions of the AMG-1401C are only marginally larger than the active area itself, allowing for efficient material use in the final application. With dimensions of 41.4x26.1mm, the solar cell can achieve a maximum power output of 77.8μW at 200lux. Additionally, it operates at a voltage of 2.2V, making it compatible with a wide range of power management integrated circuits (ICs) available on the market.
Specification | |
---|---|
Open-Circuit Voltage (V): | 2.7 |
Short-Circuit Current (µA): | 43.3 |
Power Rating (µW): | 74.3 |
External dimensions (WxLxH mm): | 41.4 x 26.1 x 1.1 |
