MIKROE-5352
2 g
Status:
Dot matrix 0.7in 5x7 Red (SZ420757N) represents a dot matrix display suitable to generate alpha, numeric, or custom character output specially designed by Wuxi Ark Technology Electronic. The SZ420757N LED dot matrix module comes in a 7x5 stylish configuration with round, and dot-like (1.9mm) LED elements producing clean and uniform patterns. These parts are optically isolated, with no light bleeding between the adjacent LED cells. It is suitable for various applications requiring a visible display of text or graphics, such as public clock displays, temperature displays, and similar.
NOTE: This Dot Matrix display can also be found in an embedded format in combination with the 7x10 R Click board™. For more information about this Click board™, visit the 7x10 R Click product page.
This product is no longer in stock
Availability date:
OFF
| Company | Stock | Price |
|---|---|---|

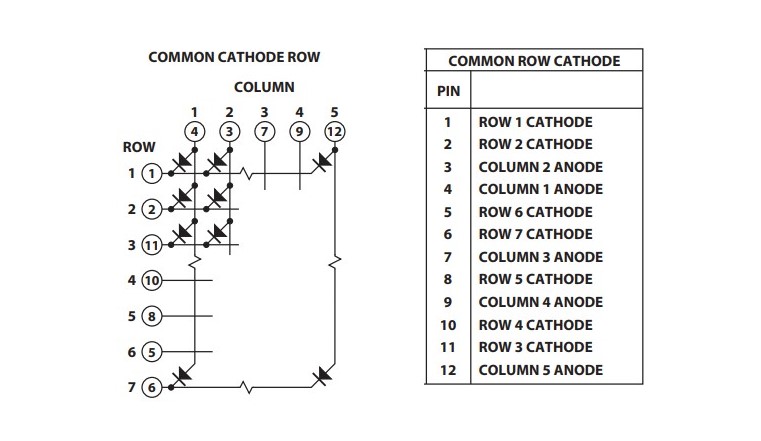

Dot matrix 0.7in 5x7 Red (SZ420757N) represents a LED dot matrix display suitable to display graphics or letters efficiently designed by Wuxi Ark Technology Electronic. In a LED dot matrix display 7x5 configuration like this, the LEDs are located at the column and row intersections of the matrix. LEDs in the same row are connected, as are LEDs in the same column. Also, these LEDs are round, dot-like (1.9mm), and produce clean and uniform patterns.
These parts are optically isolated, with no light bleeding between the adjacent LED cells. Additionally, turn-ON and turn-OFF times of the matrix cells are optimized for clean and fluid display performance, with no flickering or lag.

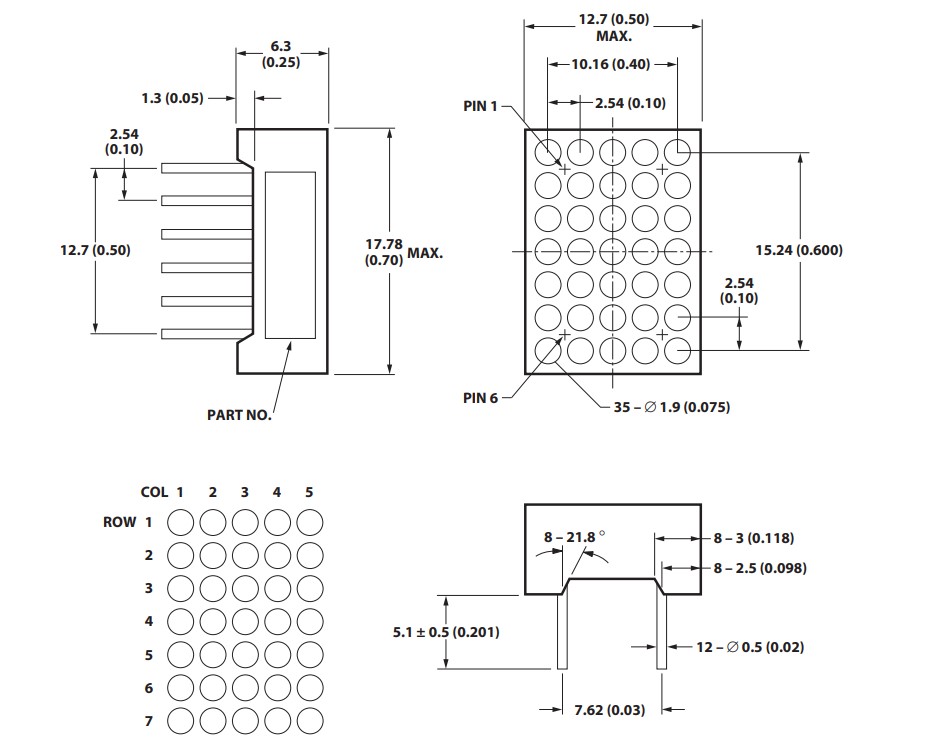

| Height (mm): | 6.3 |
| Width (mm): | 12.7 |
| Length (mm): | 17.8 |
| Type: | Common Cathode |
| Configuration: | 5x7 |
| LED Color: | Red |
| Dot Matrix (mm): | 1.9 |
| Liminous @If=10mA: | 8mcd |
