Clock Gen 3 Click features a low power self-contained digital frequency source providing a precision frequency from 1kHz to 68MHz, set through a serial port. This Click board™, an I2C configurable clock generator, features the LTC6904 from Analog Devices and requires no external components other than a power supply bypass capacitor, and it operates over a single wide supply voltage range of 2.7V to 5.5V. The LTC6904 features a proprietary feedback loop that linearizes the relationship between digital control settings and frequency. It has many features that make it attractive for various applications such as a microcontroller clock source, clock source for a switched capacitor filter, or general replacement for a DAC/VCO combination.
Clock Gen 3 Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
This product is no longer in stock
Availability date:
Clock Gen 3 Click uses the LTC6904 IC, 1kHz to 68MHz Serial Port Programmable Oscillator from Linear Technology. The LTC6904 is a low power self-contained digital frequency source providing a precision frequency from 1KHz to 68MHz, which is set by the I2C interface operaing up to 3.4 Mbps. This Click board™ features on-board I2C address jumpers, pull-up resistors, a power supply bypass capacitor, and a power LED. The maximum frequency error is 1.1% or 1.6% when operating with a flexible power supply voltage range from 2.7V to 5V, which makes it suitable for 3.3V and 5V MCUs.
In most frequency ranges, the output of the Clock Gen 3 Click is generated as a division of the higher internal clock frequency. This helps to minimize jitter and subharmonics at the output of the device. In the highest frequency ranges, the division ratio is reduced, which will result in a greater cycle-to-cycle jitter as well as spurs at the internal sampling frequency. Because the internal control loop runs at 1MHz to 2MHz without regard to the output frequency, output spurs separated from the set frequency by 1MHz to 2MHz may be observed. These spurs are characteristically more than 30dB below the level of the set frequency.
The LTC6904 communicates with the MCU using the standard I2C 2-wire interface. The two bus lines, SDA and SCL, must be HIGH when the bus is not in use. If the I2C interface is not driven with a standard I2C compatible device, care must be taken to ensure that the SDA line is released during the ACK cycle to prevent bus contention. The LTC6904 can respond to one of two 7-bit addresses. The first 6 bits (MSBs) have been factory programmed to 001011. The address pin, ADR (Pin 4) is programmed by the user and determines the LSB of the slave address and it can be selected by an onboard SMD jumper labeled as ADD SEL allowing selection of the slave address LSB.
This Click board™ can be supplied and interfaced with both 3.3V and 5V without the need for any external components. The onboard SMD jumper labeled as VCC SEL allows voltage selection for interfacing with both 3.3V and 5V microcontrollers. More information about the LTC6904 can be found in the attached datasheet. However, this Click board™ comes equipped with a library that contains easy to use functions and an example that may be used as a reference for development.
Type
Clock generator
Applications
Can be used as a microcontroller clock source, clock source for a switched capacitor filter, or general replacement for a DAC/VCO combination.
On-board modules
LTC6904
Key Features
Precision frequency generator from 1KHz to 68MHz, minimal jitter and subharmonics at the output, on-board I2C address jumpers
Interface
GPIO,I2C
Feature
No ClickID
Compatibility
mikroBUS™
Click board size
M (42.9 x 25.4 mm)
Input Voltage
3.3V,5V

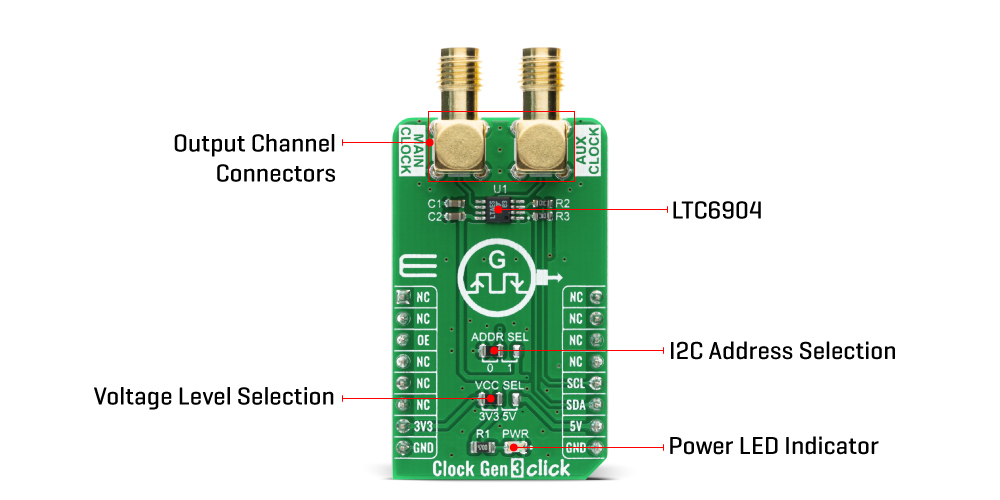

This table shows how the pinout on Clock Gen 3 Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
Label | Name | Default | Description |
---|---|---|---|
LD1 | PWR | - | Power LED Indicator |
JP1 | VCC SEL | Right | Power Supply Voltage Selection 3V3/5V, left position 3V3, right position 5V |
JP2 | ADDR SEL | Left | I2C Address Selection: Left position 0, Right position 1 |
CN1 | CN1 | - | Main Clock Output SMA connector |
CN2 | CN2 | - | Auxiliary Clock output SMA connector |
Description | Min | Typ | Max | Unit |
---|---|---|---|---|
Supply Voltage | 2.7 | - | 5.5 | V |
SMBus Operating Frequency | 10 | - | 100 | kHz |
Output Impedance | - | 50 | - | Ω |
Operating Temperature Range | -40 | +25 | +85 | °C |
We provide a library for the Clock Gen 3 Click on our LibStock page, as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.
Library Description
The library contains basic functions for working with Clock Generator 3 click.
Key functions:
void clockgen3_set_freq( float freq )
- Sets Frequencyvoid clockgen3_config( uint8_t cfg )
- ConfigurationExamples description
The application is composed of three sections :
void application_task ( ) { mikrobus_logWrite( ">> Set Freq = 12.000 MHz", _LOG_LINE ); clockgen3_set_freq( 12000.0 ); Delay_ms( 3000 ); mikrobus_logWrite( ">> Set Freq = 8.000 MHz", _LOG_LINE ); clockgen3_set_freq( 8000.0 ); Delay_ms( 3000 ); mikrobus_logWrite( ">> Set Freq = 5.500 MHz", _LOG_LINE ); clockgen3_set_freq( 5500.0 ); Delay_ms( 3000 ); mikrobus_logWrite( ">> Set Freq = 2.700 MHz", _LOG_LINE ); clockgen3_set_freq( 2700.0 ); Delay_ms( 3000 ); mikrobus_logWrite( ">> Set Freq = 800 KHz", _LOG_LINE ); clockgen3_set_freq( 800.0 ); Delay_ms( 3000 ); mikrobus_logWrite( ">> Set Freq = 200 KHz", _LOG_LINE ); clockgen3_set_freq( 200.0 ); Delay_ms( 3000 ); mikrobus_logWrite( "----------------------------", _LOG_LINE ); }
The full application code, and ready to use projects can be found on our LibStock page.
Other mikroE Libraries used in the example:
Additional notes and informations
Depending on the development board you are using, you may need USB UART click, USB UART 2 click or RS232 click to connect to your PC, for development systems with no UART to USB interface available on the board. The terminal available in all MikroElektronika compilers, or any other terminal application of your choice, can be used to read the message.
This Click board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
For more information about mikroSDK, visit the official page.
NOTE: Please be advised that any peripheral devices or accessories shown connected to the Click board™ are not included in the package. Check their availability in our shop or in the YMAN section below.
