Maximize precision in high-performance systems with the 9913-05-20TR relays for advanced load control
Relay 6 Click is a compact add-on board based on the four ultra-miniature SMD reed relays, the 9913-05-20TRs from Coto Technology, designed for high-precision load control and monitoring applications.
KEY FEATURES:
- Ultra-miniature SMD reed relays: Four Coto Technology 9913-05-20TR reed relays with the industry's smallest footprint.
- High reliability: Ensuring long-lasting performance, the relays feature hermetically sealed contacts, exceeding 1011Ω insulation resistance, and an external magnetic shield for superior reliability.
- Switching capabilities: Handling up to 100VAC/VDC making it suitable for various applications.
- Communication: An I2C interface with a selectable address for convenient integration within your I2C network.
- Enhanced control: A built-in reset feature allowing you to reset the relay state as needed.
- Clear visual feedback: Each relay incorporates a dedicated blue LED indicator, offering a straightforward visual representation of the relay's operational status.
APPLICATIONS:
- Achieve precise switching and monitoring of various components within an ATE system during automated testing procedures.
- Enhance instrumentation systems by providing precise, reliable load control with quick switching capabilities, ideal for accurate and efficient measurement and monitoring.
- Create high-density telecommunication interfaces and ensure reliable signal control.
EmbeddedWiki

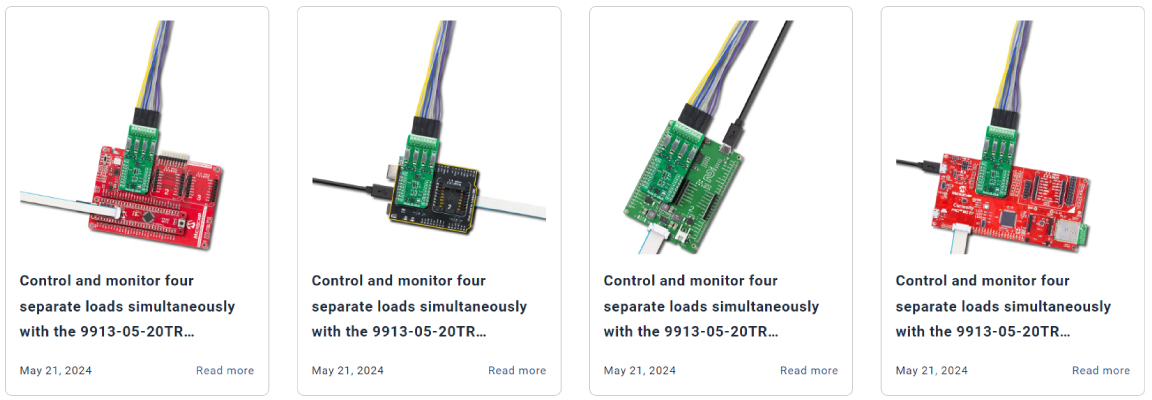

Find hundreds of ready-to-use embedded projects featuring this Click board™ on EmbeddedWiki! Jumpstart new designs and simplify your design cycle with by using world's largest embedded projects platform with 1M+ ready-to-use projects.
For more information about Relay 6 Click visit the official product page. Don't forget to come back tomorrow at 10 AM CET, and take a look at our next product release.
