Opto Encoder 5 Click featuring a Photologic® slotted optical switch

Published: 09/05/2024 | Post categories: Click boards, Product Announcement

| Views:1427

Opto Encoder 5 Click featuring a Photologic® slotted optical switch

Achieve high-precision, non-contact position or motion detection using an infrared light beam with the OPB666N


Opto Encoder 5 Click is a compact add-on board offering unparalleled accuracy and precision in non-contact switching applications. This board uses the high-performance OPB666N, a Photologic® slotted optical switch from TT Electronics, ensuring top-notch reliability

KEY FEATURES:


  • Non-contact switching: Enable wear-free and reliable operation compared to mechanical switches.

  • Integrated infrared LED and photodiode: Provides efficient light transmission and detection.

  • Linear amplifier and Schmitt trigger: Ensures clean and stable output signals.

  • NPN open-collector output: Offers flexibility for interfacing with different logic levels.

  • TTI/LSTTL Compatibility: Ensures integration with a wide range of microcontrollers.

  • Dual Voltage Support (3.3V and 5V): Expands compatibility with a broader range of projects.


APPLICATIONS:


  • Replacement for mechanical switches: Offers a longer lifespan and eliminates mechanical wear.
  • Speed indicator: Precisely measures rotational or linear speed of moving objects
  • Mechanical limit indicator: Detects the end of travel for actuators or motors.
  • Edge sensing: Provides accurate position detection in high-precision applications.


EmbeddedWiki:


Find hundreds of ready-to-use embedded projects featuring this Click board™ on EmbeddedWiki! Jumpstart new designs and simplify your design cycle with by using world's largest embedded projects platform with 1M+ ready-to-use projects.

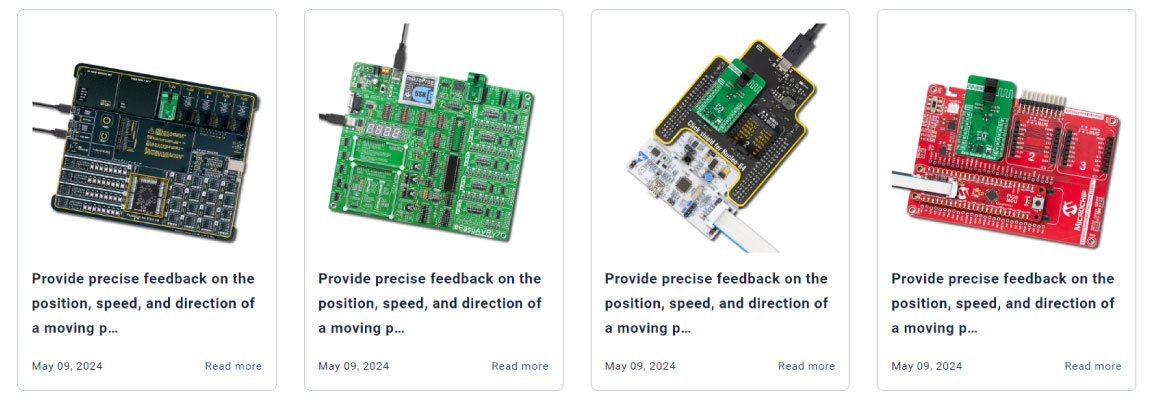

Hundreds of ready-for-use projects on EmbeddedWiki featuring Opto Encoder 5 Click

For more information about Opto Encoder 5 Click visit the official product page. Don't forget to come back tomorrow at 10 AM CET, and take a look at our next product release.
