Achieve high-precision weight measurement by amplifying and correcting signals from various weight sensors with the ZSC31050.
Load Cell 8 Click is a compact add-on board designed for creating precise weight scale solutions. This board features the ZSC31050, an advanced differential sensor signal conditioner from Renesas designed for high-precision signal conditioning in applications requiring detailed sensor-specific corrections.
KEY FEATURES:
- Advanced signal conditioning: Offers exceptional signal processing capabilities for detailed sensor-specific corrections. This translates to highly accurate measurements with minimal errors.
- Digital compensation: Experience superior performance with digital correction of sensor offset, sensitivity, temperature drift, and non-linearity.
- Broad signal range: Handles a wide range of signals, from 1mV/V to 275mV/V, ensuring compatibility with various sensors.
- Flexible communication: Standard I2C interface for seamless communication with your system
- Multiple output modes: Choose the most suitable output mode for your specific needs.
- Jumper configurability: Fine-tune the board's operation using jumpers for output signal routing, external reference voltage adjustments, and other functionalities.
- Dual voltage support (3.3V and 5V): Expands compatibility with a broader range of projects.
APPLICATIONS:
- Industrial process control systems: Ensure precise monitoring of weight and pressure in real-time for optimal production processes.
- Precision weighing equipment: Deliver highly accurate weight measurements for reliable results in laboratory and industrial settings.
- Medical devices: Enable accurate weight and force readings in medical equipment, improving patient care.
- Force measurement systems: Measure applied force for tasks requiring high precision.
- Torque measurement systems: Make accurate torque measurement in various applications, ensuring proper functioning of machinery.
- Position sensing: Achieve precise position detection in systems requiring detailed control.
EmbeddedWiki

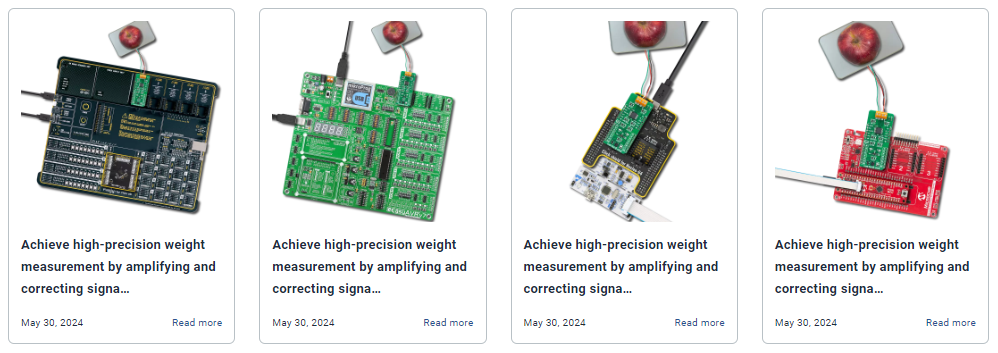

Find hundreds of ready-to-use embedded projects featuring this Click board™ on EmbeddedWiki! Jumpstart new designs and simplify your design cycle with by using world's largest embedded projects platform with 1M+ ready-to-use projects.
For more information about Load Cell 8 Click visit the official product page. Don't forget to come back tomorrow at 10 AM CET, and take a look at our next product release.
