See through anything up to 3mm with EE-SX1330 transmissive photomicrosensor
IR Eclipse 2 Click is a compact add-on board that detects objects' presence or absence using an infrared beam. This board features the EE-SX1330 photomicrosensor from OMRON that uses an infrared beam and a phototransistor to detect objects interrupting the beam.
KEY FEATURES:
- Photo interrupter ability for any application: Adds photo interrupter functionality to any application for object detection using an infrared beam.
- Up to 3mm detection space: Effectively detects objects up to 3mm in size. This is the distance between the photomicrosensor and phototransistor where an object can interrupt the infrared beam.
- Detection through digital signal: Provides a digital output for reliable object presence/absence detection. This simplifies integration with MCUs for easy data reading.
- Device enable feature: Enable or disable the sensor for power management. This allows you to conserve power when the object detection is not required.
- Object detection LED indicator: Built-in LED provides visual indication of object detection. This is helpful for debugging and monitoring the sensor's functionality during development.
- 3.3V and 5V MCUs compatibility: Compatible with a wide range of MCUs, offering greater flexibility in your project design.
APPLICATIONS:
- Achieve precise object detection for paper feeding or jam prevention.
- Ensure accurate line projection by detecting misalignment.
- Attain reliable presence or absence detection of any object within the 3mm range.
- Monitor movement of parts within a machine. Calculate rotation speed based on object interruptions.
EmbeddedWiki:

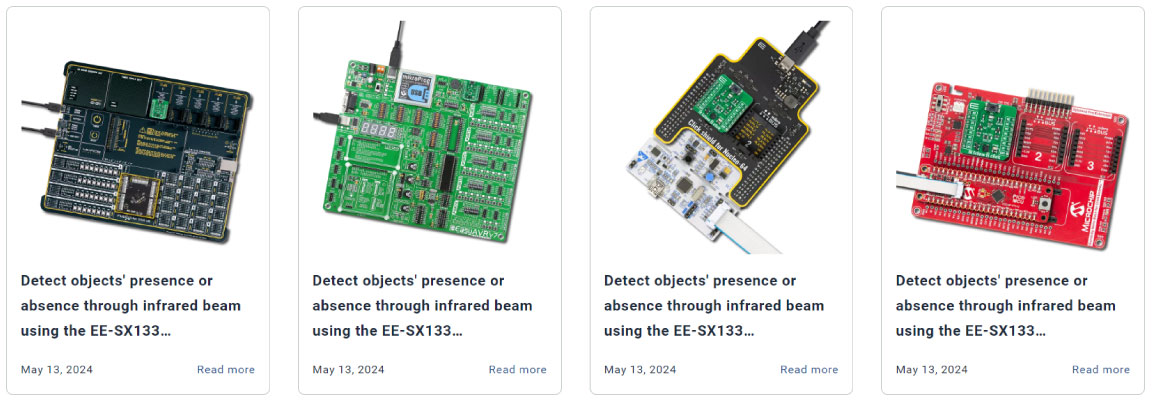

Find hundreds of ready-to-use embedded projects featuring this Click board™ on EmbeddedWiki! Jumpstart new designs and simplify your design cycle with by using world's largest embedded projects platform with 1M+ ready-to-use projects.
For more information about IR Eclipse 2 Click visit the official product page. Don't forget to come back tomorrow at 10 AM CET, and take a look at our next product release.
