Inclinometer 3 Click - digital 2-axis inclinometer based on capacitive 3D-MEMS technology

Published: 27/05/2024 | Post categories: Click boards

| Views:1368

Inclinometer 3 Click - digital 2-axis inclinometer based on capacitive 3D-MEMS technology

High-performance two-axis (XY) inclinometer based on the SCL3400-D01 for precise tilt and leveling measurement applications



Inclinometer 3 Click is a compact, reliable add-on board designed for precise tilt and leveling measurements. This board uses the Murata’s SCL3400-D01, a high-performance two-axis inclinometer sensor leveraging advanced 3D-MEMS capacitive technology.



KEY FEATURES:



  • High-precision 2-axis (XY) inclinometer: Measures tilt on both the X and Y axes with exceptional accuracy, ideal for precise level and orientation detection.
  • Advanced capacitive 3D-MEMS technology: Delivers reliable and stable tilt measurements even in harsh environments.
  • SPI serial interface: Easy integration with MCUs for real-time data acquisition.
  • Selectable measurement modes: Provides options for optimizing sensor performance based on specific application requirements.
  • Ultra-high resolution up to 32768LSB/g: Offers exceptional detail in tilt measurements, crucial for applications demanding the utmost precision.
  • Superior sensitivity and precision: Accurately detects even the slightest changes in tilt for reliable system operation.
  • Ultra-low noise density: Minimizes signal interference for clean and accurate tilt data.



APPLICATIONS:


  • Detect tiny movements in various objects, helping to identify potential problems early on.
  • Provide high-accuracy tilt data for IMUs, enabling precise orientation tracking in robots, drones, and navigation systems.
  • Ensure accurate platform leveling for various equipment, leading to improved positioning and guidance.


EmbeddedWiki


Find hundreds of ready-to-use embedded projects featuring this Click board™ on EmbeddedWiki! Jumpstart new designs and simplify your design cycle with by using world's largest embedded projects platform with 1M+ ready-to-use projects.

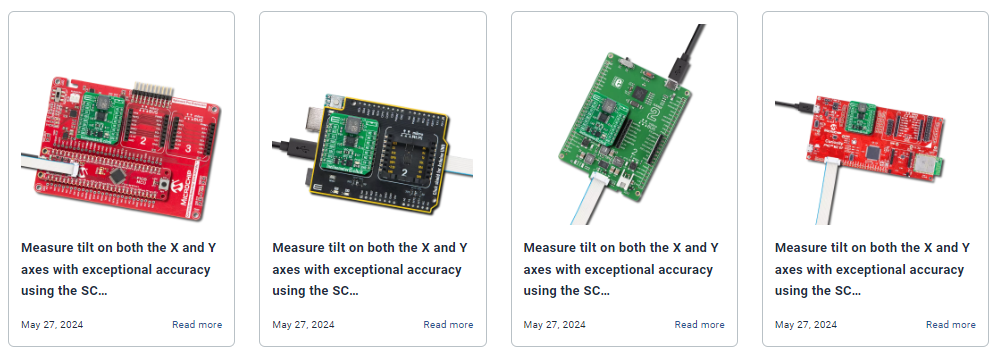

Hundreds of ready-for-use-projects on EmbeddedWiki with inclinometer 3 Click


For more information about Inclinometer 3 Click visit the official product page. Don't forget to come back tomorrow at 10 AM CET, and take a look at our next product release.
