I2C 1-Wire 2 Click - advanced 1-Wire master with EEPROM memory

Enhance industrial device communication with the DS2485-powered I2C 1-Wire 2 Click board™



I2C 1-Wire 2 Click is a compact add-on board that simplifies communication between I2C master devices and 1-Wire slave devices in industrial settings. This board features the DS2485, an advanced 1-Wire master with memory from Analog Devices and bridges the gap between these two popular protocols, making complex communication protocols easy to manage.



KEY FEATURES:



  • Protocol bridging: Convert I2C master interfaces to communicate with 1-Wire slave devices.
  • Speed versatility: Supports both standard and overdrive 1-Wire communication speeds, ensuring compatibility with various devices and optimizing data transfer based on your application's needs.
  • Signal control: Adjustable internal timers for 1-Wire signal management.
  • Adaptable power configuration: Flexible 1-Wire line pull-up options, providing optimal power delivery for diverse applications.
  • Enhanced functionality with onboard memory: The integrated 0.75Kb EEPROM offers user-programmable memory, enabling you to store custom data or configuration settings.
  • Independent GPIO control: Independently operated GPIO pin providing additional functionality for interfacing with other devices or sensors in your project.



APPLICATIONS:

  • Simplify data collection and communication between industrial sensors and tools with the 1-Wire protocol.
  • Establish communication with single-use consumables equipped with 1-Wire interfaces, streamlining data exchange for monitoring or identification purposes.
  • Identify and manage printer cartridges with 1-Wire technology.


EmbeddedWiki



Find hundreds of ready-to-use embedded projects featuring this Click board™ on EmbeddedWiki! Jumpstart new designs and simplify your design cycle with by using world's largest embedded projects platform with 1M+ ready-to-use projects.

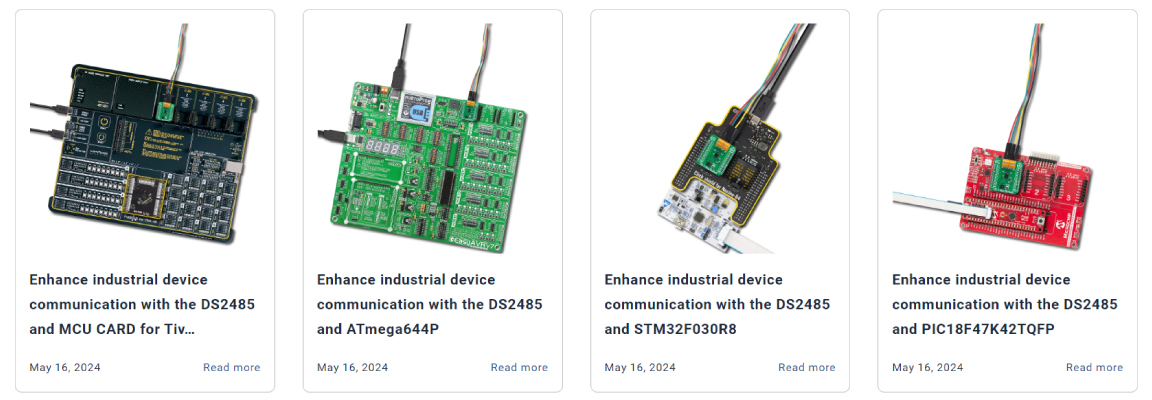

Hundreds of ready-to-use projects with I2C 1-Wire 2 Click board on EmbeddedWiki


For more information about I2C 1-Wire 2 Click visit the official product page. Don't forget to come back tomorrow at 10 AM CET, and take a look at our next product release.
