Provide power management insights of current, voltage, power, and temperature using the TSC1641
Current 12 Click is a compact add-on board designed for precise monitoring of current, voltage, power, and temperature. This board features the TSC1641, a 60V 16-bit power monitor with an I2C interface from STMicroelectronics, suitable for various applications requiring meticulous power management.
KEY FEATURES:
- High-precision power monitoring: Deliver measurements of current, voltage, power, and temperature, ensuring accurate power management in your projects.
- Versatile current measurement: Establish high-side, low-side, and bidirectional current measurements, providing valuable insights into your system's current flow.
- Wide voltage range: With a voltage tolerance of up to 60V, this board is compatible with a broad range of applications, making it a suitable choice for various power systems.
- Adjustable conversion time: Adjustable conversion time ranging from 128 microseconds (µs) to 32.7 milliseconds (ms), allowing to optimize data acquisition based on your specific needs, balancing speed and precision.
- I2C communication with selectable address: Uses 2-wire I2C interface for communication with the host system, ensuring smooth data transfer, alongside a selectable I2C address.
- Real-time alerts: Set thresholds for voltage, current, power, and temperature that triggers alerts whenever critical values are reached, allowing for proactive monitoring and preventing potential damage.
APPLICATIONS:
- Ensure optimal performance and longevity of industrial battery packs by precisely monitoring voltage, current, temperature, and power.
- Allow for efficient power conversion in inverters by providing accurate measurements of input and output current, voltage, and power.
- Achieve precise regulation and monitoring of voltage, current, and power in DC power supplies, ensuring stable and reliable power delivery.
- Maintain optimal power efficiency in data centers and prevent thermal issues by monitoring power consumption across critical equipment.
- Safeguard the smooth operation of telecom equipment by enabling close observation of voltage, current, power, and temperature levels.
- Enhance power tool safety and performance by providing real-time insights into current draw, voltage, power output, and temperature.
EmbeddedWiki

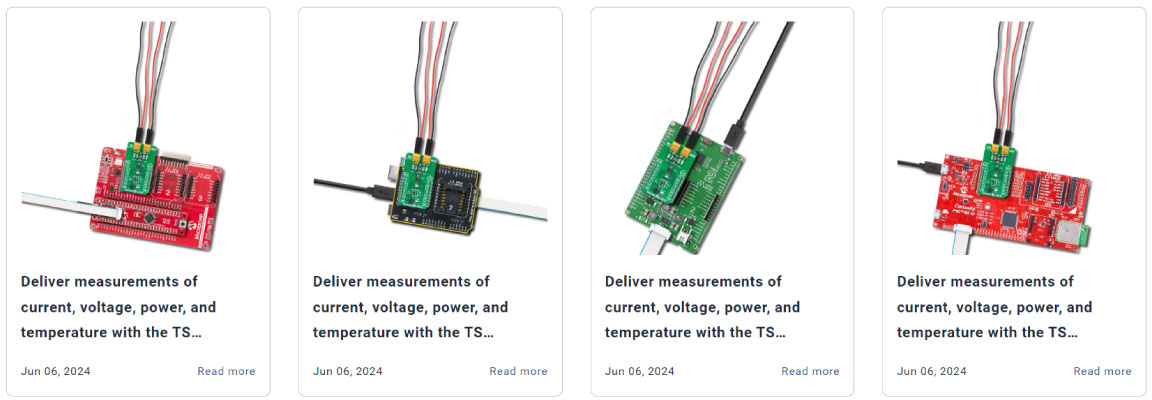

Find hundreds of ready-to-use embedded projects featuring this Click board™ on EmbeddedWiki! Jumpstart new designs and simplify your design cycle with by using world's largest embedded projects platform with 1M+ ready-to-use projects.
For more information about Current 12 Click visit the official product page. Don't forget to come back tomorrow at 10 AM CET, and take a look at our next product release.
