Cooler Click - compact cooling solution for managing heat in electronic systems

Published: 07/05/2024 | Post categories: Click boards

| Views:1252

Cooler Click - compact cooling solution for managing heat in electronic systems

Achieve optimal heat management of electronic systems based on the DRV8213 motor driver and MF25060V2-1000U-A99 cooling fan



Cooler Click is a compact add-on board based on the DRV8213 brushless DC motor driver from Texas Instruments, ensuring top-notch performance. Besides DRV8213, this solution also integrates a TMP007 temperature sensor and an MF25060V2-1000U-A99 cooling fan, offering a complete, ready-to-use cooling system on a single, compact board.



KEY FEATURES:



  • Complete cooling solution: Integration of a brushless DC motor driver, temperature sensor, and cooling fan for a compact and ready-to-use system.
  • PWM driver control: Fine-tune cooling performance with adjustable pulse width modulation (PWM) frequency ranging from 0 to 100kHz.
  • Auto-Sleep mode: Save energy by automatically putting the fan into sleep mode when pre-set temperature conditions are met.
  • Advanced protection features: Built-in safeguards like undervoltage lockout, overcurrent protection, and overtemperature shutdown ensure safe operation.
  • Alert interrupt: Receive real-time notifications of critical temperature changes or system faults through an interrupt signal.



APPLICATIONS:


  • Maintain optimal temperatures in your server racks for smooth operation and extended equipment lifespan.
  • Ensure consistent cooling for reliable performance in compact embedded system designs.
  • Keep your gaming console cool and prevent overheating during intense gaming sessions. Manage heat in space-constrained automotive electronics.
  • Maintain consistent temperatures for sensitive medical equipment, ensuring reliable operation.


EmbeddedWiki:

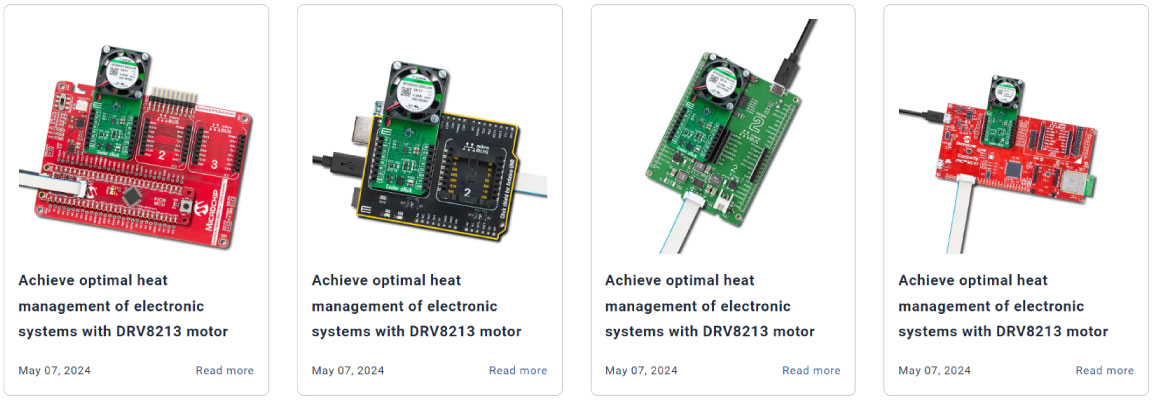

Find hundreds of ready-to-use embedded projects featuring this Click board™ on EmbeddedWiki! Jumpstart new designs and simplify your design cycle with by using world's largest embedded projects platform with 1M+ ready-to-use projects.


For more information about Cooler Click visit the official product page. Don't forget to come back tomorrow at 10 AM CET, and take a look at our next product release.
