2Pin ST Connector (DG500-5.08) is a PCB terminal block from Degson that provides connections for high current conductor cross-section with the proven clamping-yoke connection in 5.08 mm pitch and 90° conductor outlet direction. It can withstand current and voltage ratings up to 20A and 300VAC, ensuring reliability in power delivery applications. Based on their compact design and dimensions, 10x5.08x14 millimeters (L x W x H), these connectors are most often used for electronic power supply in industrial or custom electronics applications.
This product is no longer in stock

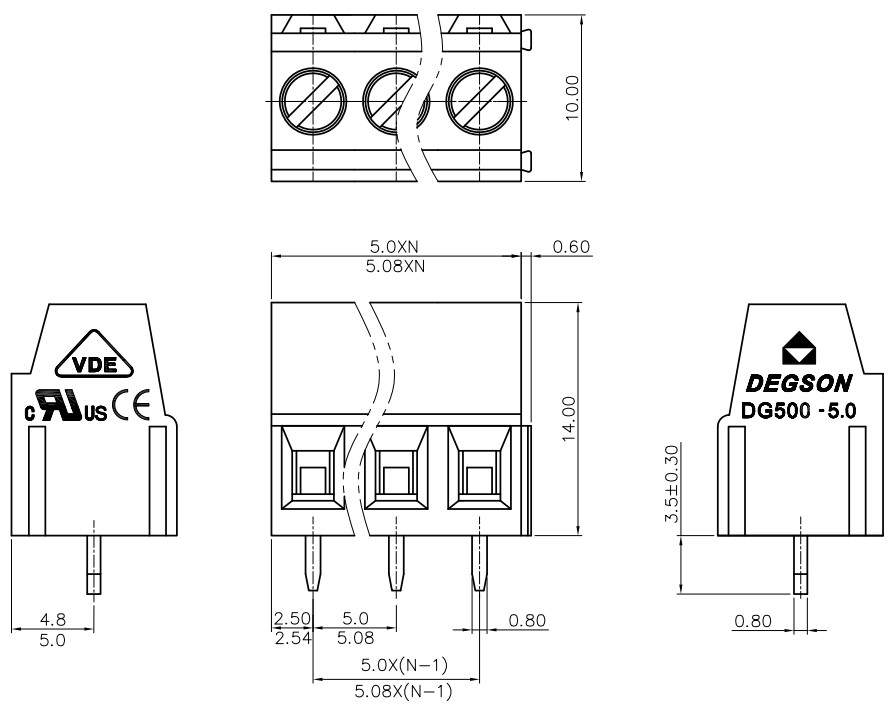

2Pin ST Connector (DG500-5.08), also known as a PCB terminal block, is a screw terminal component providing a connection for a high current conductor cross-section with a well-known connection principle (clamping-yoke). The DG500-5.08 comes in a 10x5.08x14 millimeters (L x W x H) and 5.08mm pitch package allowing the connection of two conductors. It provides high reliability in power delivery applications withstanding current and voltage ratings up to 20A and 300VAC. Its angled connection enables multi-row arrangement on the PCB. It also has an integrated protective guide that prevents incorrect insertion of the conductor underneath the tension sleeve, providing reliable and flexible transmission for different devices suitable for various industrial or custom electronics applications.
|Connector Type||Screw terminal|
|Screw Type||Slotted Head Screw|
|Current Rating||20A max|
|Voltage Rating||300V max|
|Mounting Style||Straight pin|
|Number of Rows||1|
|Number of Pins per Row||2|
