1x8 Stacking Header (2pcs) is an 8-position 2.54mm pitch single-row stackable female header that connects perfectly with most 8-pin male headers. It comes in a package of 2, where each header can withstand current ratings up to 3A and has a maximum contact resistance of 30mΩ. Based on their dimensions of 21x2.54x8 millimeters (L x W x H) and 11mm long flat male pins, these headers are designed to be soldered into a PCB with the pins extending through the PCB for mating with another header like this below it.
NOTE: This header can also be found on numerous Click boards™, such as USB to I2C Click, LBAND RTK Click, LP WiFi Click, and also on various adapters such as Click Shields.
This product is no longer in stock

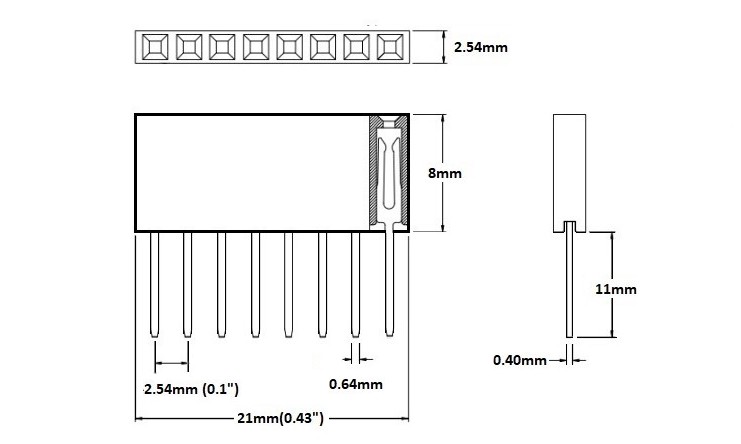

1x8 Stacking Header (2pcs) is a standard 1×8 single-row 2.54mm spaced pins stackable female header that can be through-hole mounted. This product comes in a package of 2, where each header has a maximum contact resistance of 30mΩ and can withstand a current of 3A. This header has a dimension of 21x2.54x8 millimeters (L x W x H) and 11mm long flat male pins that connect perfectly with most 8-pin male headers with a standard pin length of approximately 6mm long. These headers allow two or more PCBs to be stacked on top of each other providing vertical electrical connections between the assemblies.
|Connector Type:||Female Stacking|
|Number of Pins:||8|
|Number of Row:||Single|
|Mounting Style:||Through Hole|
|Contact Resistance:||Max. 30mΩ|
|Dimension (L x W x H):||21 x 2.54 x 8mm|
