TFT Board 7 Resistive
View larger
TFT Board 7 Resistive

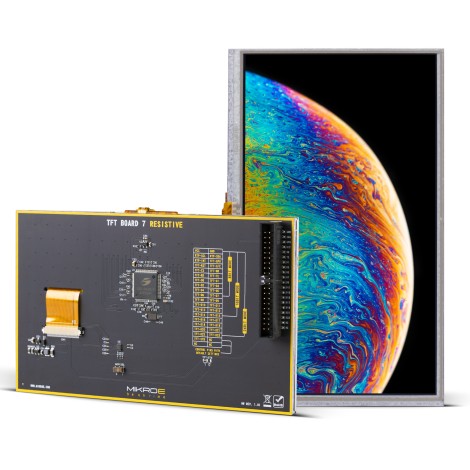

TFT Board 7 Resistive is a 7" display board which features the standardized 2x20-pin display connector. The display board also integrates a resistive touch panel. The TFT display module supports up to 24-bit pixel format (RGB: 888) and resolution of 800 x 480 pixels. It features an excellent contrast ratio and uniform brightness. TFT Board 7 Resistive, along with other displays from the TFT Board Resistive line of products, is supported by VisualTFT, a software tool for simplified development of visually oriented embedded applications.
Type
Discon,TFT
Display size
7"
Graphic controller
SSD1963
Touch Screen
Resistive
Interface
I2C,Parallel 24-bit
Active area (mm)
153.60 x 86.64
Input Voltage
3.3V
Downloads
OFF
TFT Board 7 Resistive
PID: MIKROE-3793
Weight: 500 g
