TFT Board 4 Capacitive
View larger
TFT Board 4 Capacitive

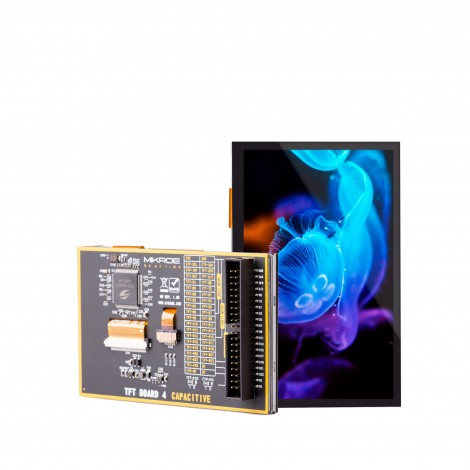

TFT Board 4 Capacitive is a 4.3" display board which features the standardized 2x20-pin display connector. The display board also integrates a capacitive multitouch panel with swipe and zoom gesture support.
The TFT display module supports up to 24-bit pixel format (RGB: 888), allowing a true-color palette of 16,7 million colors, and resolution of 480 x 272 pixels. It features an excellent contrast ratio and uniform brightness. TFT Board 4 Capacitive, along with other displays from the TFT Board Capacitive line of products, is supported by VisualTFT, a software tool for simplified development of visually oriented embedded applications.
Type
Discon,TFT
Display size
4.3"
Graphic controller
SSD1963
Touch Screen
Capacitive
Interface
I2C,Parallel 24-bit
Active area (mm)
95.04 x 53.86
Input Voltage
3.3V
OFF
TFT Board 4 Capacitive
PID: MIKROE-3508
Weight: 500 g
