dsPIC-Ready1 Board

dsPIC-Ready1 Board
Bookmark and Share

Note: dsPIC MCU and dsPICprog programmer are not included in the price!

Overview

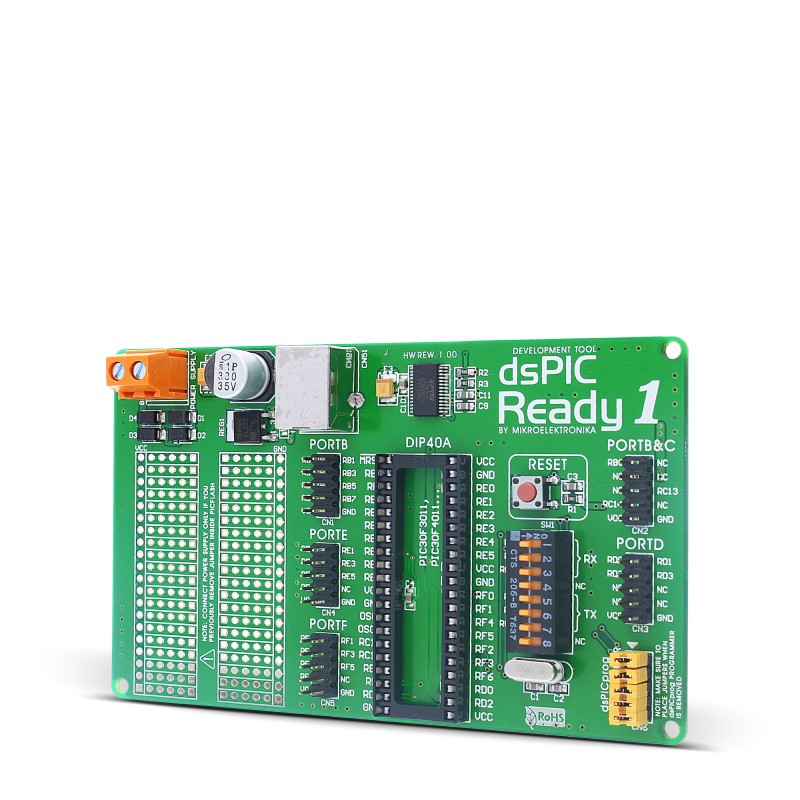

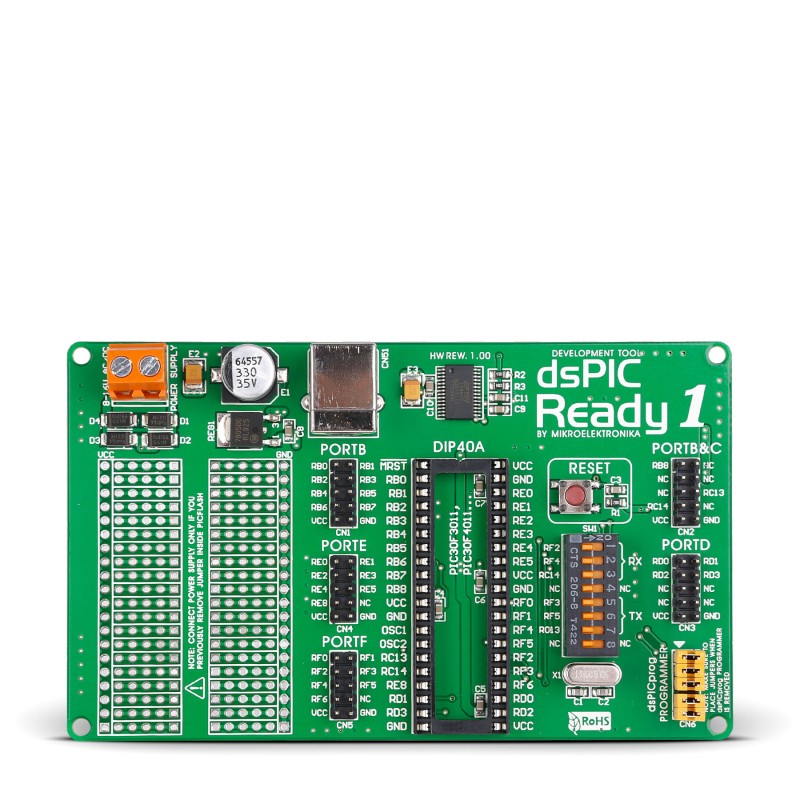

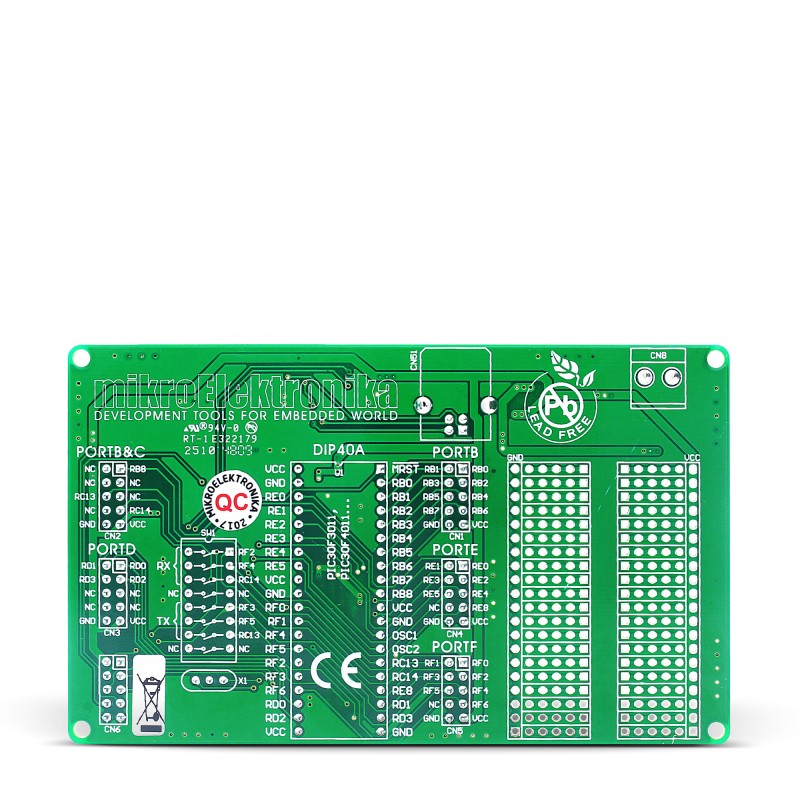

dsPIC-Ready1 Board

A USB supported prototype board for 40-pin dsPIC30F MCUs with IDC10 extension.

Power Supply Selectable

The board is powered by an external 8-16V AC/DC power supply connected via on-board connector.

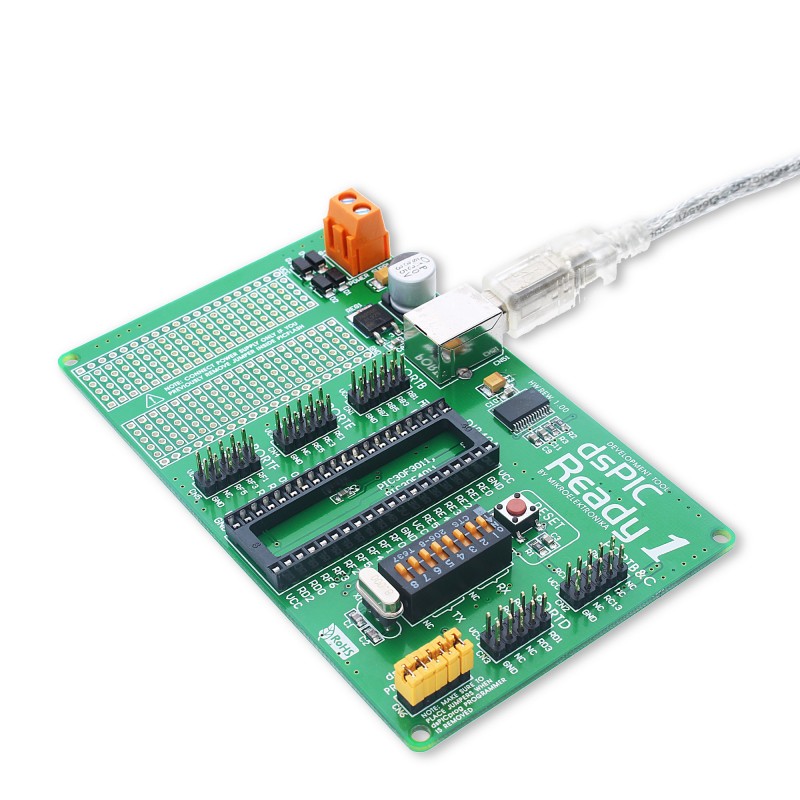

FTDI Supported

On-board USB to serial UART interface FT232R that can be easily connected to a PC.

Description

dsPIC-Ready1 Board provides the best solution for fast and simple development of 40-pin dsPIC30F microcontroller applications (dsPIC30F3011 and dsPIC30F4011). It includes connectors for connecting the dsPICprog with mikroICD in-system stand-alone programmer. These connectors enable you to program microcontrollers without any other additional devices. There are also IDC10 connectors linked to the microcontroller pins provided on the board. They enable many peripheral modules to be connected to the board, so you can quickly assemble functional working environment that perfectly suits your needs.

dsPIC-REady1 Board features a USB to serial UART interface FT232R which simplifies USB to serial designs and reduces external component count by integrating an external EEPROM, USB termination resistors and a clock circuit requiring no external crystal into the device.

Accessory Boards

Accessory Boards were designed to allow students or engineers to easily exercise and explore the capabilities of the various microcontrollers with peripheral devices such as: ADC, DAC, CAN, Ethernet, IrDA, MP3, RS485 and many more. Click on the image below to find accessory boards that suits your needs. Note: Accessory Boards are sold separately.

Accessory Boards

2Checkout.com - Secure Online Payments

Secure online payments provided by 2Checkout.com, Inc. All credit card and personal details are kept secure, and our customer list is not disclosed to any third party.

We deliver our products to all countries in the world using following shipping options:

DHL Express Delivery

DHL Express: $25.00 USD for up to 5 Kgs, usually arrives in 2-4 business days.

Post Office Delivery

Post Office $25.00 USD, no weight limit, usually arrives in 7-12 business days.

Note: Please contact local office of the chosen courier about delivery service and possible additional charges.

CUSTOMIZATION: We can modify our products to suit your requirements, click here for details.

MIKROE-449

dsPIC-Ready1 Board

$29.00 USD
