CAPACITIVE FPI with frame
Front Panel Integration
Mikromedia 7 CAPACITIVE FPI is not limited to multimedia-based applications only. USB, Ethernet, WiFi and RF connectivity options, digital motion sensor, battery charging functionality, piezo-buzzer, SD card reader, RTC, and much more expands its use beyond the multimedia.
Mikromedia 7 CAPACITIVE FPI features mikroBUS™ Shuttle connector, a brand-new addition to the mikroBUS™ standard in the form of a 2x8-pin IDC header with 1.27mm (50mil) pitch. mikroBUS™ Shuttle extension board is an add-on board equipped with the conventional mikroBUS™ socket, which ensures compatibility with 700+ Click boards™.
Mikromedia 7 CAPACITIVE FPI is a compact development board designed as a complete solution for the rapid development of multimedia and GUI-centric applications. By featuring a large 7" TFT display with capacitive touch screen driven by the powerful graphics controller that can display the 24-bit color palette (16.7 million colors), along with a DSP-powered embedded sound CODEC IC, represents a perfect solution for any type of multimedia application.
Mikromedia 7 CAPACITIVE FPI ( FPI stands for Front Panel Integration) is designed as the complete solution which can be implemented directly into any project, with no additional hardware modifications required. Bord has a TFT display with a metal frame, and four corner mounting holes that enable simple installation in various kinds of industrial appliances. Also, this product can be easily built-in using various methods without it impacting its overall performance abilities.
Mikromedia 7 CAPACITIVE FPI requires the use of an external programmer and debugger, preferably CODEGRIP or mikroProg. The installed MCU Card can be programmed and debugged over the JTAG/SWD compatible 2x5 pin header, labeled as PROG/DEBUG.
The MCU Card standard makes it possible to use MCUs regardless of their vendor. One MCU card standard supports multiple architectures ARM, PIC32, dsPIC, PIC from different vendors: Microchip, ST, NXP, TI. Support for even more vendors is coming!
The MCU card has standardized dimensions that can support large number of pin varieties for specific hardware requirement. Such a modular approach allows flexibility in selecting the MCU type, regardless of the pin number or the specific hardware requirements.
The new MCU card standard allows to use different microcontrollers on the same board.
The new MCU card standard allows to use different microcontrollers on the same board. Go to the bottom of this page to choose at least one MCU card to enable the mikromedia 7 CAPACITIVE FPI with frame to show its features in full effect.
A very popular WiFi module labeled as CC3100 enables WiFi connectivity. This module is the complete WiFi solution on a chip: it is a powerful WiFi network processor with the power management subsystem, offering the TCP/IP stack, powerful crypto engine with 256-bit AES support, WPA2 security, SmartConfig™ technology, and much more.
Resource-demanding and complex audio processing tasks can be offloaded from the host MCU by utilizing a dedicated audio CODEC IC, labeled as VS1053B. This IC supports many different audio formats, commonly found on various digital audio devices
The host MCU can be programmed and debugged over the JTAG/SWD compatible
2x5-pin header. A high-precision buffered voltage reference from Microchip is used to provide a very precise voltage reference with no drift, when required.
The FXOS8700CQ, an advanced integrated 3-axis accelerometer and 3-axis magnetometer can detect many different motion-related events.
A high-quality 7" TFT true-color display with a capacitive touch panel is the most distinctive feature of the Mikromedia 7. The display has a resolution of 800 by 480 pixels, and it can display up to 16.7M of colors (24-bit color depth). The display module is controlled by the SSD1963 graphics driver IC from Solomon Systech. This is a powerful graphics coprocessor, equipped with 1215KB of frame buffer memory. It also includes some advanced features such as the hardware accelerated display rotation, display mirroring, hardware windowing, dynamic backlight control, programmable color and brightness control, and more.
The Power Supply Unit (PSU) provides a clean and regulated power, necessary for a proper operation of the mikromedia 7 development board. It is equipped with four different power supply inputs, offering all the flexibility that mikromedia 7 needs, especially when used on the field or as an integrated element of a larger system. In the case when multiple power sources are used, an automatic power switching circuit with predefined priorities ensures that the most appropriate will be used.
The microSD card slot allows storing large amounts of data externally, on a microSD memory card. The microSD card detection circuit is also provided on the board.
Ethernet physical layer is provided by the LAN8720A, an RMII 10/100 Ethernet PHY IC from Microchip. This IC has many useful features, including flexPWR® technology with a flexible power management architecture and a support for various low-power modes, compliance with ISO 802-3/IEEE and IEEE802.3/802.3u frame formats, loop-back modes support, auto-negotiation, automatic polarity detection and correction, and so on.
The host MCU is equipped with the USB peripheral module, allowing simple USB connectivity.
The RTC peripheral utilizes a separate power supply source, typically a battery. To allow continuous tracking of time, mikromedia 7 is equipped with a button cell battery that maintains RTC functionality even if the main power supply is off.

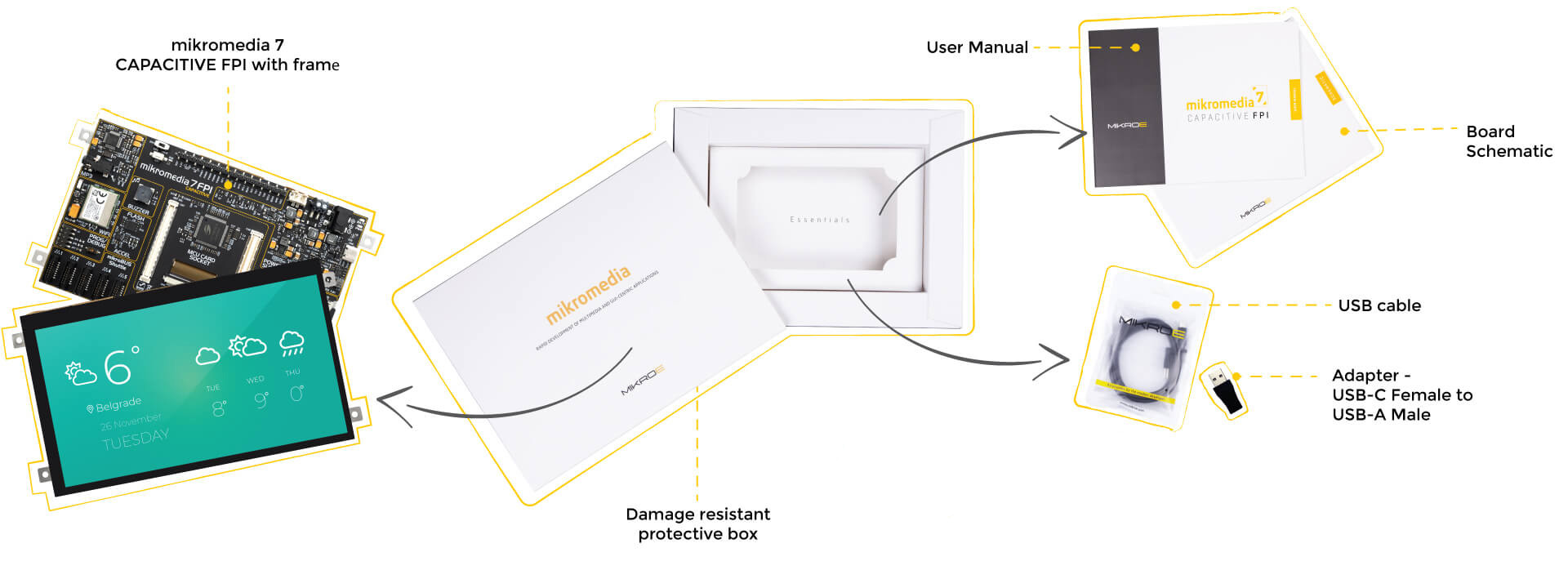

The package contains:
You have to choose one MCU card
